DAXLAN-2000BA0C0000V01 Linear encoders

BRAND: SICK
SKU: 1140966
$1,894.00 List price: $2,380.50
+ −
30 Days Return Electricians Unlock Trade Access

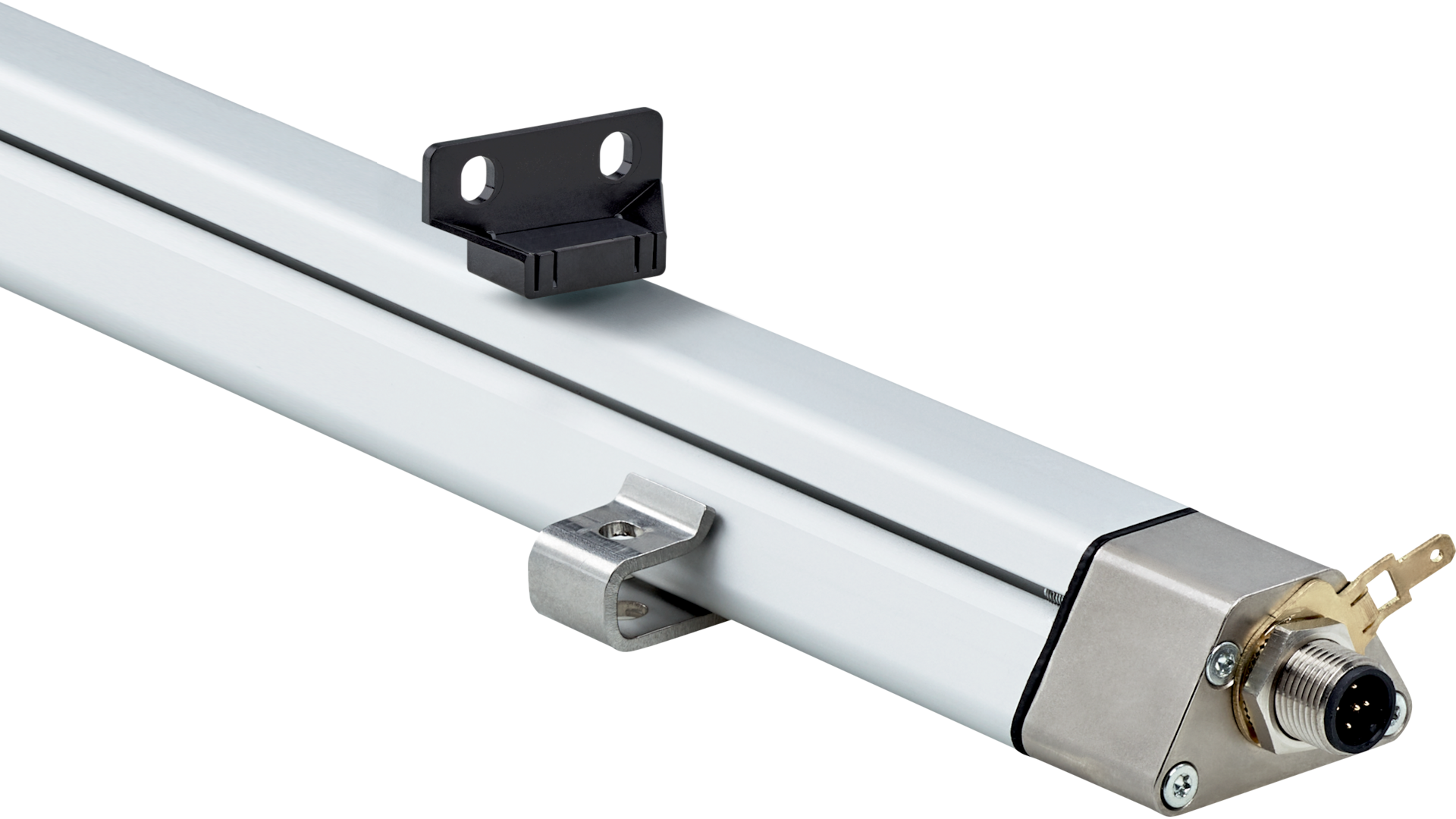

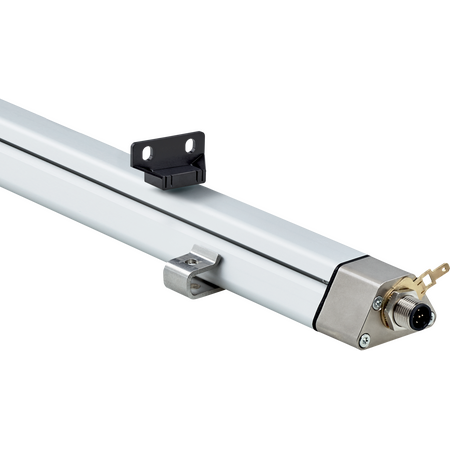

The SICK DAXLAN-2000BA0C0000V01 linear encoder offers precise position measurement with high repeatability and robust design

Product Name/Title: DAXLAN-2000BA0C0000V01 | Linear encoders

Brand: SICK

SKU: 1140966

Alternatively Known As: Linear position sensor, linear measurement encoder, analog linear encoder, industrial linear encoder

Technical Specifications
  • Linearity: ≤ 0.03% F.S. (minimum 90 µm)
  • Repeatability: ≤ ± 20 µm
  • Measuring range: 0 mm to 2000 mm
  • Null zone: 55 mm
  • Damping zone: 63 mm
  • Output signal: 4 mA to 20 mA analog current
  • Load resistance: 100 Ω to 500 Ω
  • Communication interface: Analog current
  • Connection type: Male connector, M12, 8-pin, A-coded
  • Supply voltage: 24 V DC (± 20%)
  • Current consumption: 50 to 100 mA
  • Reverse polarity protection: Up to −30 V DC
  • Over voltage protection: ≤ 36 V DC
  • Residual ripple: ≤ 0.28 V pp
  • Dielectric strength: 500 V DC against housing
  • Mechanical design: DAX Low Profile
  • Housing material: Anodised aluminum, zinc, stainless steel, brass
  • Mounting bracket: Stainless steel 1.4301
  • Operating temperature range: –40 °C to +85 °C
  • Storage temperature range: –40 °C to +85 °C
  • Permissible relative humidity: 90% (no condensation)
  • Shock resistance: 100 g, 6 ms
  • Vibration resistance: 8 g, 10 to 2000 Hz
  • Dimensions (H x L x W): 20mm x 2000mm x 40mm
  • Weight: 0.5 kg
Key Features
  • High linearity with ≤ 0.03% F.S. (minimum 90 µm)
  • Repeatability of ≤ ± 20 µm
  • Measuring range up to 2000 mm
  • Analog current output signal 4 mA to 20 mA
  • Robust mechanical design with anodised aluminum housing and stainless steel mounting bracket
  • Wide operating temperature range from –40 °C to +85 °C
  • IP65 / IP67 rated enclosure for dust and water protection
  • Resistance to shocks up to 100 g and vibration up to 8 g
  • Supply voltage 24 V DC with reverse polarity and over voltage protection
Professional Installation Requirements
  • Installation should be performed by qualified personnel familiar with industrial sensor mounting and electrical connections to ensure proper alignment and signal integrity.
Applications
  • Industrial automation for precise positioning
  • Machine tool feedback systems
  • Robotics and assembly lines
  • Measurement and control systems requiring linear position feedback
Standards & Compliance
  • AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Durable design reduces need for frequent replacements, minimizing waste
  • Energy-efficient operation with low current consumption
  • Complies with China RoHS for hazardous substance restrictions
Warranty Information

Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.

Available Now

The SICK DAXLAN-2000BA0C0000V01 linear encoder is available for immediate purchase, ideal for industrial automation and precision measurement applications.
