DAXLAN-2100BA0C0000V01 | Linear encoders

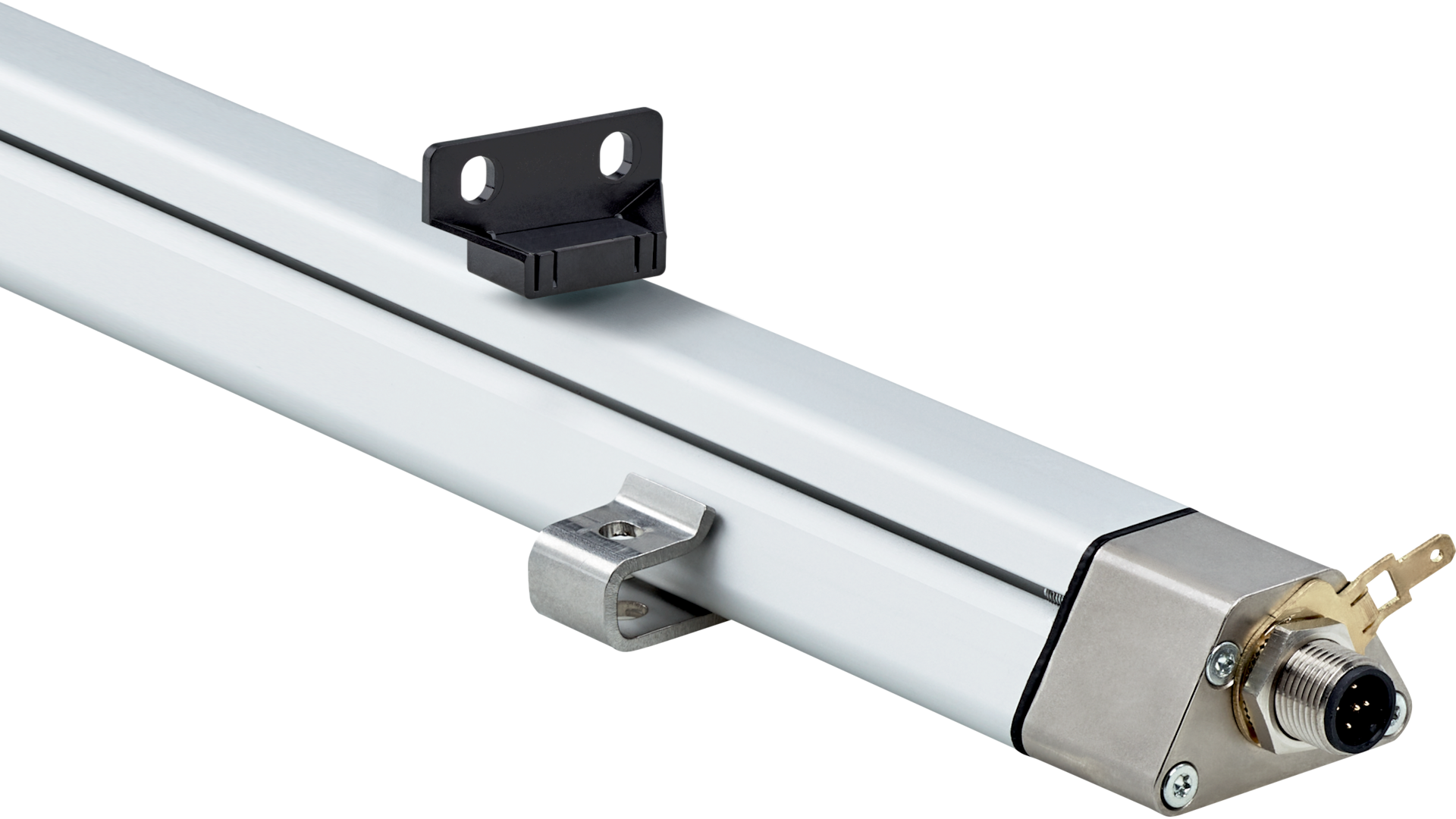

The SICK DAXLAN-2100BA0C0000V01 linear encoder offers precise position measurement with high repeatability and robust design, suitable for demanding industrial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: DAXLAN-2100BA0C0000V01 | Linear encoders
Brand: SICK
SKU: 1140967
Alternatively Known As: Linear position sensor, linear measurement encoder, analog linear encoder, industrial linear encoder
Technical Specifications
- Linearity: ≤ 0.03% F.S. (Minimum 90 µm)
- Repeatability: ≤ ± 20 µm
- Measuring range: 0 mm to 2100 mm
- Null zone: 55 mm
- Damping zone: 63 mm
- Magnet shape: Small block magnet (1 piece)
- Measuring frequency (internal): < 2 ms
- Communication interface: Analog current output (4 mA to 20 mA)
- Load resistance: 100 Ω to 500 Ω
- Connection type: Male connector, M12, 8-pin, A-coded
- Supply voltage: 24 V DC (± 20%)
- Current consumption: 50 to 100 mA
- Reverse polarity protection: Up to -30 V DC
- Residual ripple: ≤ 0.28 V pp
- Dielectric strength: 500 V DC against housing
- Over voltage protection: ≤ 36 V DC
- Mechanical design: DAX Low Profile
- Housing material: Anodised aluminum, zinc, stainless steel, brass
- Mounting bracket: Stainless steel 1.4301
- EMC: According to EN 61000-6-2 and EN 61000-6-4
- Enclosure rating: IP65 / IP67
- Operating temperature range: -40 °C to +85 °C
- Storage temperature range: -40 °C to +85 °C
- Permissible relative humidity: 90% (no condensation)
- Shock resistance: 100 g, 6 ms (IEC 60068-2-27)
- Vibration resistance: 8 g / 10 to 2000 Hz (IEC 60068-2-6)
- Dimensions (H x L x W): 15mm x 2100mm x 30mm
- Weight: 0.5 kg
Key Features
- High linearity with ≤ 0.03% F.S. (Minimum 90 µm)
- Repeatability of ≤ ± 20 µm
- Measuring range up to 2100 mm
- Analog current output signal 4 mA to 20 mA
- Robust mechanical design with anodised aluminum housing and stainless steel mounting bracket
- Wide operating temperature range from -40 °C to +85 °C
- IP65 / IP67 rated enclosure for dust and water protection
- Resistance to shocks up to 100 g and vibration up to 8 g
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and calibration.
Applications
- Position measurement in industrial automation
- Precision linear positioning systems
- Machine tool feedback
- Robotics and assembly lines
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable construction reduces need for frequent replacements
- Low power consumption with 24 V DC supply and efficient electronics
- Compliance with China RoHS ensures reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK DAXLAN-2100BA0C0000V01 linear encoder is available for immediate purchase, ideal for industrial automation and precision positioning applications.
