DAXLON-0125B2080001700 Linear encoders

BRAND: SICK
SKU: 1139767
$1,653.60 List price: $2,078.40
+ −
30 Days Return Electricians Unlock Trade Access

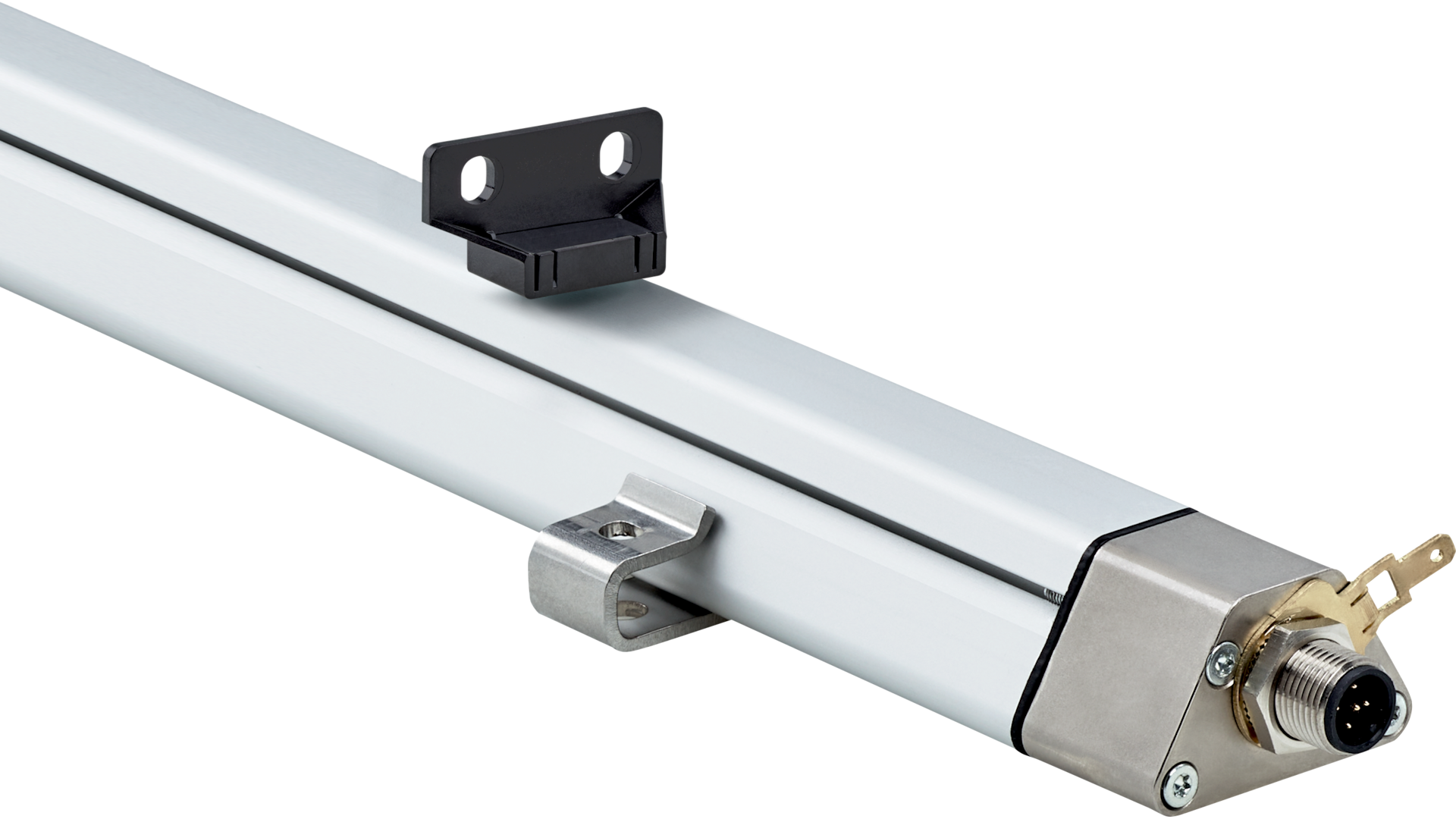

The SICK DAXLON-0125B2080001700 linear encoder offers precise position and speed measurement with robust design, CANopen interface

Product Name/Title: DAXLON-0125B2080001700 | Linear encoders

Brand: SICK

SKU: 1139767

Alternatively Known As: Linear position sensor, linear measurement encoder, CANopen linear encoder, industrial linear encoder

Technical Specifications
  • Linearity: ≤ 0.03% F.S. (Minimum 150 µm)
  • Repeatability: ≤ ± 50 µm
  • Measuring range: 0 mm to 125 mm
  • Null zone: 55 mm
  • Damping zone: 63 mm
  • Resolution: 50 µm
  • Cycle time: 1 ms
  • Communication interface: CANopen
  • Data transmission rate: 125 kbit/s
  • Node ID: 7Fh (127)
  • Connection type: Male connector, M12, 5-pin, A-coded
  • Supply voltage: 24 V DC (± 20%)
  • Reverse polarity protection: Up to −30 V DC
  • Residual ripple: ≤ 0.28 V pp
  • Dielectric strength: 500 V DC, 0 V against housing
  • Over voltage protection: ≤ 36 V DC
  • Mechanical design: DAX Low Profile
  • Housing material: Anodised aluminum, zinc, stainless steel, brass
  • Mounting bracket: Stainless steel 1.4301
  • Enclosure rating: IP65 / IP67
  • Operating temperature range: –40 °C to +85 °C
  • Storage temperature range: –40 °C to +85 °C
  • Permissible relative humidity: 90% (no condensation)
  • Shock resistance: 100 g, 6 ms (IEC 60068-2-27)
  • Vibration resistance: 8 g / 10–2000 Hz (IEC 60068-2-6)
  • Dimensions (H x L x W): 20mm x 125mm x 50mm
  • Weight: 0.5 kg
Key Features
  • High linearity with ≤ 0.03% F.S. and minimum 150 µm
  • Repeatability of ≤ ± 50 µm
  • Measuring range of 0 mm to 125 mm
  • Resolution of 50 µm with 1 ms cycle time
  • Robust mechanical design with anodised aluminum housing and stainless steel mounting bracket
  • IP65 / IP67 rated enclosure for harsh environments
  • Wide operating temperature range from –40 °C to +85 °C
  • CANopen communication interface with data protocol CiA DS-301 V4.02 and encoder profile CIA DS-406 V3.2
  • Over voltage and reverse polarity protection
  • High resistance to shocks (100 g, 6 ms) and vibration (8 g, 10–2000 Hz)
Professional Installation Requirements
  • Installation by qualified personnel is recommended to ensure proper mounting, electrical connection, and configuration of the CANopen interface.
Applications
  • Industrial automation for precise positioning and speed measurement
  • Machine tool feedback systems
  • Robotics and motion control
  • Quality control and inspection systems
Standards & Compliance
  • AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Durable construction reduces replacement frequency and waste
  • Energy-efficient electronics minimize power consumption
  • Compliance with China RoHS ensures reduced hazardous substances
Warranty Information

Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.

Available Now

The SICK DAXLON-0125B2080001700 linear encoder is available for immediate purchase. Ideal for industrial automation and precise position measurement applications.
