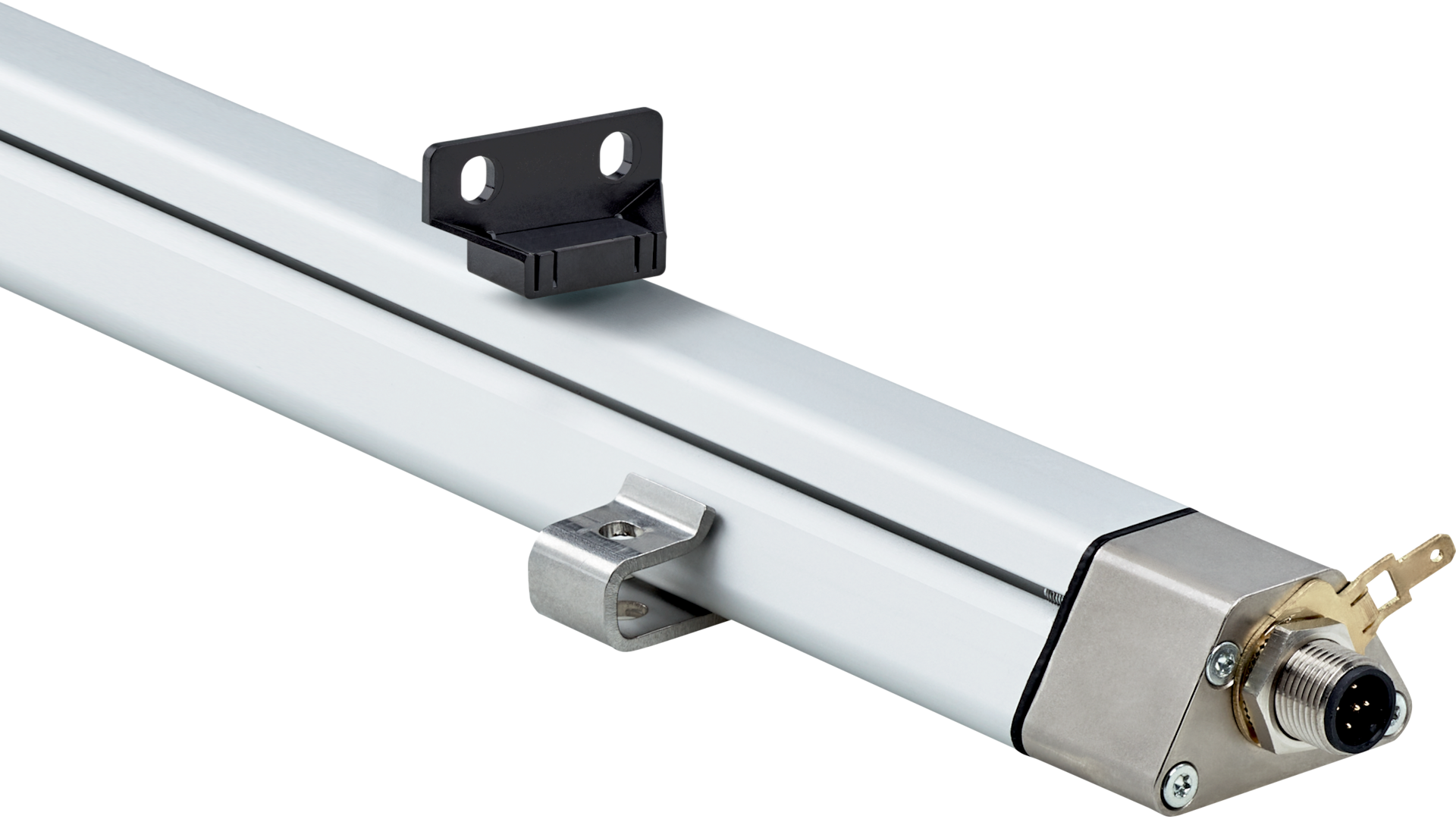

DAXLON-2500B20C0001300 | Linear encoders
The SICK DAXLON-2500B20C0001300 linear encoder offers precise position and speed measurement with a robust design, suitable for demanding industrial automation applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: DAXLON-2500B20C0001300 | Linear encoders
Brand: SICK
SKU: 1130538
Alternatively Known As: Linear position sensor, linear scale encoder, CANopen linear encoder, industrial linear encoder
Technical Specifications
- Linearity: ≤ 0.03% F.S. (Minimum 150 µm)
- Repeatability: ≤ ± 50 µm
- Measuring range: 0 mm to 2500 mm
- Resolution: 50 µm
- Cycle time: 1 ms
- Communication interface: CANopen CiA DS-301 V4.02, CiA DSP-305 LSS
- Data transmission rate: 250 kbit/s
- Supply voltage: 24 V DC (± 20%)
- Reverse polarity protection: Up to −30 V DC
- Dielectric strength: 500 V DC against housing
- Over voltage protection: ≤ 36 V DC
- Connection type: Male connector, M12, 5-pin, A-coded
- Mechanical design: DAX Low Profile
- Housing material: Anodised aluminum, zinc, stainless steel, brass
- Mounting bracket: Stainless steel 1.4301
- Enclosure rating: IP65 / IP67
- Operating temperature range: –40 °C to +85 °C
- Storage temperature range: –40 °C to +85 °C
- Permissible relative humidity: 90% (no condensation)
- Shock resistance: 100 g, 6 ms
- Vibration resistance: 8 g, 10–2000 Hz
- Dimensions (H x L x W): 20mm x 2600mm x 40mm
- Weight: 1.2 kg
