DAXLVN-0100BA080000000 | Linear encoders

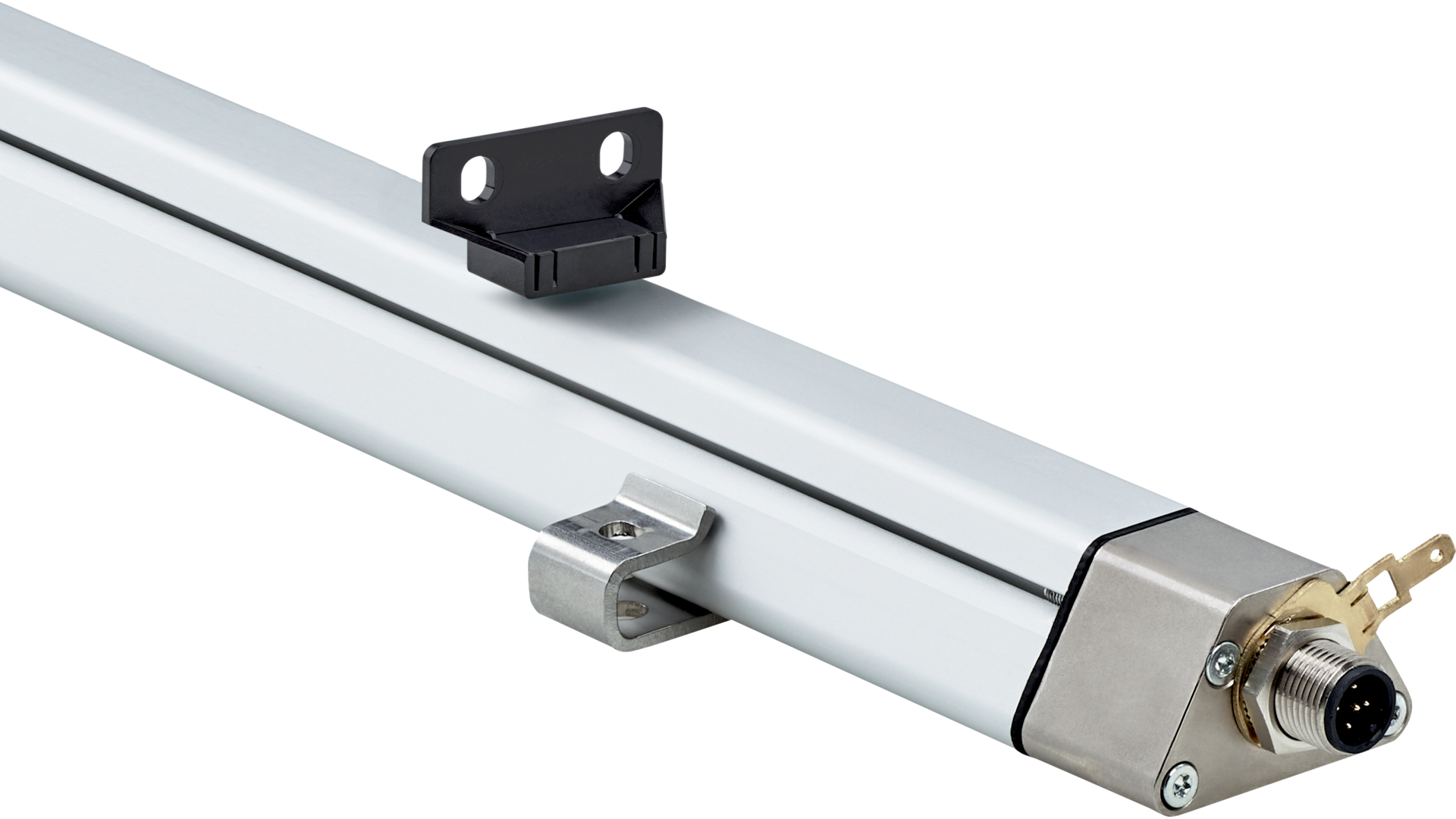

The SICK DAXLVN-0100BA080000000 Linear Encoder offers precise position measurement with high repeatability and robust design, suitable for demanding industrial automation applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: DAXLVN-0100BA080000000 | Linear encoders
Brand: SICK
SKU: 1140743
Alternatively Known As: Linear position sensor, Analog linear encoder, Position measuring system, Industrial linear transducer
Technical Specifications
- Linearity: ≤ 0.03% F.S. (Minimum 90 µm)
- Repeatability: ≤ ± 20 µm
- Measuring range: 0 mm to 100 mm
- Output signal: 0 V to 10 V analog voltage
- Supply voltage: 24 V DC (± 20%)
- Connection: Male connector, M12, 5-pin, A-coded
- Operating temperature: –40 °C to +85 °C
- Storage temperature: –40 °C to +85 °C
- Enclosure rating: IP65 / IP67
- Resistance to shocks: 100 g, 6 ms
- Resistance to vibration: 8 g / 10–2000 Hz
- Dielectric strength: 500 V DC against housing
- Over voltage protection: ≤ 36 V DC
- Reverse polarity protection: Up to −30 V DC
- Measuring frequency (internal): < 2 ms
- Dimensions (H x L x W): 20mm x 30mm x 100mm
- Weight: 0.5 kg
Key Features
- High linearity with ≤ 0.03% F.S. (Minimum 90 µm)
- Repeatability of ≤ ± 20 µm
- Measuring range of 0 mm to 100 mm
- Analog voltage output signal from 0 V to 10 V
- Robust mechanical design with anodised aluminum housing and stainless steel mounting bracket
- Operating temperature range from –40 °C to +85 °C
- IP65 / IP67 rated enclosure for dust and water protection
- EMC compliant according to EN 61000-6-2 and EN 61000-6-4
- Over voltage protection up to 36 V DC and reverse polarity protection up to −30 V DC
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor systems and electrical safety standards.
Applications
- Position measurement in industrial automation
- Machine tool positioning
- Robotics and assembly lines
- Quality control and inspection systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable construction reduces need for frequent replacements, minimizing waste
- Low power consumption with efficient analog output
- Complies with China RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK DAXLVN-0100BA080000000 Linear Encoder is available for immediate purchase, ideal for precision industrial automation and position measurement applications.
