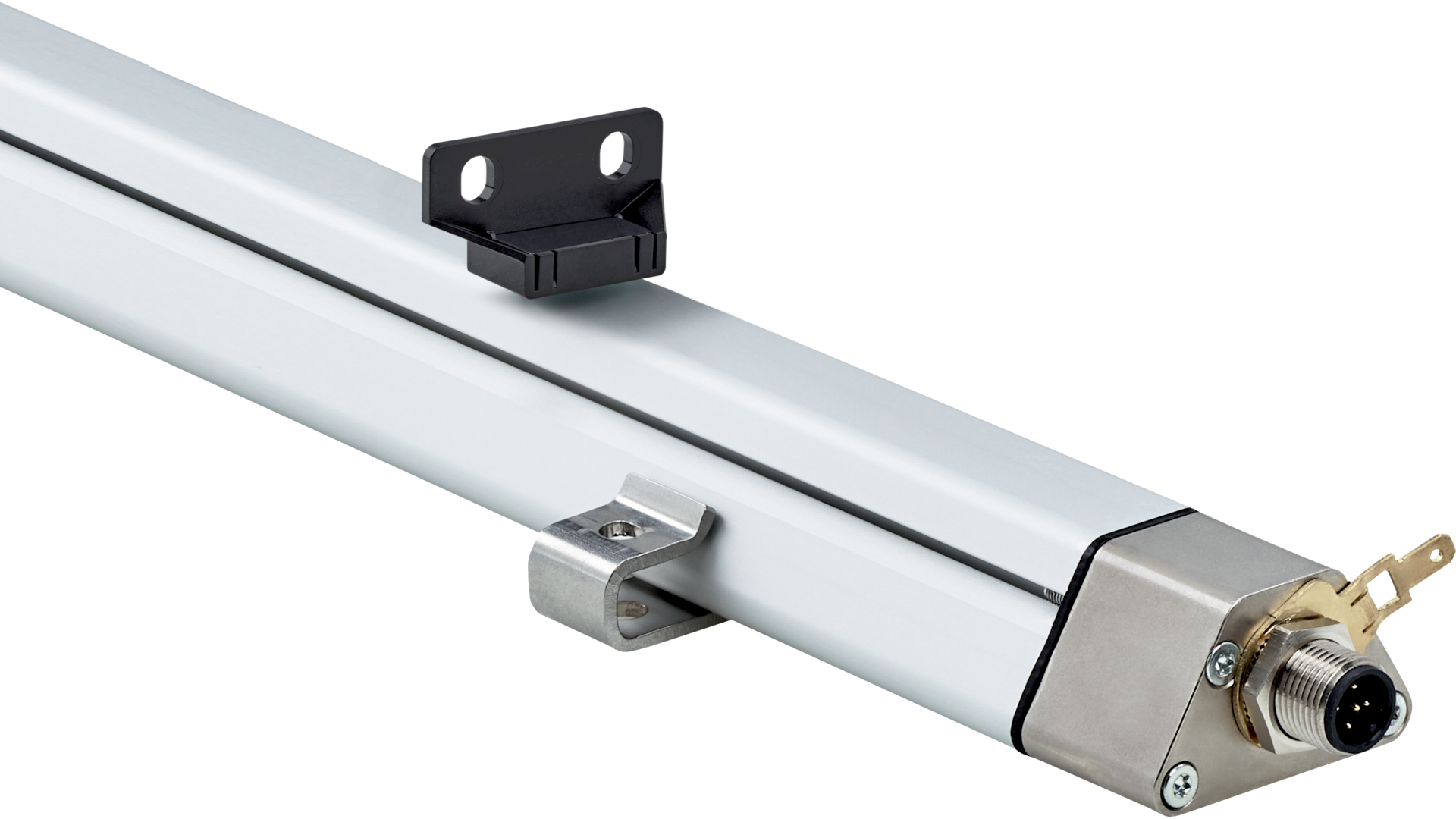

Product Name/Title: DAXLVN-0200BA0C0000M01 | Linear encoders
Brand: SICK
SKU: 1132920
Alternatively Known As: Linear position sensor, linear displacement encoder, analog linear encoder, SICK linear position transducer
Technical Specifications
- Linearity: ≤ 0.03% F.S. (Minimum 90 µm)
- Repeatability: ≤ ± 20 µm
- Measuring range: 0 mm to 200 mm
- Null zone: 55 mm
- Damping zone: 63 mm
- Magnet shape: Small block magnet (1 piece required)
- Measuring frequency (internal): < 2 ms
- Communication interface: Analog voltage output 0 V to 10 V
- Number of signals: Two output signals (one output + inverted)
- Load resistance: > 10 kΩ
- Connection type: Male connector, M12, 8-pin, A-coded
- Supply voltage: 24 V DC (± 20%)
- Reverse polarity protection: Up to −30 V DC
- Residual ripple: ≤ 0.28 V pp
- Dielectric strength: 500 V DC against housing
- Over voltage protection: ≤ 36 V DC
- Mechanical design: DAX Low Profile
- Housing material: Anodised aluminum, zinc, stainless steel, brass
- Mounting bracket: Stainless steel 1.4301
- EMC: According to EN 61000-6-2 and EN 61000-6-4
- Enclosure rating: IP65 / IP67
- Operating temperature range: –40 °C to +85 °C
- Storage temperature range: –40 °C to +85 °C
- Permissible relative humidity: 90% (no condensation)
- Shock resistance: 100 g, 6 ms (IEC 60068-2-27)
- Vibration resistance: 8 g / 10…2,000 Hz (IEC 60068-2-6)
- Dimensions (H x L x W): 20mm x 200mm x 50mm
- Weight: 0.5 kg
Key Features
- High linearity with ≤ 0.03% F.S. (minimum 90 µm)
- Repeatability of ≤ ± 20 µm
- Measuring range of 0 mm to 200 mm
- Analog voltage output signal from 0 V to 10 V
- Two output signals including an inverted second output
- Robust mechanical design with anodised aluminum housing and stainless steel mounting bracket
- Wide operating temperature range from –40 °C to +85 °C
- IP65 / IP67 rated enclosure for dust and water protection
- High resistance to shocks (100 g, 6 ms) and vibration (8 g / 10…2,000 Hz)
- Supply voltage 24 V DC with reverse polarity and over voltage protection
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and mechanical integration of linear encoders to ensure proper alignment and connection.
Applications
- Industrial automation for precise positioning
- Machine tool feedback systems
- Robotics and motion control
- Measurement and inspection systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Energy-efficient operation with low power consumption
- Complies with China RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK DAXLVN-0200BA0C0000M01 linear encoder is available for immediate purchase, ideal for industrial automation and precision measurement applications.
