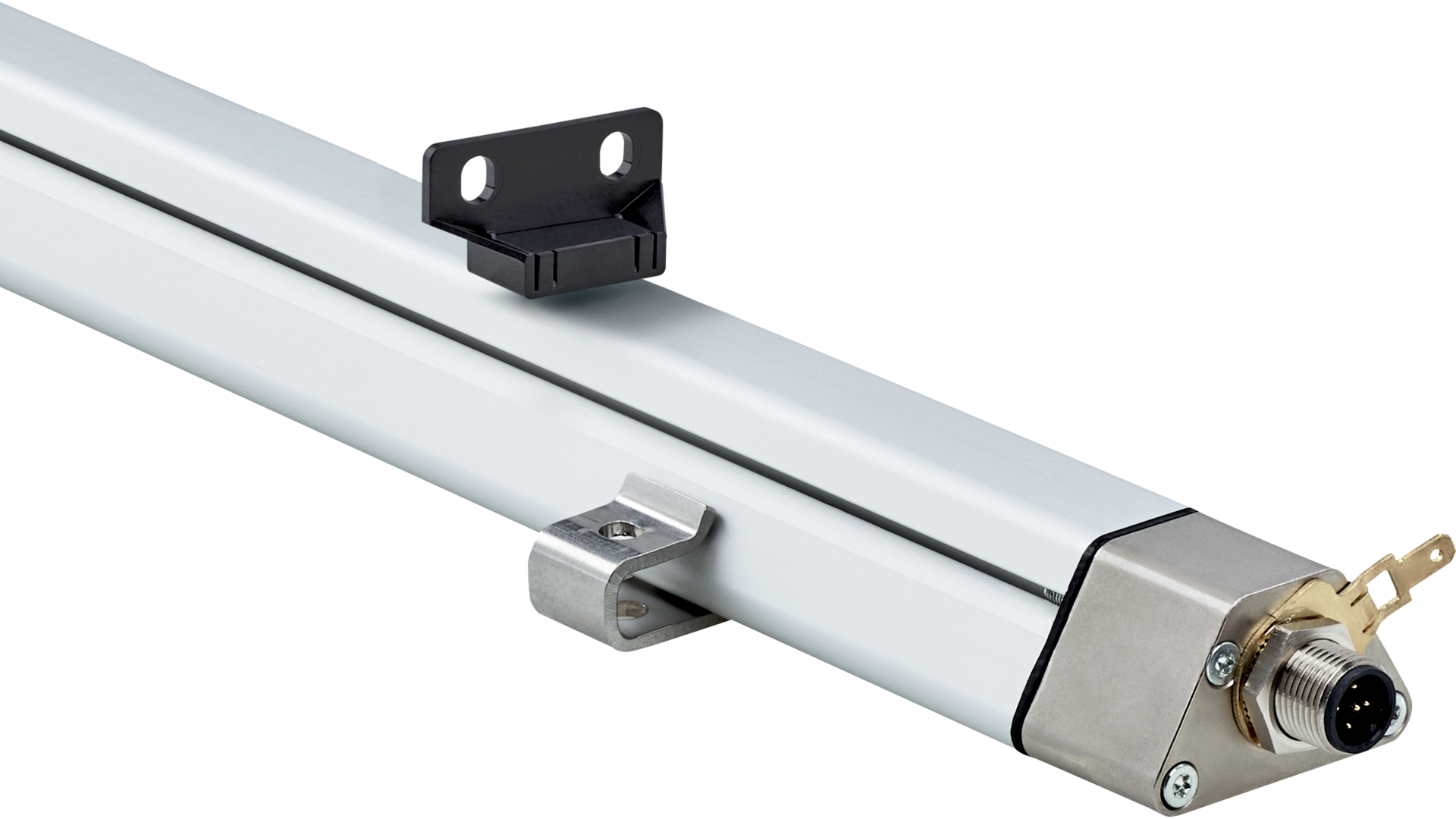

DAXLVN-0250BA080000M01 | Linear encoders
The SICK DAXLVN-0250BA080000M01 linear encoder offers precise position measurement with a 250 mm range, robust design, and reliable analog output for industrial automation applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: DAXLVN-0250BA080000M01 | Linear encoders
Brand: SICK
SKU: 1136142
Alternatively Known As: Linear position sensor, Analog linear encoder, SICK position encoder, DAX linear sensor
Technical Specifications
- Linearity: ≤ 0.03% F.S. (Minimum 90 µm)
- Repeatability: ≤ ± 20 µm
- Measuring range: 0 mm to 250 mm
- Output signal: 0 V to 10 V analog voltage
- Number of signals: Two output signals (one output + inverted output)
- Load resistance: > 10 kΩ
- Communication interface: Analog voltage
- Connection type: Male connector, M12, 8-pin, A-coded
- Supply voltage: 24 V DC (± 20%)
- Reverse polarity protection: Up to −30 V DC
- Residual ripple: ≤ 0.28 V pp
- Dielectric strength: 500 V DC against housing
- Over voltage protection: ≤ 36 V DC
- Mechanical design: DAX Low Profile
- Housing material: Anodised aluminum, zinc, stainless steel, brass
- Mounting bracket: Stainless steel 1.4301
- Enclosure rating: IP65 / IP67
- Operating temperature: –40 °C to +85 °C
- Storage temperature: –40 °C to +85 °C
- Permissible relative humidity: 90% (no condensation)
- Shock resistance: 100 g, 6 ms
- Vibration resistance: 8 g / 10–2000 Hz
- Dimensions (H x L x W): 25mm x 250mm x 80mm
- Weight: 0.5 kg
Key Features
- High linearity with ≤ 0.03% F.S. (minimum 90 µm)
- Repeatability of ≤ ± 20 µm
- Measuring range of 0 mm to 250 mm
- Analog voltage output signal from 0 V to 10 V
- Two output signals including an inverted second output signal
- Operating temperature range from –40 °C to +85 °C
- IP65 / IP67 rated enclosure for dust and water protection
- Robust mechanical design with anodised aluminum housing and stainless steel mounting bracket
- Resistance to shocks up to 100 g and vibration up to 8 g
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and automation equipment to ensure proper connection and calibration.
Applications
- Industrial automation for precise position measurement
- Machine tool positioning
- Robotics and assembly lines
- Quality control and inspection systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Low power consumption with efficient analog output
- Complies with RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK DAXLVN-0250BA080000M01 linear encoder is available for immediate purchase, ideal for industrial automation and precision measurement applications.
