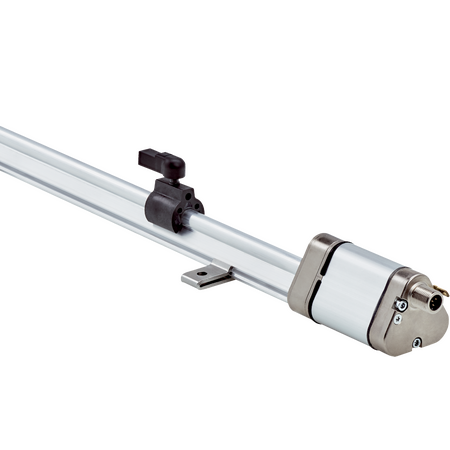

DAXSAN-0600SA000900D00 | Linear encoders
The SICK DAXSAN-0600SA000900D00 linear encoder offers precise and reliable position measurement with high accuracy and robust design, suitable for industrial automation and control applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: DAXSAN-0600SA000900D00 | Linear encoders
Brand: SICK
SKU: 1140761
Alternatively Known As: Linear position sensor, linear measurement encoder, analog linear encoder, industrial linear position transducer
Technical Specifications
- Linearity: ≤ 0.02% F.S. (minimum 60 µm)
- Repeatability: ± 20 µm
- Measuring range: 0 mm to 600 mm
- Null zone: 25 mm
- Damping zone: 63 mm
- Magnet type: Slide magnet, 1 piece
- Magnet travel speed: ≤ 10 m/s
- Measuring frequency: < 2 ms
- Output signal: 4 mA to 20 mA analog current
- Load resistance: 100 Ω to 500 Ω
- Connection: Male M12 5-pin connector, A-coded
- Supply voltage: 24 V DC ± 20%
- Current consumption: 50 to 100 mA
- Reverse polarity protection: Up to -30 V DC
- Over voltage protection: ≤ 36 V DC
- Dielectric strength: 500 V DC against housing
- Mechanical design: DAX Slider
- Housing material: Anodised aluminum, zinc, stainless steel, brass
- Mounting bracket: Stainless steel 1.4301
- EMC: Compliant with EN 61000-6-2 and EN 61000-6-4
- Enclosure rating: IP65 / IP67
- Operating temperature: -40 °C to +85 °C
- Storage temperature: -40 °C to +85 °C
- Relative humidity: 90% (no condensation)
- Shock resistance: 100 g, 6 ms
- Vibration resistance: 15 g / 10 to 2000 Hz
- Dimensions (H x L x W): 20mm x 150mm x 60mm
- Weight: 0.5 kg
Key Features
- High accuracy with linearity ≤ 0.02% F.S. (minimum 60 µm)
- Repeatability of ± 20 µm
- Measuring range of 0 mm to 600 mm
- Robust mechanical design with anodised aluminum housing and stainless steel mounting bracket
- IP65 / IP67 rated for protection against dust and water
- Operating temperature range from -40 °C to +85 °C
- Resistance to shocks up to 100 g and vibration up to 15 g
- Analog current output signal 4 mA to 20 mA
- Supply voltage 24 V DC with reverse polarity and over voltage protection
- Fast measuring frequency less than 2 ms
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and calibration.
Applications
- Industrial automation for precise positioning
- Machine tool feedback systems
- Robotics and assembly lines
- Measurement and control systems requiring linear position feedback
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Durable construction reduces need for frequent replacements
- Energy-efficient operation with low current consumption
- Complies with China RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK DAXSAN-0600SA000900D00 linear encoder is available for immediate purchase, ideal for industrial automation and precision measurement applications.
