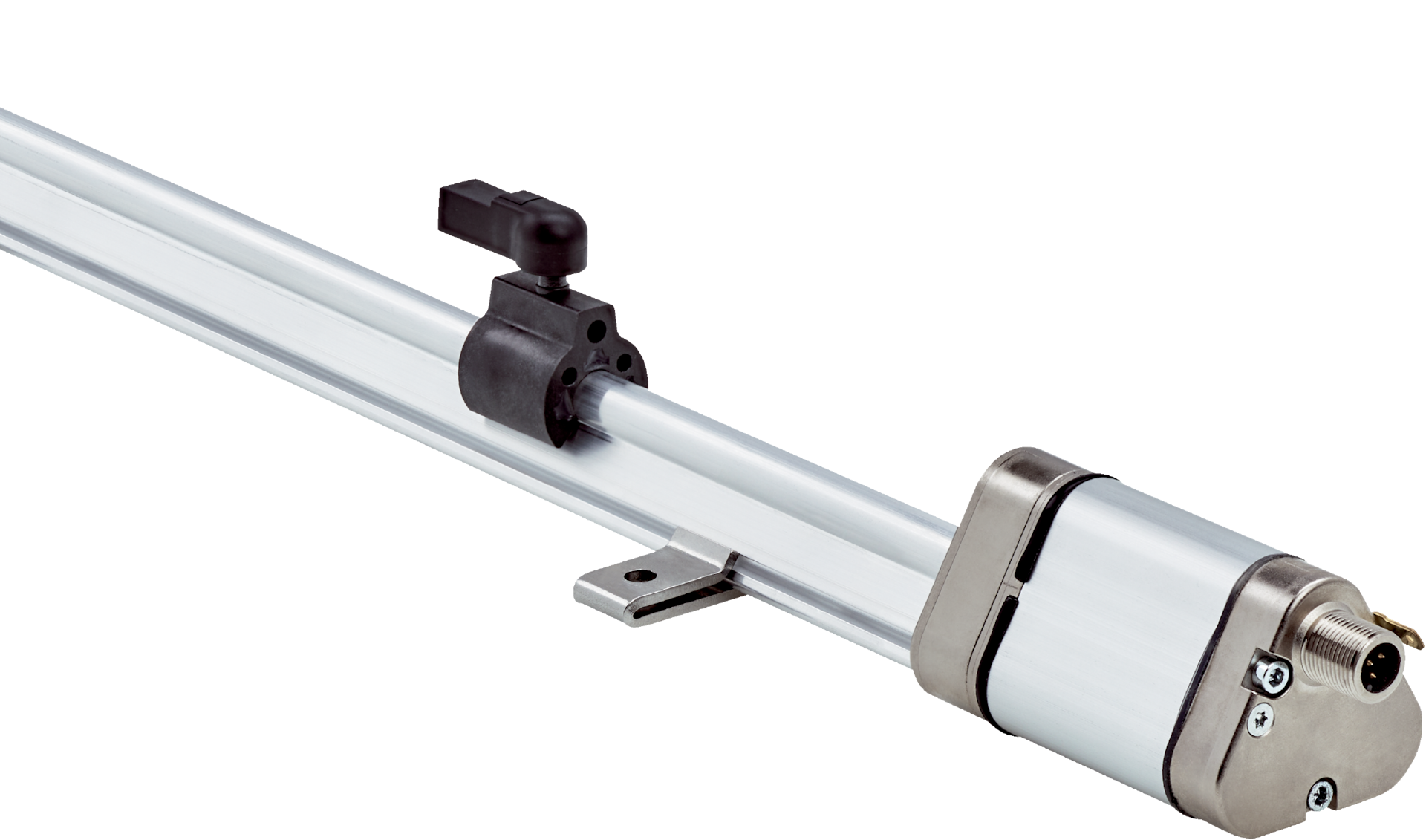

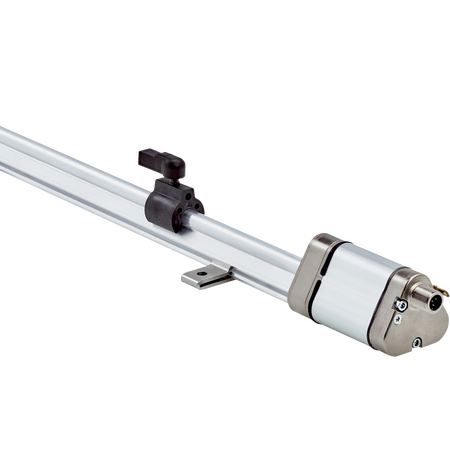

DAXSAN-0900SA040900W01 | Linear encoders
The SICK DAXSAN-0900SA040900W01 linear encoder offers precise analog positioning measurement with high linearity and repeatability, suitable for industrial automation and motion control applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: DAXSAN-0900SA040900W01 | Linear encoders
Brand: SICK
SKU: 1132485
Alternatively Known As: Linear position sensor, Analog linear encoder, Current output linear encoder, SICK DAXSAN linear scale
Technical Specifications
- Linearity: ≤ 0.02% F.S. (Minimum 60 µm)
- Repeatability: ≤ ± 20 µm
- Measuring range: 0 mm to 900 mm
- Null zone: 25 mm
- Damping zone: 63 mm
- Magnet shape: Slide magnet
- Magnet travel speed: ≤ 10 m/s
- Measuring frequency (internal): < 2 ms
- Communication interface: Analog current output (4 mA to 20 mA)
- Number of signals: Two output signals (one normal + one inverted)
- Load resistance: 100 Ω to 500 Ω
- Connection type: Male connector, M12, 8-pin, A-coded
- Supply voltage: 24 V DC (± 20%)
- Current consumption: 50 to 100 mA
- Reverse polarity protection: Up to −30 V DC
- Residual ripple: ≤ 0.28 V pp
- Dielectric strength: 500 V DC against housing
- Over voltage protection: ≤ 36 V DC
- Mechanical design: DAX Slider
- Housing material: Anodised aluminum, zinc, stainless steel, brass
- Mounting bracket: Stainless steel 1.4301
- EMC: According to EN 61000-6-2 and EN 61000-6-4
- Enclosure rating: IP65 / IP67
- Operating temperature range: –40 °C to +85 °C
- Storage temperature range: –40 °C to +85 °C
- Permissible relative humidity: 90% (no condensation)
- Shock resistance: 100 g, 6 ms (IEC 60068-2-27)
- Vibration resistance: 15 g / 10–2000 Hz (IEC 60068-2-6)
- Dimensions (H x L x W): 20mm x 900mm x 40mm
- Weight: 0.5 kg
Key Features
- High linearity with ≤ 0.02% F.S. (minimum 60 µm)
- Repeatability of ≤ ± 20 µm
- Measuring range of 0 mm to 900 mm
- Analog current output signal (4 mA to 20 mA)
- Two output signals including an inverted second output
- Robust mechanical design with anodised aluminum housing and stainless steel mounting bracket
- Wide operating temperature range from –40 °C to +85 °C
- High resistance to shocks (100 g, 6 ms) and vibration (15 g / 10–2000 Hz)
- IP65 / IP67 rated enclosure for dust and water protection
- Supply voltage 24 V DC with reverse polarity and overvoltage protection
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper mounting, electrical connection, and calibration for accurate measurement.
Applications
- Industrial automation for precise positioning measurement
- Machine tool feedback systems
- Robotics and motion control
- Quality control and inspection systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Low power consumption with efficient electronics
- Complies with China RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK DAXSAN-0900SA040900W01 linear encoder is available for immediate purchase, ideal for industrial automation and precision positioning applications.
