DAXSON-0300S1040901100 | Linear encoders

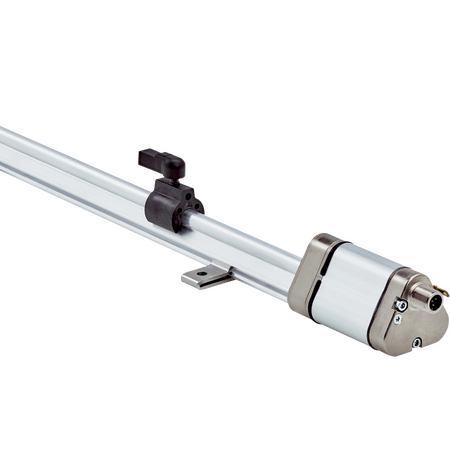

The SICK DAXSON-0300S1040901100 linear encoder offers precise position and speed measurement with high accuracy and robust design, suitable for industrial automation and machine tool applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: DAXSON-0300S1040901100 | Linear encoders
Brand: SICK
SKU: 1132225
Alternatively Known As: Linear position sensor, linear displacement encoder, CANopen linear encoder, industrial linear encoder
Technical Specifications
- Linearity: ≤ 0.02% F.S. (Minimum 250 µm)
- Repeatability: ≤ ±100 µm
- Measuring range: 0 mm to 300 mm
- Null zone: 25 mm
- Damping zone: 63 mm
- Magnet shape: Slide magnet, 1 piece configured
- Magnet travel speed: ≤ 10 m/s
- Resolution: 100 µm
- Cycle time: 1 ms
- Communication interface: CANopen
- Data protocol: CANopen CiA DS-301 V4.02, CiA DSP-305 LSS, Encoder Profile CIA DS-406 V3.2 Class C2
- Data transmission rate: 10 kbit/s
- Node ID: 7Fh (127)
- Connection type: Male connector, M12, 5-pin, A-coded
- Supply voltage: 24 V DC (± 20%)
- Reverse polarity protection: Up to −30 V DC
- Residual ripple: ≤ 0.28 V pp
- Dielectric strength: 500 V DC, 0 V against housing
- Over voltage protection: ≤ 36 V DC
- Mechanical design: DAX Slider
- Housing material: Anodised aluminum, zinc, stainless steel, brass
- Mounting bracket: Stainless steel 1.4301
- EMC: According to EN 61000-6-2 and EN 61000-6-4
- Enclosure rating: IP65 / IP67
- Operating temperature range: –40 °C to +85 °C
- Storage temperature range: –40 °C to +85 °C
- Permissible relative humidity: 90% (no condensation)
- Shock resistance: 100 g, 6 ms (IEC 60068-2-27)
- Vibration resistance: 15 g / 10–2000 Hz (IEC 60068-2-6)
- Dimensions (H x L x W): 20mm x 120mm x 40mm
- Weight: 0.5 kg
Key Features
- High linearity accuracy ≤ 0.02% F.S. with minimum 250 µm
- Repeatability of ±100 µm
- Measuring range of 0 mm to 300 mm
- Resolution of 100 µm and cycle time of 1 ms
- Robust mechanical design with anodised aluminum, zinc, stainless steel, and brass housing
- IP65 / IP67 rated enclosure for dust and water protection
- Operating temperature range from -40 °C to +85 °C
- CANopen communication interface with data protocol CiA DS-301 V4.02 and encoder profile CIA DS-406 V3.2
- Supply voltage 24 V DC with reverse polarity and overvoltage protection
- High resistance to shocks (100 g, 6 ms) and vibration (15 g, 10–2000 Hz)
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and calibration according to manufacturer guidelines.
Applications
- Industrial automation for precise position and speed measurement
- Machine tool positioning
- Robotics and conveyor systems
- Quality control and inspection systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Durable materials and robust design reduce replacement frequency and waste
- Energy-efficient operation with low power consumption
- Compliance with RoHS ensures reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK DAXSON-0300S1040901100 linear encoder is available for immediate purchase, ideal for industrial automation and precision measurement applications.
