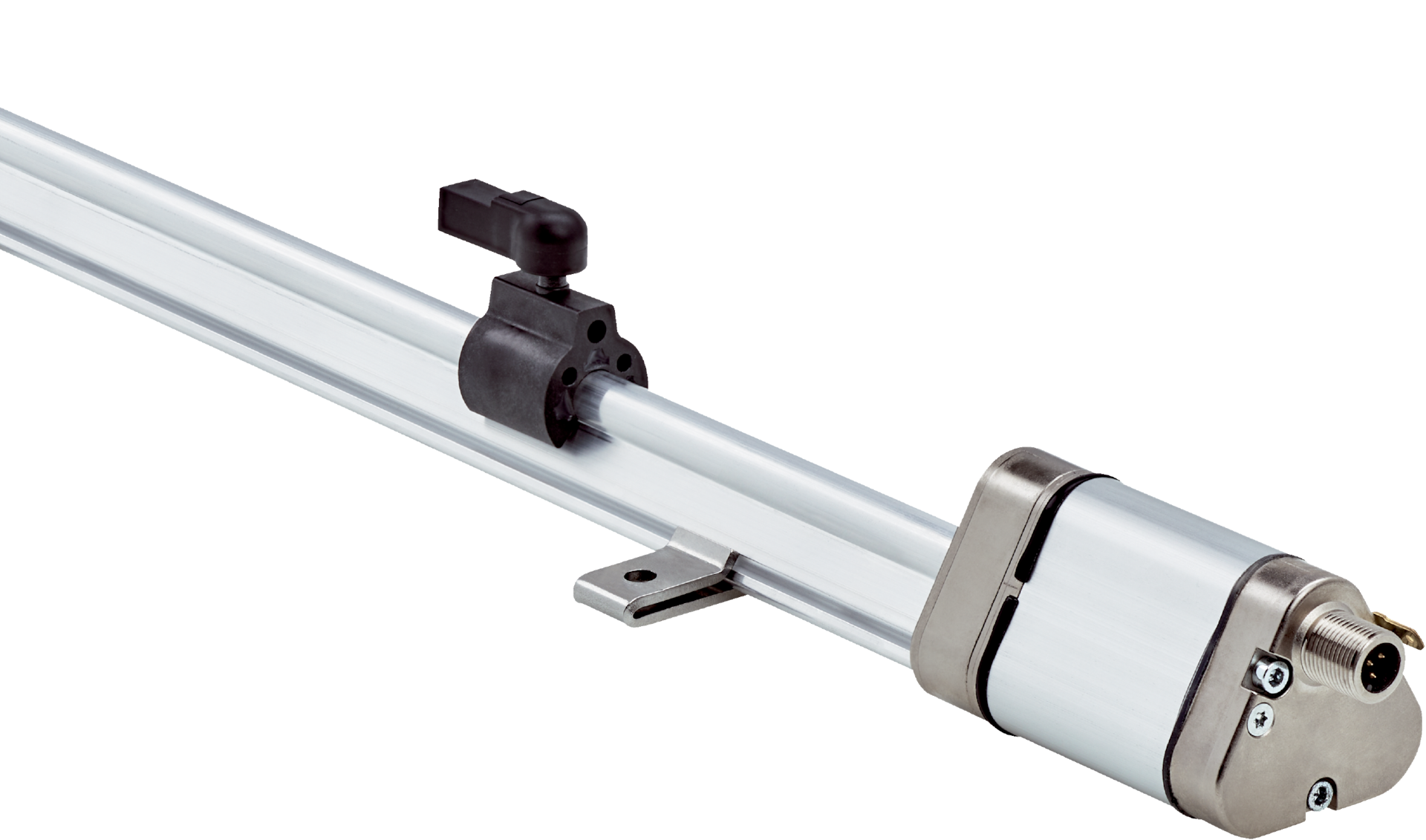

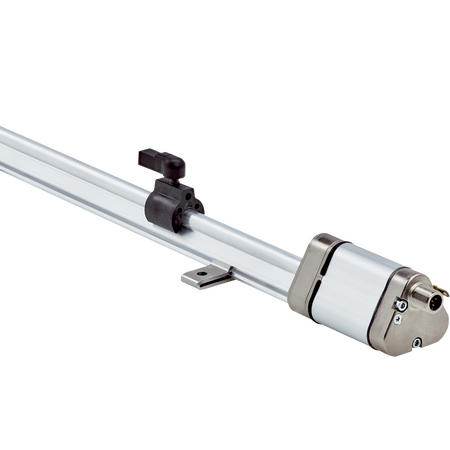

DAXSON-1800S1000901700 Linear encoders

BRAND: SICK
SKU: 1141686
$2,837.40 List price: $3,566.30
+ −
30 Days Return Electricians Unlock Trade Access
The SICK DAXSON-1800S1000901700 linear encoder offers precise position and speed measurement with high accuracy and robust design

Product Name/Title: DAXSON-1800S1000901700 | Linear encoders

Brand: SICK

SKU: 1141686

Alternatively Known As: Linear position sensor, linear scale encoder, industrial linear encoder, position measuring system

Technical Specifications
  • Linearity: ≤ 0.02% F.S. (Minimum 250 µm)
  • Repeatability: ≤ ± 20 µm
  • Measuring range: 0 mm to 1800 mm
  • Null zone: 25 mm
  • Damping zone: 63 mm
  • Resolution: 100 µm
  • Cycle time: 1 ms
  • Communication interface: CANopen CiA DS-301 V4.02, CiA DSP-305 LSS, Encoder Profile CIA DS-406 V3.2 Class C2
  • Data transmission rate: 125 kbit/s
  • Supply voltage: 24 V DC (± 20%)
  • Reverse polarity protection: Up to −30 V DC
  • Residual ripple: ≤ 0.28 V pp
  • Dielectric strength: 500 V DC against housing
  • Over voltage protection: ≤ 36 V DC
  • Connection type: Male connector, M12, 5-pin, A-coded
  • Mechanical design: DAX Slider
  • Housing material: Anodised aluminum, zinc, stainless steel, brass
  • Mounting bracket: Stainless steel 1.4301
  • EMC: According to EN 61000-6-2 and EN 61000-6-4
  • Enclosure rating: IP65 / IP67
  • Operating temperature range: –40 °C to +85 °C
  • Storage temperature range: –40 °C to +85 °C
  • Permissible relative humidity: 90% (no condensation)
  • Shock resistance: 100 g, 6 ms (IEC 60068-2-27)
  • Vibration resistance: 15 g / 10–2000 Hz (IEC 60068-2-6)
  • Dimensions (H x L x W): 30mm x 1800mm x 40mm
  • Weight: 1.5 kg
Key Features
  • High linearity with ≤ 0.02% F.S. accuracy
  • Repeatability of ≤ ± 20 µm
  • Measuring range up to 1800 mm
  • Fast cycle time of 1 ms
  • Robust mechanical design with anodised aluminum housing and stainless steel mounting bracket
  • IP65 / IP67 rated for dust and water protection
  • Wide operating temperature range from –40 °C to +85 °C
  • CANopen communication interface with 125 kbit/s data transmission rate
  • Over voltage and reverse polarity protection
Professional Installation Requirements
  • Installation by a qualified technician or electrician is recommended to ensure proper mounting, electrical connection, and calibration.
Applications
  • Industrial automation for precise position and speed measurement
  • Machine tool positioning
  • Robotics and conveyor systems
  • Quality control and inspection systems
Standards & Compliance
  • AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Durable construction reduces replacement frequency and waste
  • Energy-efficient electronics minimize power consumption
  • Compliant with China RoHS for reduced hazardous substances
Warranty Information

Standard manufacturer warranty applies. Please refer to SICK's warranty policy for details.

Available Now

The SICK DAXSON-1800S1000901700 linear encoder is available for immediate purchase, ideal for industrial automation and precision measurement applications.
