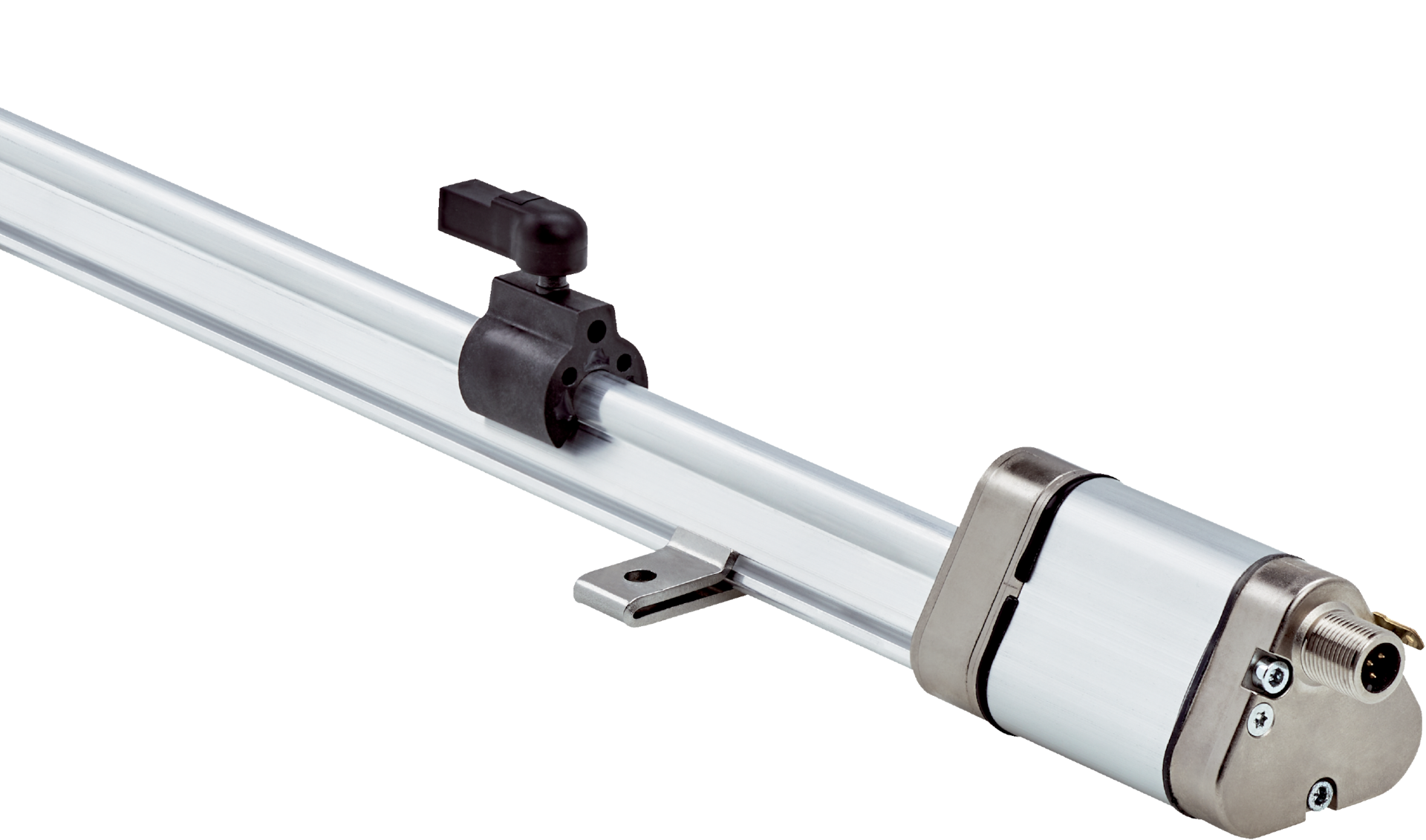

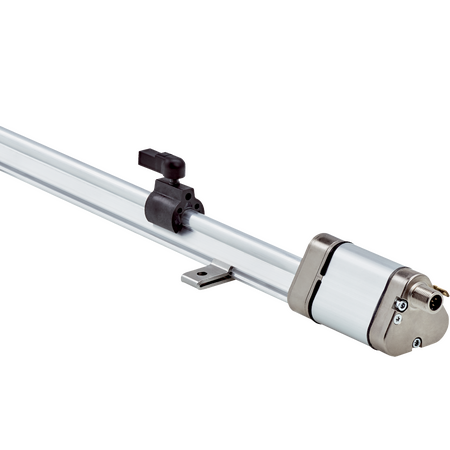

Product Name/Title: DAXSVN-0145CA0K0900100 | Linear encoders
Brand: SICK
SKU: 1132652
Alternatively Known As: Linear position sensor, Analog linear encoder, SICK DAX linear encoder, Position measuring system
Technical Specifications
- Linearity: ≤ 0.02% F.S. (Minimum 60 µm)
- Repeatability: ≤ ± 20 µm
- Measuring range: 0 mm to 145 mm
- Null zone: 25 mm
- Damping zone: 63 mm
- Magnet shape: C-magnet
- Measuring frequency (internal): < 2 ms
- Communication interface: Analog voltage
- Output signal: 0 V to 10 V
- Number of signals: Two output signals (one normal, one inverted)
- Load resistance: > 10 kΩ
- Connection type: Male connector, M12, 5-pin, A-coded
- Supply voltage: 24 V DC (± 20%)
- Reverse polarity protection: Up to −30 V DC
- Residual ripple: ≤ 0.28 V pp
- Dielectric strength: 500 V DC against housing
- Over voltage protection: ≤ 36 V DC
- Mechanical design: DAX Slider
- Housing material: Anodised aluminum, zinc, stainless steel, brass
- Mounting bracket: Stainless steel 1.4301
- EMC: According to EN 61000-6-2 and EN 61000-6-4
- Enclosure rating: IP65 / IP67
- Operating temperature range: –40 °C to +85 °C
- Storage temperature range: –40 °C to +85 °C
- Permissible relative humidity: 90% (no condensation)
- Shock resistance: 100 g, 6 ms (IEC 60068-2-27)
- Vibration resistance: 15 g / 10–2000 Hz (IEC 60068-2-6)
- Dimensions (H x L x W): 40mm x 40mm x 150mm
- Weight: 0.5 kg
Key Features
- High linearity with ≤ 0.02% F.S. (minimum 60 µm)
- Repeatability of ≤ ± 20 µm
- Measuring range of 0 mm to 145 mm
- Analog voltage output signal from 0 V to 10 V
- Two output signals including an inverted second output
- Robust mechanical design with anodised aluminum housing and stainless steel mounting bracket
- Operating temperature range from –40 °C to +85 °C
- IP65 / IP67 rated enclosure for dust and water protection
- Resistance to shocks up to 100 g and vibration up to 15 g
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and industrial sensor systems to ensure proper connection and calibration.
Applications
- Industrial automation for precise positioning measurement
- Machine tool feedback systems
- Robotics and assembly line equipment
- Quality control and inspection systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Durable materials and robust design reduce replacement frequency and waste
- Low power consumption with efficient analog output
- Complies with China RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
