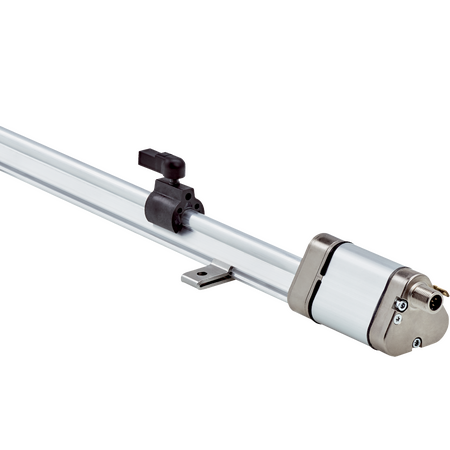

DAXSVN-0500BA0C0900000 | Linear encoders
The SICK DAXSVN-0500BA0C0900000 linear encoder offers precise position measurement with a 500 mm range, high repeatability, and robust construction for industrial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: DAXSVN-0500BA0C0900000 | Linear encoders
Brand: SICK
SKU: 1141688
Alternatively Known As: Linear position sensor, linear displacement encoder, analog linear encoder, position measuring system
Technical Specifications
- Linearity: ≤ 0.03% F.S. (minimum 90 µm)
- Repeatability: ≤ ± 20 µm
- Measuring range: 0 mm to 500 mm
- Output signal: Analog voltage 0 V to 10 V
- Communication interface: Analog voltage
- Supply voltage: 24 V DC (± 20%)
- Connection type: Male connector, M12, 5-pin, A-coded
- Dielectric strength: 500 V DC between 0 V and housing
- Over voltage protection: ≤ 36 V DC
- Operating temperature: –40 °C to +85 °C
- Storage temperature: –40 °C to +85 °C
- Enclosure rating: IP65 / IP67
- Resistance to shocks: 100 g, 6 ms
- Resistance to vibration: 15 g / 10–2000 Hz
- Dimensions (H x L x W): 20mm x 150mm x 50mm
- Weight: 0.5 kg
Key Features
- High linearity with ≤ 0.03% F.S. (minimum 90 µm)
- Repeatability of ≤ ± 20 µm
- Measuring range from 0 mm to 500 mm
- Analog voltage output signal (0 V to 10 V)
- Robust mechanical design with anodised aluminum housing and stainless steel mounting bracket
- Operating temperature range from –40 °C to +85 °C
- IP65 / IP67 rated enclosure for dust and water protection
- Resistance to shocks up to 100 g and vibration up to 15 g
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and mechanical mounting according to manufacturer guidelines.
Applications
- Industrial automation and positioning systems
- Precision measurement in manufacturing
- Robotics and motion control
- Quality control and inspection systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable construction reduces need for frequent replacements, minimizing waste
- Low power consumption with 24 V DC supply
- Complies with China RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK DAXSVN-0500BA0C0900000 linear encoder is available for immediate purchase, ideal for industrial automation and precision measurement applications.
