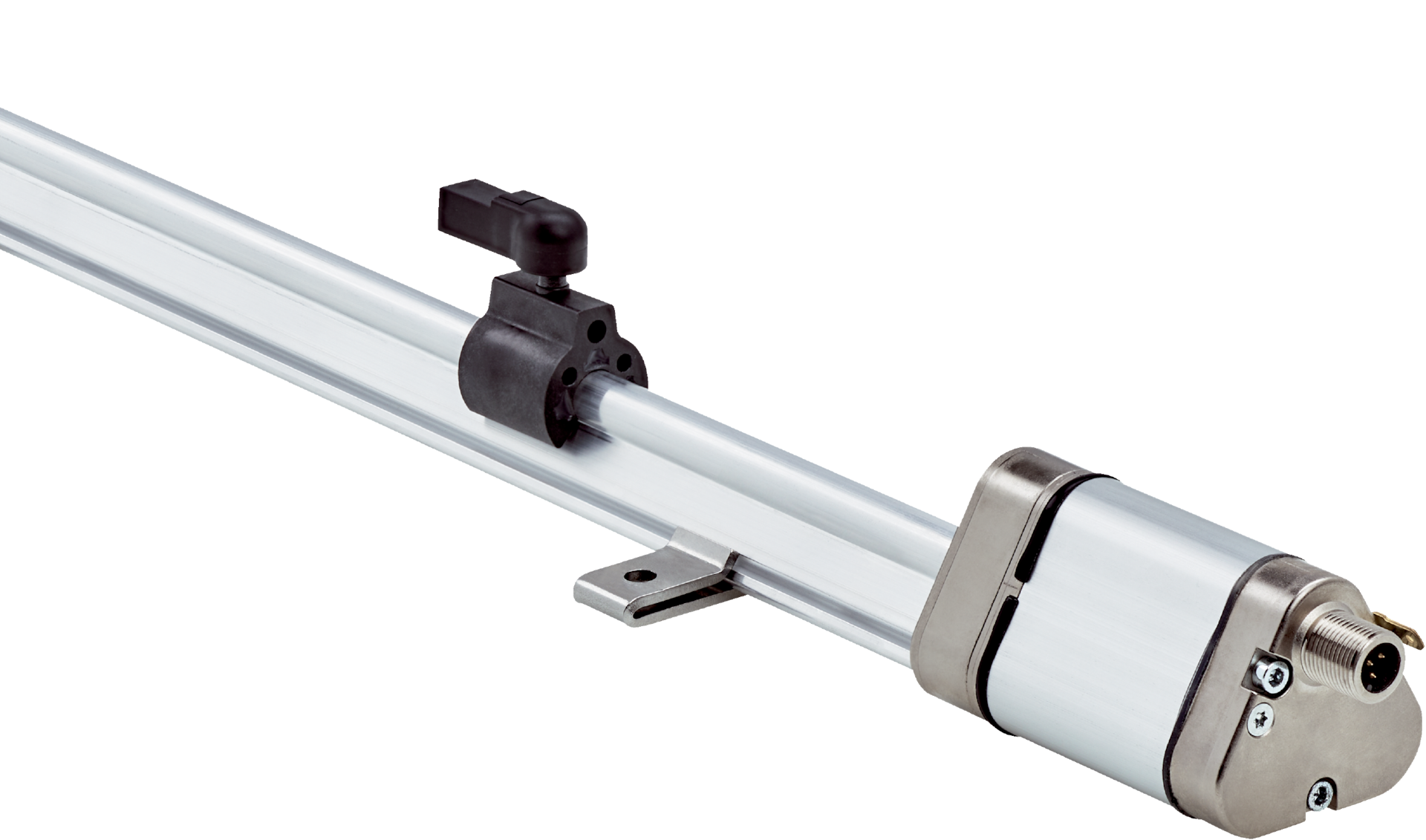

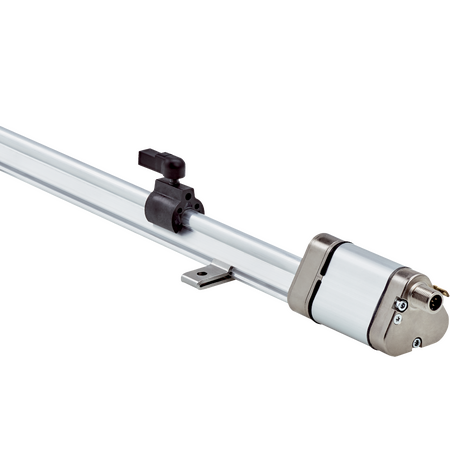

DAXSVN-1250SA040900100 | Linear encoders
The SICK DAXSVN-1250SA040900100 linear encoder offers precise position measurement with high accuracy and robust design, suitable for industrial automation and machine tool applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: DAXSVN-1250SA040900100 | Linear encoders
Brand: SICK
SKU: 1142436
Alternatively Known As: Linear position sensor, linear scale encoder, analog linear encoder, position measuring system
Technical Specifications
- Linearity: ≤ 0.02% F.S. (Minimum 60 µm)
- Repeatability: ≤ ± 20 µm
- Measuring range: 0 mm to 1250 mm
- Null zone: 25 mm
- Damping zone: 63 mm
- Magnet shape: Slide magnet, 1 piece configured
- Magnet travel speed: ≤ 10 m/s
- Measuring frequency (internal): < 2 ms
- Communication interface: Analog voltage output 0 V to 10 V
- Number of signals: Two output signals (one normal, one inverted)
- Load resistance: > 10 kΩ
- Connection type: Male connector, M12, 5-pin, A-coded
- Pinouts: 1=+24 V DC; 2=Signal 1; 3=Power ground; 4=Signal 2; 5=Output signal ground (0 V)
- Supply voltage: 24 V DC (± 20%)
- Reverse polarity protection: Up to −30 V DC
- Residual ripple: ≤ 0.28 V pp
- Dielectric strength: 500 V DC, 0 V against housing
- Over voltage protection: ≤ 36 V DC
- Mechanical design: DAX Slider
- Housing material: Aluminum (anodised), zinc, stainless steel, brass
- Mounting bracket: Stainless steel 1.4301
- EMC: According to EN 61000-6-2 and EN 61000-6-4
- Enclosure rating: IP65 / IP67
- Operating temperature range: –40 °C to +85 °C
- Storage temperature range: –40 °C to +85 °C
- Permissible relative humidity: 90% (no condensation)
- Shock resistance: 100 g, 6 ms (IEC 60068-2-27)
- Vibration resistance: 15 g / 10–2000 Hz (IEC 60068-2-6)
- Dimensions (H x L x W): 20mm x 1300mm x 40mm
- Weight: 1.5 kg
Key Features
- High accuracy with linearity ≤ 0.02% F.S. and repeatability ≤ ±20 µm
- Measuring range up to 1250 mm
- Analog voltage output signal 0 V to 10 V with two output signals (one inverted)
- Robust mechanical design with anodised aluminum housing and stainless steel mounting bracket
- Operating temperature range from -40 °C to +85 °C
- IP65 / IP67 rated enclosure for dust and water protection
- High resistance to shock (100 g, 6 ms) and vibration (15 g, 10–2000 Hz)
- Supply voltage 24 V DC with reverse polarity and overvoltage protection
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and calibration.
Applications
- Industrial automation for precise position measurement
- Machine tool positioning
- Robotics and assembly lines
- Quality control and inspection systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable construction reduces need for frequent replacements, minimizing waste
- Energy-efficient operation with low power consumption
- Compliant with China RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK DAXSVN-1250SA040900100 linear encoder is available for immediate purchase, ideal for industrial automation and precision measurement applications.
