DAXTAN-0610RA1J0N00V01 | Linear encoders

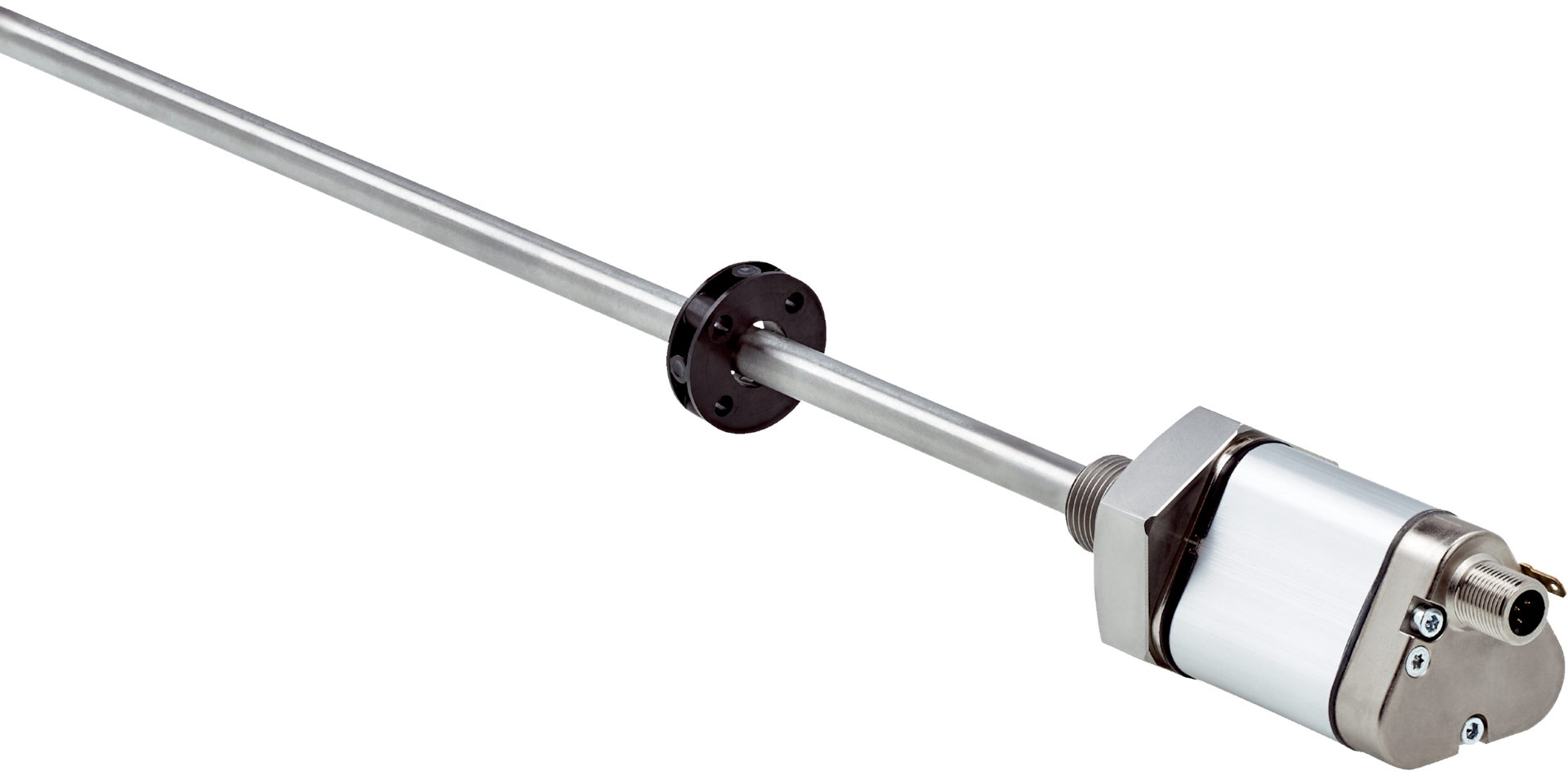

The SICK DAXTAN-0610RA1J0N00V01 linear encoder provides precise analog position measurement with high linearity and repeatability, suitable for harsh industrial environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: DAXTAN-0610RA1J0N00V01 | Linear encoders
Brand: SICK
SKU: 1140960
Alternatively Known As: Linear position sensor, Analog linear encoder, Position transducer, Linear displacement sensor
Technical Specifications
- Measuring range: 0 mm to 610 mm
- Linearity: ≤ 0.02% F.S. (minimum 60 µm)
- Repeatability: ± 20 µm
- Output signal: 4 mA to 20 mA analog current
- Load resistance: 100 Ω to 500 Ω
- Supply voltage: 24 V DC (± 20%)
- Current consumption: 50 to 100 mA
- Connection: Male M12, 8-pin connector, A-coded
- Operating temperature: -40 °C to +85 °C
- Storage temperature: -40 °C to +65 °C
- Enclosure rating: IP65 / IP67
- Mechanical design: DAX Threaded, M18 x 1.5 thread
- Materials: Stainless steel 1.4404 (AISI 316L) pressure pipe, anodised aluminum housing, stainless steel and brass flange
- Resistance to shock: 100 g, 6 ms
- Resistance to vibration: 15 g, 10 to 2000 Hz
- Nominal operating pressure: 350 bar
- Max overload pressure: 420 bar
- Max test pressure: 530 bar
- MTTFD (mean time to dangerous failure): 123 years
- Dimensions (H x L x W): 30mm x 100mm x 30mm
- Weight: 0.5 kg
Key Features
- High linearity ≤ 0.02% F.S. with minimum 60 µm
- Repeatability of ± 20 µm
- Measuring range up to 610 mm
- Analog current output signal 4 mA to 20 mA
- Robust mechanical design with stainless steel and anodised aluminum housing
- Operating temperature range from -40 °C to +85 °C
- IP65 / IP67 rated enclosure for dust and water protection
- High resistance to shock (100 g) and vibration (15 g)
- Supply voltage 24 V DC with reverse polarity and overvoltage protection
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure correct mounting, electrical connection, and compliance with safety standards.
Applications
- Industrial automation for precise positioning measurement
- Hydraulic cylinder position feedback
- Machine tool linear position sensing
- Robotics and factory automation requiring high accuracy linear measurement
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable materials and robust design reduce replacement frequency and waste
- Low power consumption electronics contribute to energy efficiency
- High reliability minimizes downtime and resource use
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK DAXTAN-0610RA1J0N00V01 linear encoder is available for immediate purchase, ideal for industrial automation and precise position measurement applications.
