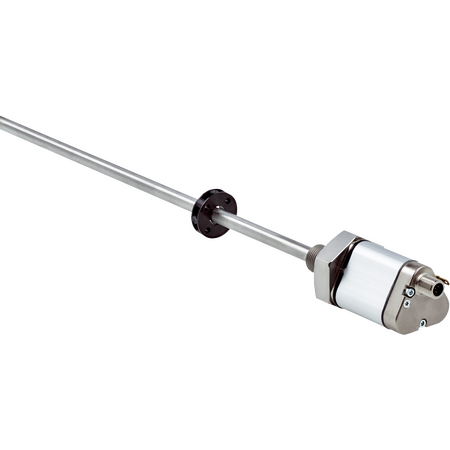

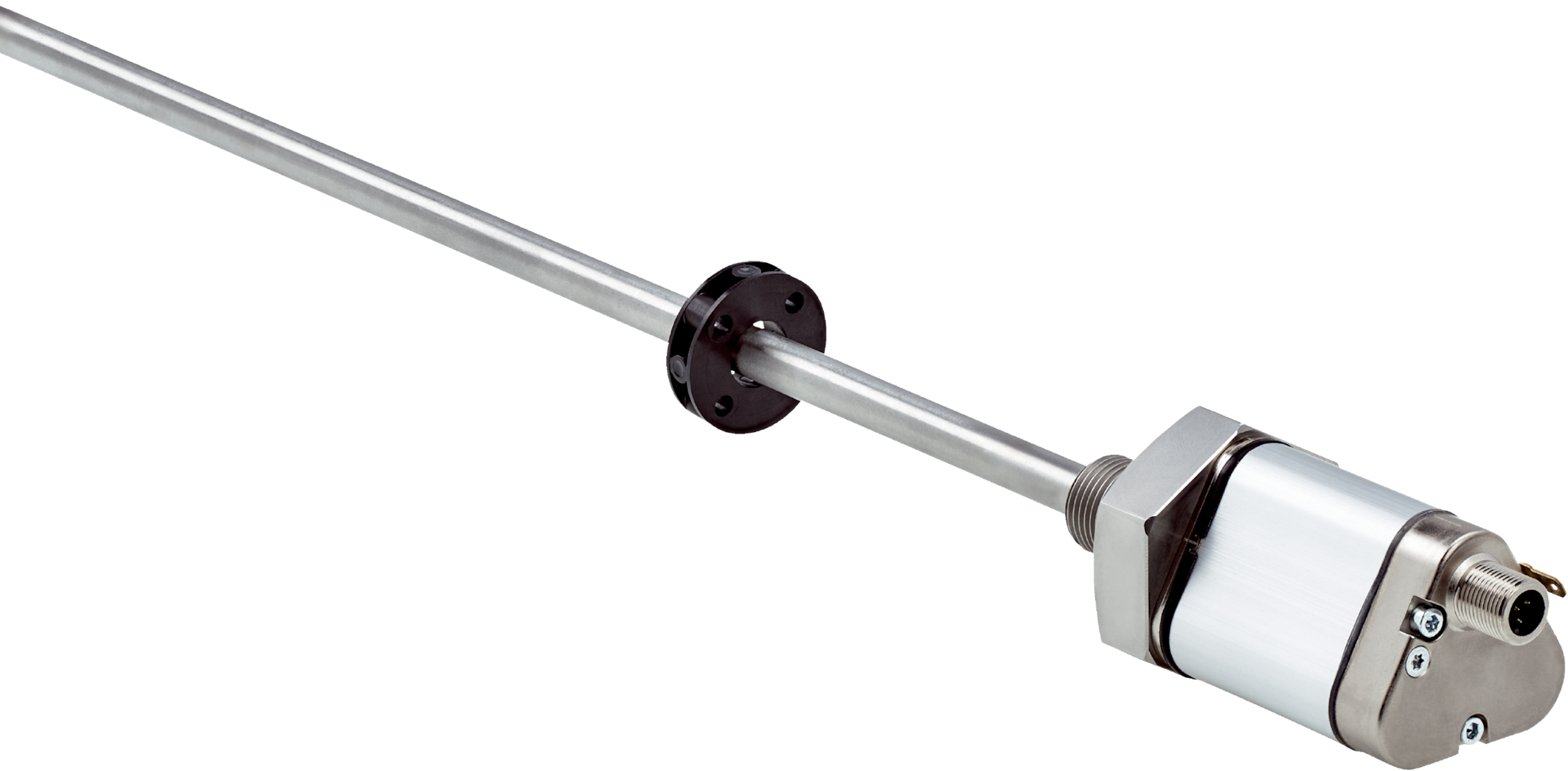

DAXTAN-1500RA1F0J00D00 | Linear encoders
The SICK DAXTAN-1500RA1F0J00D00 linear encoder offers precise position measurement with high accuracy and robust design, suitable for industrial automation and hydraulic applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: DAXTAN-1500RA1F0J00D00 | Linear encoders
Brand: SICK
SKU: 1153462
Alternatively Known As: Linear position sensor, linear transducer, position encoder, analog linear encoder
Technical Specifications
- Linearity: ≤ 0.02% F.S. (minimum 60 µm)
- Repeatability: ≤ ± 20 µm
- Measuring range: 0 mm to 1500 mm
- Output signal: 4 mA to 20 mA analog current
- Communication interface: Analog current
- Supply voltage: 24 V DC (± 20%)
- Current consumption: 50 to 100 mA
- Connection type: Male connector, M12, 5-pin, A-coded
- Operating temperature: -40 °C to +85 °C
- Storage temperature: -40 °C to +65 °C
- Enclosure rating: IP65 / IP67
- Mechanical design: DAX Threaded, M18 x 1.5 thread
- Materials: Stainless steel 1.4404 (AISI 316L) pressure pipe, anodised aluminum housing, stainless steel 1.4305 (AISI 303) flange
- Resistance to shocks: 100 g, 6 ms
- Resistance to vibration: 15 g / 10 to 2000 Hz
- Nominal operating pressure: 350 bar
- Dimensions (H x L x W): 40mm x 1500mm x 40mm
- Weight: 0.5 kg
Key Features
- High accuracy with linearity ≤ 0.02% F.S. (minimum 60 µm)
- Repeatability of ≤ ± 20 µm
- Measuring range up to 1500 mm
- Analog current output signal (4 mA to 20 mA)
- Robust mechanical design with stainless steel and anodised aluminum housing
- Operating temperature range from -40 °C to +85 °C
- IP65 / IP67 rated enclosure for dust and water protection
- Resistance to shocks up to 100 g and vibration up to 15 g
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure correct mounting, electrical connection, and calibration for optimal performance.
Applications
- Industrial automation for precise positioning
- Measurement and control in manufacturing processes
- Hydraulic cylinder position feedback
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable materials and robust design reduce replacement frequency and waste
- Low power consumption with efficient analog output
- Supports precise control to optimize energy use in industrial processes
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK DAXTAN-1500RA1F0J00D00 linear encoder is available for immediate purchase, ideal for industrial automation and hydraulic position measurement applications.
