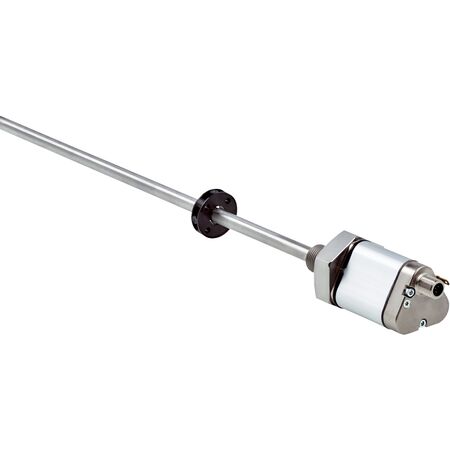

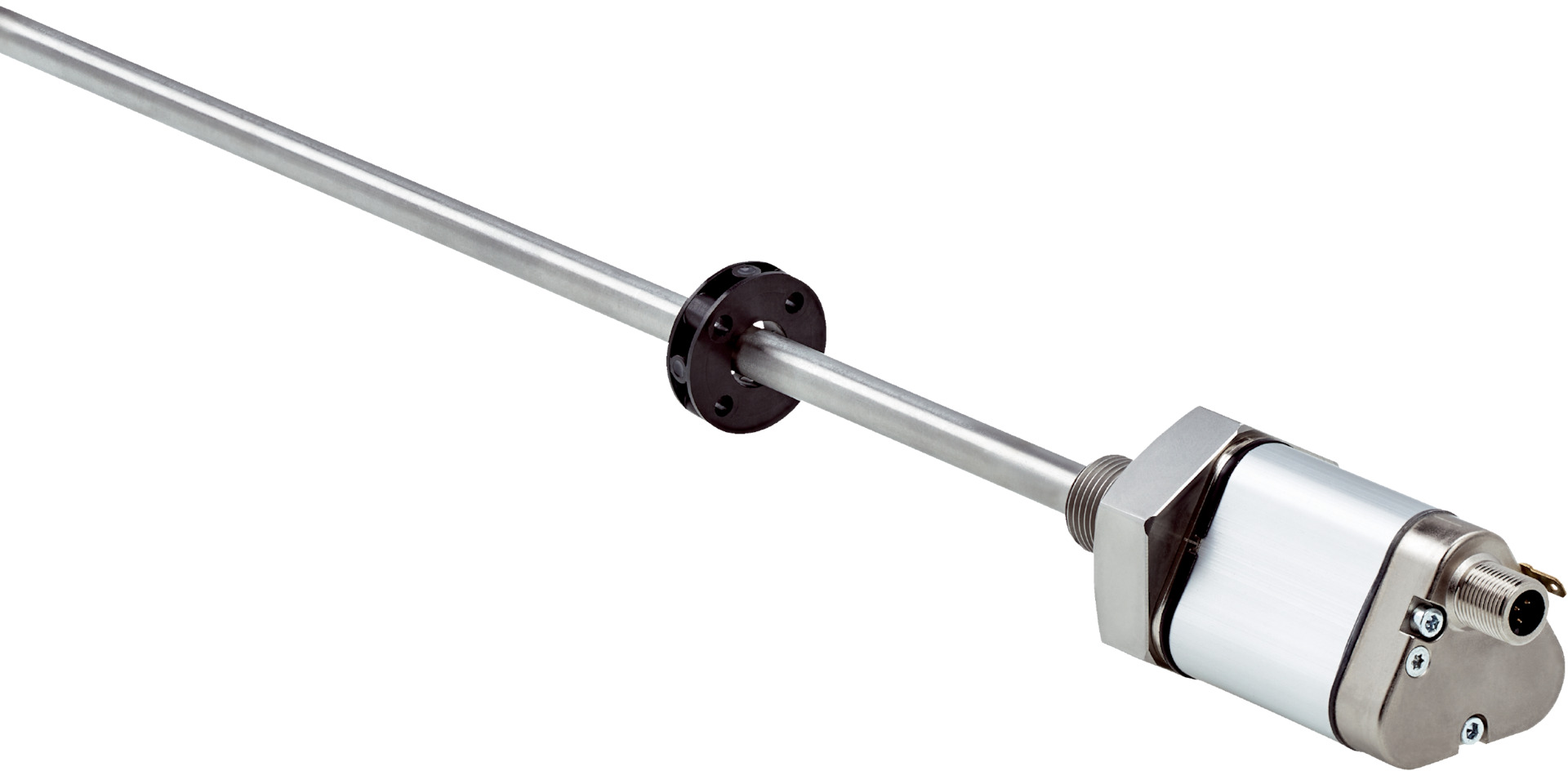

DAXTON-2000R41J0101300 Threaded Position Sensor | 2000 mm Measuring Range | IP65/IP67 Rated | High Accuracy | by SICK
The DAXTON-2000R41J0101300 Threaded Position Sensor offers a measuring range of up to 2000 mm with high accuracy, featuring linearity of ≤ 0.02% F.S. and repeatability of ≤ ±20 µm. Designed for industrial automation and hydraulic cylinder position feedback, this robust sensor is built with stainless steel and anodised aluminum, ensuring durability in harsh environments. With a fast cycle time of 1 ms and a wide operating temperature range from -40 °C to +85 °C, it’s perfect for precise positioning in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: 0 mm to 2000 mm
- Linearity: ≤ 0.02% F.S. (minimum 60 µm)
- Repeatability: ≤ ±20 µm
- Resolution: 10 µm
- Cycle time: 1 ms
- Communication interface: CANopen CiA DS-301 V4.02, CiA DSP-305 LSS
- Data transmission rate: 250 kbit/s
- Supply voltage: 24 V DC (±20%)
- Reverse polarity protection: Up to -30 V DC
- Dielectric strength: 500 V DC against housing
- Over voltage protection: ≤ 36 V DC
- Mechanical design: DAX Threaded, M18 x 1.5 thread
- Materials: Stainless steel 1.4404 (AISI 316L) pressure pipe, anodised aluminum housing, stainless steel 1.4305 flange
- Enclosure rating: IP65 / IP67
- Operating temperature range: -40 °C to +85 °C
- Shock resistance: 100 g, 6 ms
- Vibration resistance: 15 g / 10–2000 Hz
- Dimensions (H x L x W): 60mm x 100mm x 18mm
- Weight: 0.5 kg
Key Features
- High accuracy with linearity ≤ 0.02% F.S. and repeatability ≤ ±20 µm
- Measuring range up to 2000 mm
- Robust mechanical design with stainless steel and anodised aluminum housing
- IP65 / IP67 rated for harsh environments
- Fast cycle time of 1 ms
- CANopen communication interface with 250 kbit/s data rate
- Wide operating temperature range from -40 °C to +85 °C
- High resistance to shock (100 g) and vibration (15 g)
Professional Installation Requirements
- Installation by qualified personnel with experience in industrial sensor integration and CANopen network configuration is recommended to ensure proper setup and safety.
Applications
- Industrial automation for precise positioning and speed measurement
- Hydraulic cylinder position feedback
- Machine tool positioning
- Robotics and factory automation
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Energy-efficient operation with low power consumption
- Supports predictive maintenance to reduce downtime and resource use
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK DAXTON-2000R41J0101300 Threaded Position Sensor is available for immediate purchase, ideal for industrial automation and hydraulic positioning applications.
