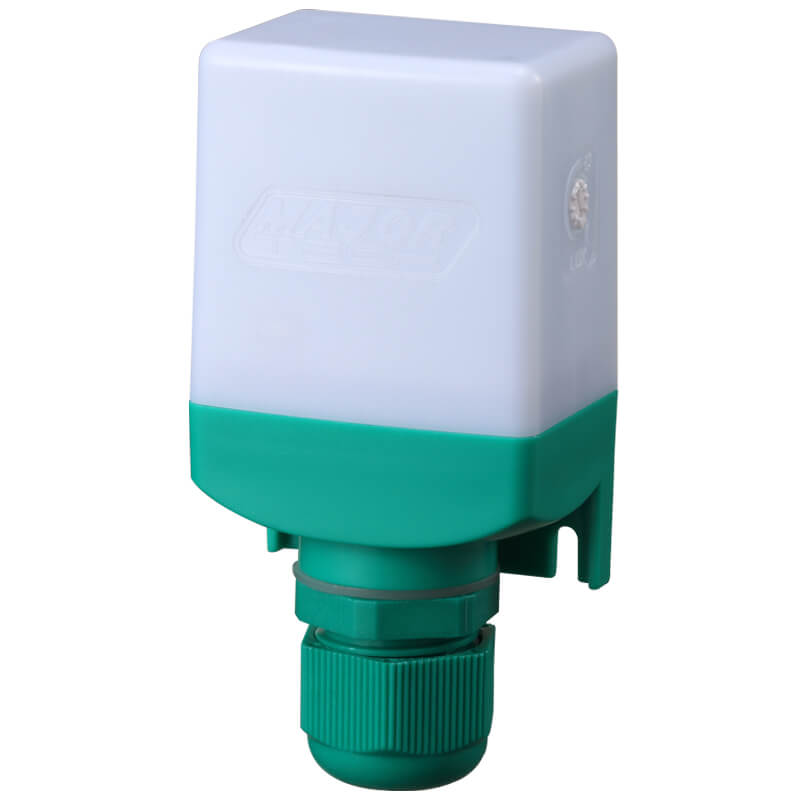

10A Day/Night Light Sensor | IP65 Rated | Adjustable Lux Settings | Automatic Lighting Control | by Majortech
The 10A Day/Night Light Sensor is designed for efficient outdoor lighting control, automatically turning lights on or off based on ambient light levels. With adjustable lux settings from 5 to 50 Lux, it's perfect for entrances, gates, and security lighting in residential and commercial applications. IP65 rated for durability, this sensor enhances energy efficiency and security by ensuring lights operate only when needed.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Day Night Sensor, Light Sensor Switch, Dusk to Dawn Sensor, Outdoor Light Sensor
Technical Specifications
- Function: Day-Night light sensor
- Ambient Light Range: 5 to 50 Lux (Adjustable)
- Voltage: 220 to 240V AC
- Power Frequency: 50/60Hz
- Rated Current: 10A
- Mounting: Walls and Poles
- Working Temperature: -20°C to 40°C
- Working Humidity: <93% RH
- IP Rating: IP65 (Outdoor installation)
- Dimensions (H x L x W): 90mm x 50mm x 70mm
- Weight: 0.2 kg
Key Features
- Automatically turns lighting on or off at dusk and dawn based on ambient light levels.
- Adjustable lux settings from 5 to 50 Lux.
- Suitable for outdoor, industrial, commercial, housing, and security lighting applications.
- Enhances energy efficiency and security by activating lights only when needed.
- IP65 rated for outdoor installation.
Professional Installation Requirements
- Installation must be done by a qualified electrician to ensure safety and compliance.
Applications
- Entrances
- Gates
- Offices
- Warehouses
Standards & Compliance
- AS/NZS 60669.1 – Switches for household and similar fixed electrical installations
- AS/NZS 60669.2.1 – Particular requirements for automatic electrical controls
Environmental Benefits
- Reduces energy consumption by ensuring lights operate only during necessary hours.
- Supports sustainable lighting management by minimizing unnecessary power use.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Majortech 10A Day/Night Light Sensor (IP65) is available now for immediate purchase. Ideal for outdoor lighting control in residential, commercial, and industrial settings.
