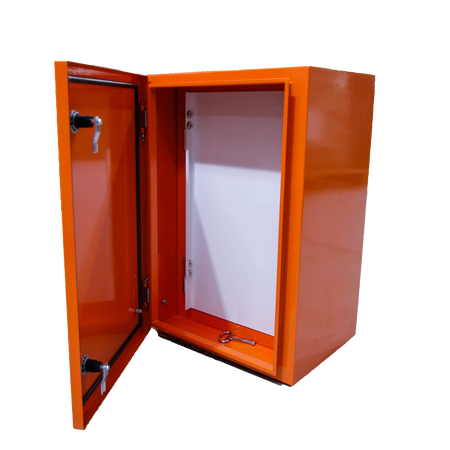

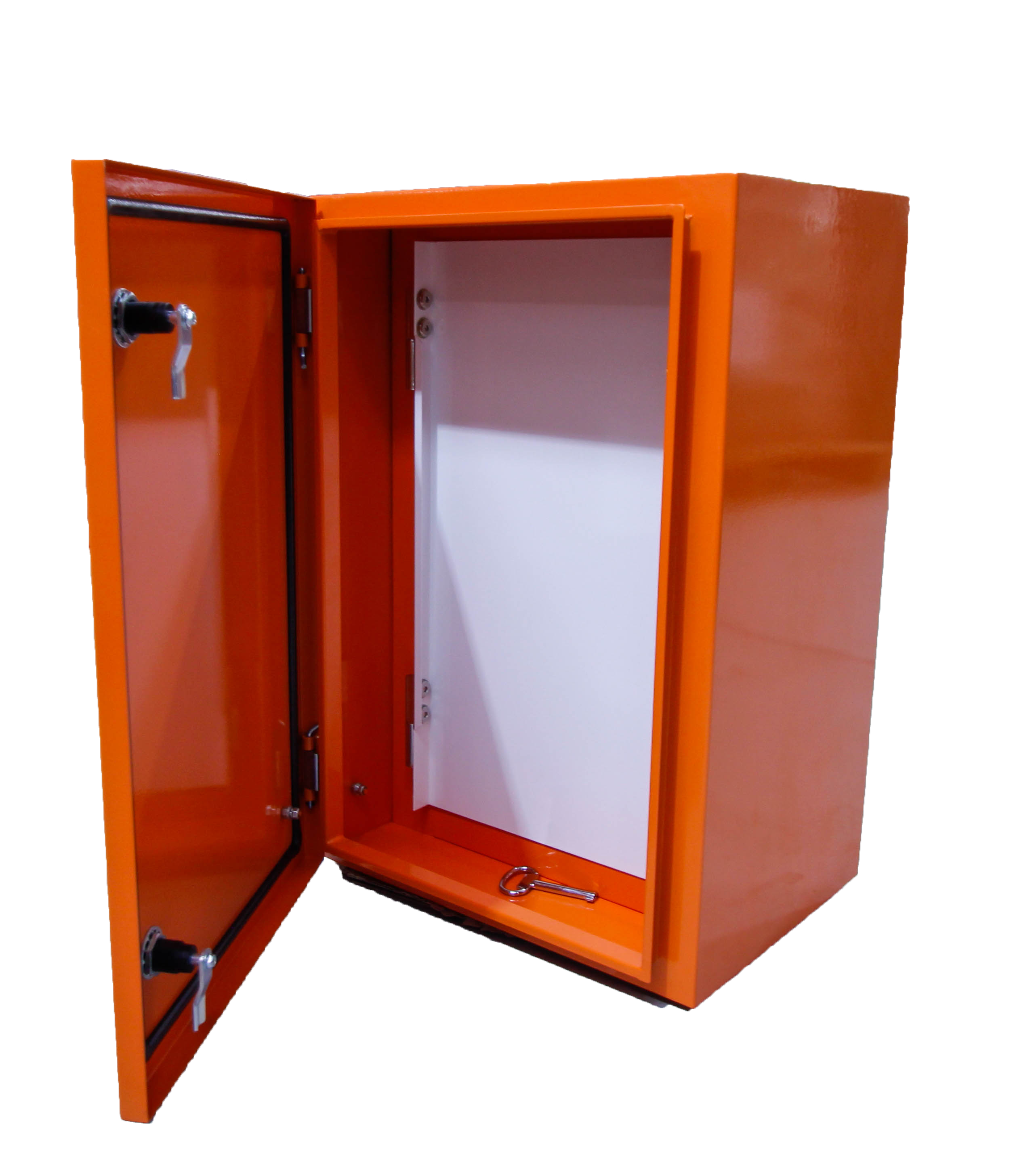

DB Shell Kit IP66 1000x600x200mm Blank Escutcheon Orange Bovara
Bovara distribution board shell kit features IP66 enclosure only, 1000H x 600W x 200D, X15 orange gloss powder coat and blank escutcheon. Fit your own chassis.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: IP66 Distribution Board Enclosure Shell, Blank DB Enclosure, Electrical Switchboard Enclosure
Technical Specifications
- Enclosure Type: Distribution board shell kit
- Ingress Protection: IP66
- Material: Zincanneal steel
- Finish: X15 orange gloss powder coating
- Escutcheon: Blank, suitable for installer-configured cut-outs
- Chassis: Not included; fit your own chassis
- Locking: Triangle-key quarter-turn locks
- Cable Entry: Top and bottom cable entry provisions
- Device Clearance: Accommodates devices up to approximately 51 mm, subject to final configuration
- Dimensions (H x L x W): 1000mm x 200mm x 600mm
- Weight: 20 kg
Key Features
- IP66 enclosure protection against dust and powerful water jets
- Blank escutcheon allows custom cut-outs and equipment configuration
- Durable zincanneal steel construction
- High-visibility X15 orange gloss powder-coated finish
- Suitable for custom low-voltage distribution board and switchboard assemblies
- Enclosure-only supply provides flexibility for chassis and switchgear selection
Professional Installation Requirements
- Installation, chassis selection, wiring and final assembly should be performed by a licensed electrician or qualified switchboard builder. The completed assembly must be designed, verified, earthed and installed in accordance with AS/NZS 3000 and applicable AS/NZS 61439 requirements.
Applications
- Custom low-voltage distribution boards
- Commercial and industrial switchboards
- Outdoor electrical distribution installations
- Electrical control and protection assemblies
- Replacement or project-specific distribution board enclosures
Standards & Compliance
- AS/NZS 61439.2:2016 for applicable low-voltage switchgear and controlgear assemblies, with verification required for the completed assembly
- AS/NZS 60529 for the IP66 enclosure classification
- AS/NZS 3000 for electrical installation requirements applicable to the completed installation
Environmental Benefits
- Steel enclosure components are recyclable at end of service life
- Durable powder-coated finish can help extend service life and reduce replacement waste
- Protection from dust and water ingress can help extend the service life of installed electrical equipment
Warranty Information
Bovara's specific warranty period is not published. Confirm applicable warranty coverage with Bovara or an authorised distributor; Australian Consumer Law consumer guarantees may apply.
Available Now
Available through authorised Bovara distributors in Australia.
