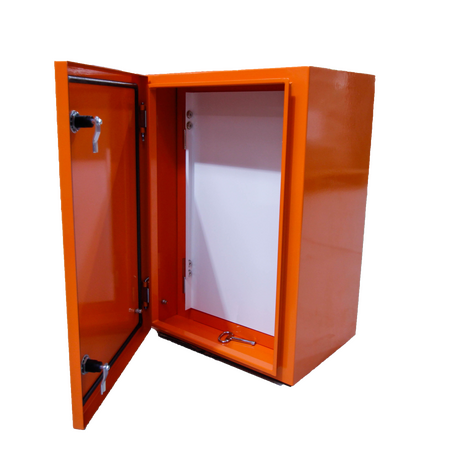

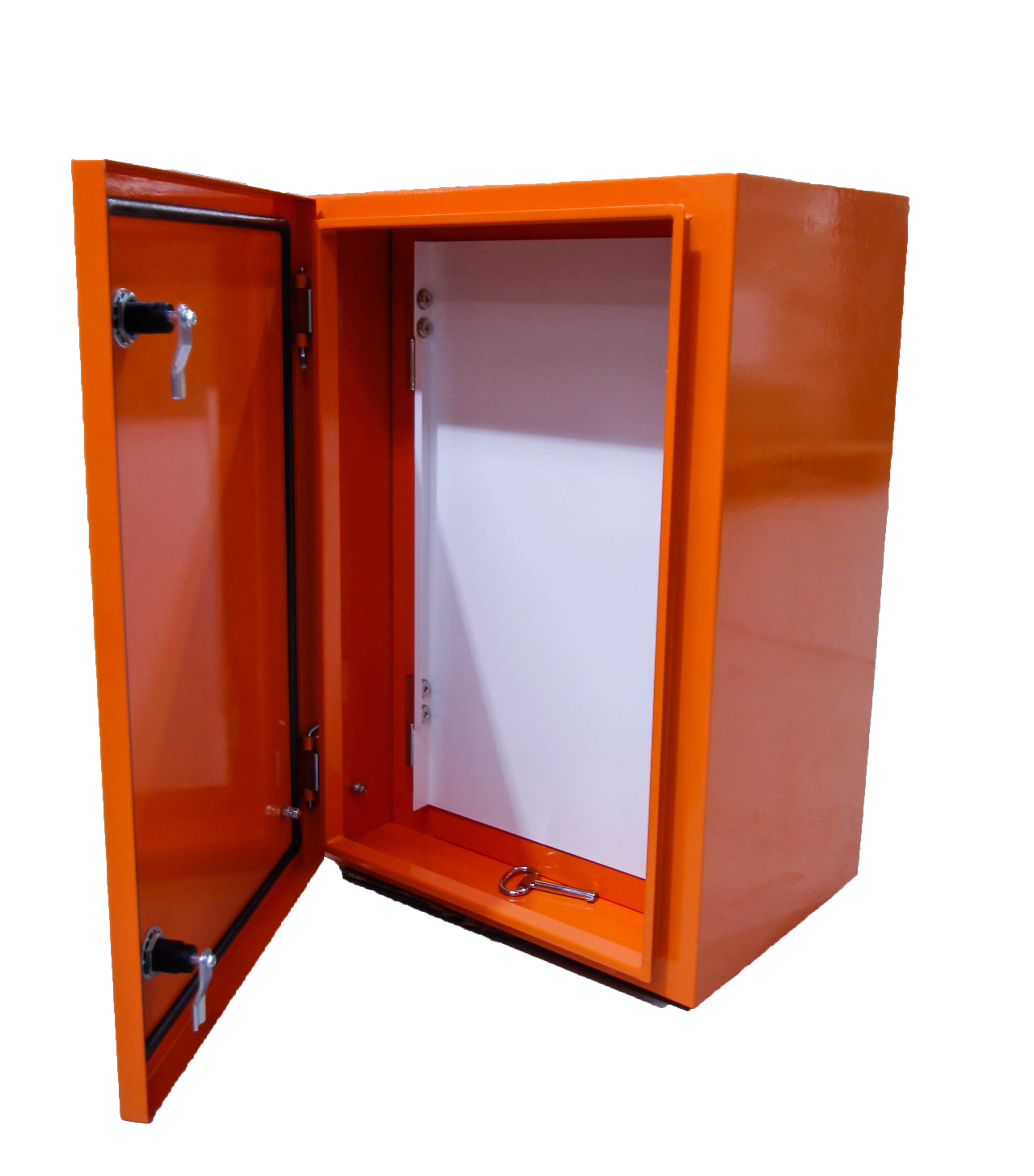

DB Shell Kit IP66 1200x600x200mm Blank Escutcheon Orange Bovara
Bovara distribution board shell kit features IP66 enclosure only, 1200H x 600W x 200D, X15 orange gloss powder coat and blank escutcheon. Fit your own chassis.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Bovara DB Shell Kit, IP66 Distribution Board Enclosure, Electrical Switchboard Shell, Blank Escutcheon Enclosure
Technical Specifications
- Enclosure Type: Distribution board shell kit
- Ingress Protection: IP66
- Material: Zincanneal mild steel
- Finish: X15 orange gloss powder coat
- Escutcheon: Blank escutcheon included
- Chassis: Not included; fit a compatible chassis
- Configuration: Enclosure only
- Dimensions: 1200H x 600W x 200D mm
- Dimensions (H x L x W): 1200mm x 200mm x 600mm
- Weight: 46.6 kg
Key Features
- IP66 enclosure protection against dust and powerful water jets
- Blank escutcheon supplied for custom chassis configuration
- Durable zincanneal mild steel construction
- High-visibility X15 orange gloss powder-coated finish
- Suitable for custom distribution board and switchboard builds
- Allows the installer to select compatible internal equipment and chassis
Professional Installation Requirements
- Installation, chassis selection, electrical assembly and final verification should be completed by a licensed electrician or qualified switchboard builder. The completed assembly must be verified for compliance after the chassis and electrical equipment are installed.
Applications
- Custom distribution boards
- Commercial and industrial switchboards
- Electrical control and protection assemblies
- Indoor or outdoor electrical equipment installations requiring IP66 enclosure protection
Standards & Compliance
- AS/NZS 61439.2:2016 for low-voltage switchgear and controlgear assemblies; final compliance depends on the completed assembly and its verification
- AS 60529:2025 for verification and classification of the claimed IP66 enclosure protection
Environmental Benefits
- Steel enclosure components can be recycled at end of service life
- Durable powder-coated construction can help extend service life and reduce replacement waste
- Enclosure-only supply allows reuse with a project-specific chassis instead of replacing the complete board
Warranty Information
Bovara does not publicly state a standard warranty period for this product. Warranty claims are subject to applicable manufacturer and supplier terms.
Available Now
Available through authorised Bovara distributors in Australia.
