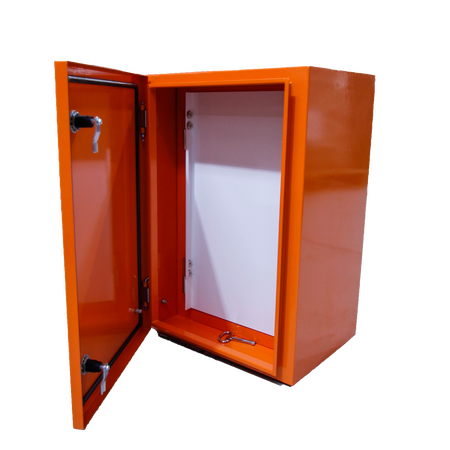

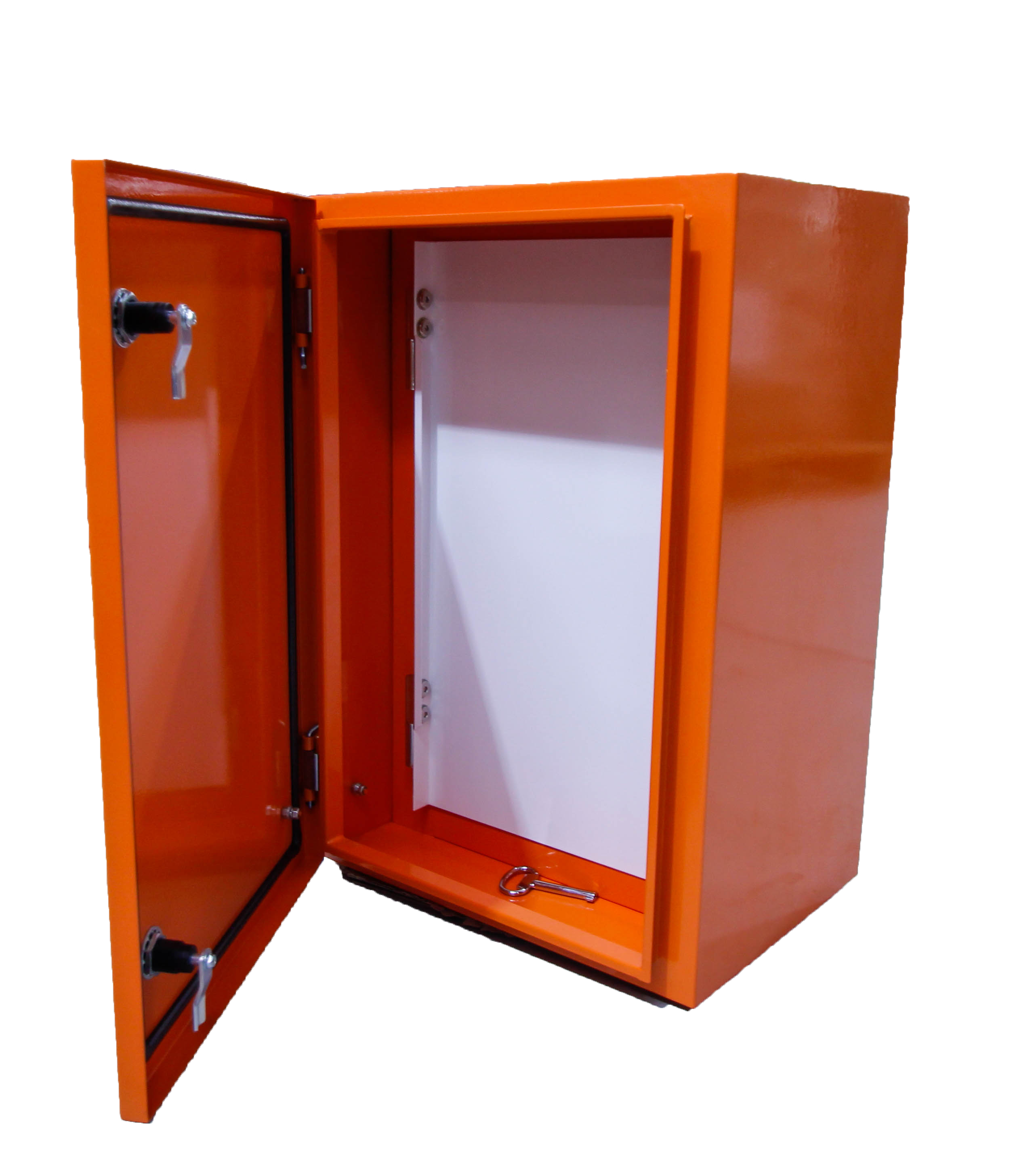

DB Shell Kit IP66 1400x600x200mm Blank Escutcheon Orange Bovara
Bovara distribution board shell kit features IP66 enclosure only, 1400H x 600W x 200D, X15 orange gloss powder coat and blank escutcheon. Fit your own chassis.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: IP66 Distribution Board Enclosure Shell, Electrical Switchboard Shell, Blank Escutcheon Enclosure, Orange Electrical Cabinet
Technical Specifications
- Enclosure Type: Distribution board shell kit
- Ingress Protection: IP66
- Material: Zincanneal steel
- Finish: X15 orange gloss powder coat
- Escutcheon: Blank escutcheon included
- Chassis: Not included; fit a compatible chassis separately
- Configuration: Enclosure shell only
- Depth: 200 mm
- Cable Entry: Top and bottom entry provisions
- Device Clearance: Escutcheon accommodates devices up to approximately 51 mm, subject to final configuration
- Dimensions (H x L x W): 1400mm x 200mm x 600mm
- Weight: 48 kg
Key Features
- IP66 enclosure for protection against dust and powerful water jets when correctly assembled
- Blank escutcheon allows custom device cut-outs
- Supplied without chassis or internal switchgear
- Durable zincanneal steel construction
- Orange X15 gloss powder-coated finish
- Suitable for custom distribution board and switchboard fabrication
- Allows project-specific selection of chassis and electrical equipment
Professional Installation Requirements
- Installation, chassis fitting, wiring and commissioning should be completed by a licensed electrician or suitably qualified switchboard builder. The completed assembly must be designed, verified, earthed and tested in accordance with AS/NZS 3000 and the applicable requirements of AS/NZS 61439.2. IP66 performance depends on correct installation, sealed cable entries and maintaining the enclosure gasket system.
Applications
- Custom low-voltage distribution boards
- Commercial and industrial switchboards
- Motor control and protection panels
- Electrical power distribution and control assemblies
- Indoor or outdoor electrical installations requiring an IP66 enclosure
Standards & Compliance
- AS 60529:2025 for classification and verification of the IP66 enclosure rating
- AS/NZS 61439.2:2016 for the completed low-voltage switchgear assembly, where applicable
- AS/NZS 3000:2018 for electrical installation, wiring, earthing and commissioning
Environmental Benefits
- Zincanneal steel components are recyclable at end of service life
- Durable powder-coated construction can extend service life and reduce replacement waste
- Reusable shell format allows internal chassis and equipment to be configured or upgraded separately
Warranty Information
No public Bovara-specific warranty period was identified for this shell kit. Warranty is subject to Bovara or the authorised distributor's applicable terms, in addition to Australian Consumer Law rights.
Available Now
Available through authorised Bovara distributors in Australia.
