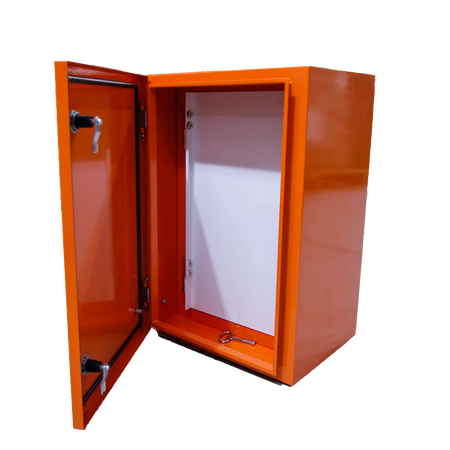

DB Shell Kit IP66 1600x600x200mm Blank Escutcheon Orange Bovara

BRAND: Bovara Electrical Equipment
SKU: DBSK1600102
$2,318.60 List price: $3,091.50
Free pick up (over 25 kg or over 1 meter)
Contact us for delivery cost
30 Days Return Electricians Unlock Trade Access

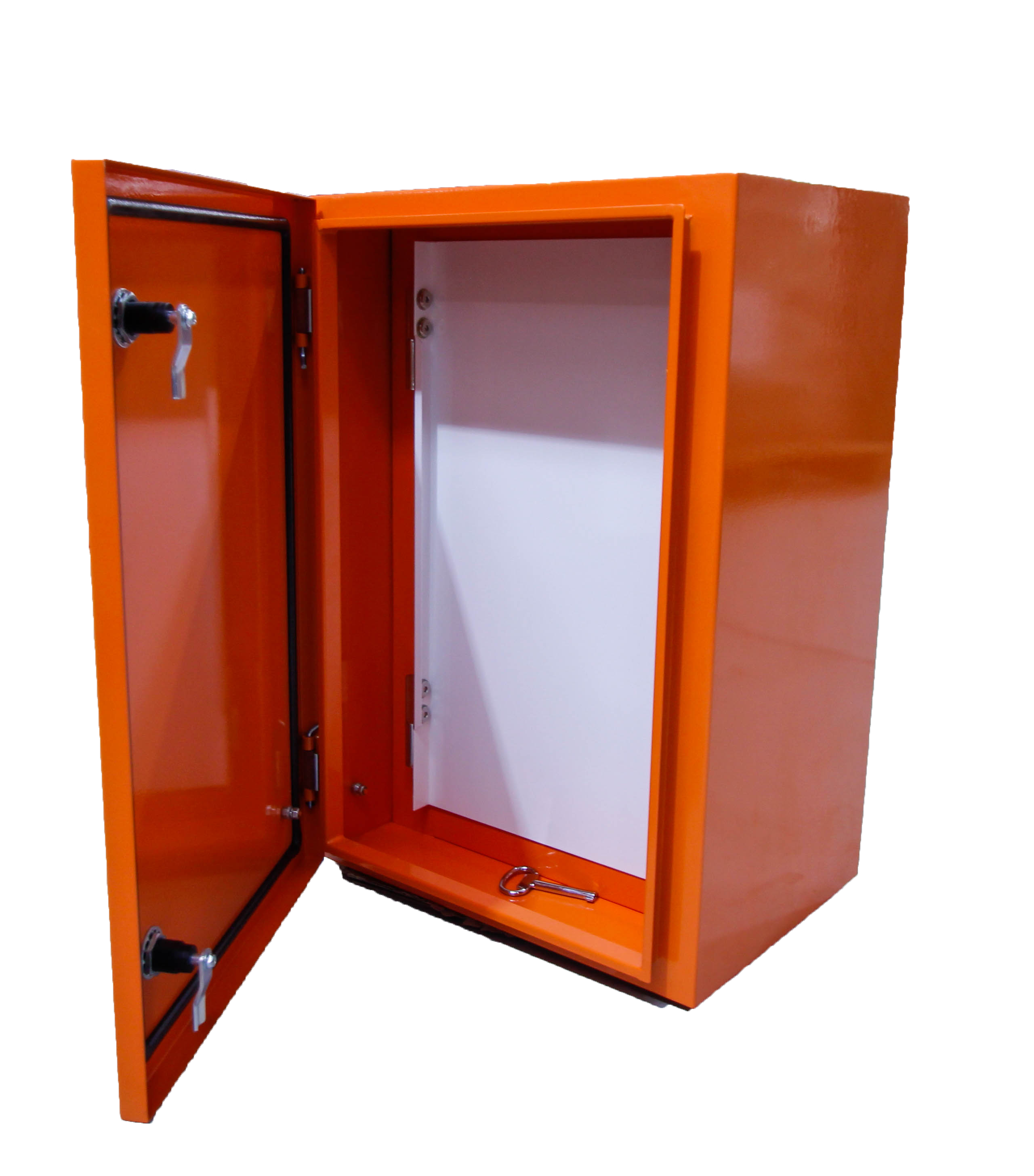

Bovara distribution board shell kit features IP66 enclosure only, 1600H x 600W x 200D, X15 orange gloss powder coat and blank escutcheon. Fit your own chassis.

Alternatively Known As: IP66 Distribution Board Enclosure Shell, Blank Distribution Board Cabinet, Electrical Switchboard Shell, Custom Chassis Enclosure

Technical Specifications
  • Enclosure Type: Distribution board shell kit
  • Ingress Protection: IP66 when correctly assembled and sealed
  • External Dimensions: 1600H x 600W x 200D mm
  • Escutcheon: Blank escutcheon included
  • Chassis: Not included; fit your own chassis
  • Finish: X15 orange gloss powder coat
  • Configuration: Enclosure only
  • Weight: 45 kg
  • Dimensions (H x L x W): 1600mm x 200mm x 600mm
  • Weight: 45 kg
Key Features
  • IP66 enclosure for protection against dust and powerful water jets when correctly assembled
  • Blank escutcheon supplied for custom chassis and equipment configuration
  • X15 orange gloss powder-coated finish for visibility and surface protection
  • 200 mm enclosure depth for space-conscious switchboard installations
  • Shell kit supplied without a pre-installed chassis
  • Suitable for custom distribution board and switchboard fabrication
Professional Installation Requirements
  • Final assembly, chassis installation, wiring and connection to an electrical installation should be completed by a suitably licensed electrician or switchboard builder. Cable entries and any modifications must be sealed appropriately to maintain the IP66 rating, with installation completed in accordance with AS/NZS 3000 and applicable switchboard assembly requirements.
Applications
  • Custom low-voltage distribution boards
  • Commercial and industrial electrical switchboards
  • Plant and machinery control panels
  • Retrofit and project-specific switchboard fabrication
  • Housing for electrical control and distribution equipment
Standards & Compliance
  • IP classification referenced to AS 60529, subject to correct assembly, cable entry treatment and sealing
  • AS/NZS 3000 applies to electrical installation and connection where incorporated into a fixed installation
  • The shell alone is not a complete AS/NZS 61439 assembly; final compliance depends on the selected chassis, installed equipment, assembly and verification
Environmental Benefits
  • Powder-coated metal enclosure components can be recovered and recycled at end of service life
  • Durable powder-coated finish can extend service life and reduce replacement waste
  • Shell-only construction allows chassis and equipment to be specified for the project, helping avoid unnecessary component replacement
Warranty Information

No specific Bovara warranty period was located. Australian Consumer Law statutory consumer guarantees apply; confirm any additional warranty terms with Bovara or the authorised distributor.

Available Now

Available through authorised Bovara distributors in Australia.
