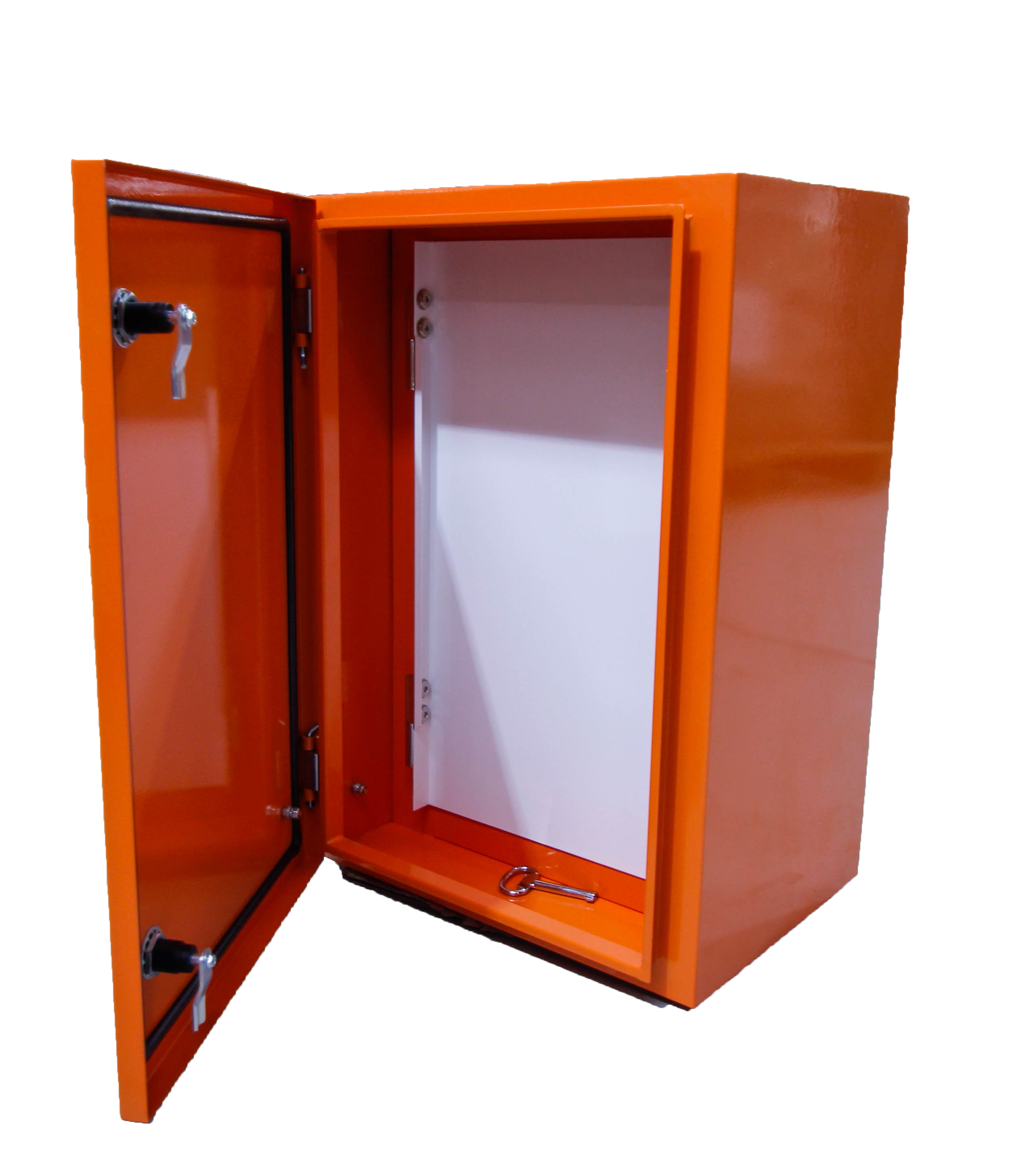

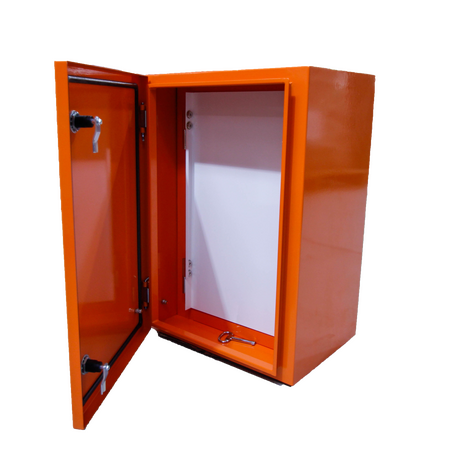

DB Shell Kit IP66 400x600x200mm Blank Escutcheon Orange Bovara
Bovara distribution board shell kit features IP66 enclosure only, 400H x 600W x 200D, X15 orange gloss powder coat and blank escutcheon. Fit your own chassis.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: IP66 Distribution Board Shell, Electrical Switchboard Enclosure, Blank Distribution Board Cabinet
Technical Specifications
- Enclosure Type: Distribution board shell kit
- Ingress Protection: IP66
- Material: Galvanised mild steel
- Finish: X15 orange gloss powder coating
- Escutcheon: Blank escutcheon supplied
- Chassis: Not included; fit your own chassis
- Configuration: Enclosure only
- Cable Entry: Top and bottom entry provisions
- Locks: Triangle-key quarter-turn locking system
- Compliance Reference: AS/NZS 61439.2:2016 applies to completed low-voltage switchgear assemblies
- Dimensions (H x L x W): 400mm x 600mm x 200mm
- Weight: 4.5 kg
Key Features
- IP66-rated enclosure for protection against dust and water ingress
- Blank escutcheon allows custom device cut-outs
- Zincanneal steel body for durable electrical enclosure construction
- Orange X15 gloss powder-coated finish for visibility and corrosion resistance
- Supplied as an enclosure shell only for custom chassis installation
- Suitable for custom distribution board and switchboard configurations
Professional Installation Requirements
- Installation, chassis selection, device mounting and electrical wiring should be completed by a licensed electrician in accordance with AS/NZS 3000 and the requirements applicable to the completed switchgear assembly. The IP66 rating must be maintained after all cable entries and components are fitted.
Applications
- Custom residential distribution boards
- Commercial and industrial electrical switchboards
- Outdoor electrical distribution enclosures
- Plant, machinery and infrastructure power distribution
- Custom low-voltage switchgear assemblies
Standards & Compliance
- AS 60529 for the IP enclosure classification
- AS/NZS 61439.2:2016 for applicable low-voltage switchgear and controlgear assemblies
- AS/NZS 3000:2018 for electrical installation requirements
Environmental Benefits
- Galvanised steel construction can be recycled at the end of its service life
- Durable powder-coated finish helps extend enclosure service life and reduce replacement waste
- Reusable shell format supports custom chassis selection rather than requiring a complete preconfigured board
- IP66 protection helps shield installed electrical equipment from environmental ingress and associated premature failure
Warranty Information
Warranty details are not publicly specified by Bovara; confirm applicable coverage with Bovara or the authorised distributor before purchase.
Available Now
Available through authorised Bovara distributors in Australia.
