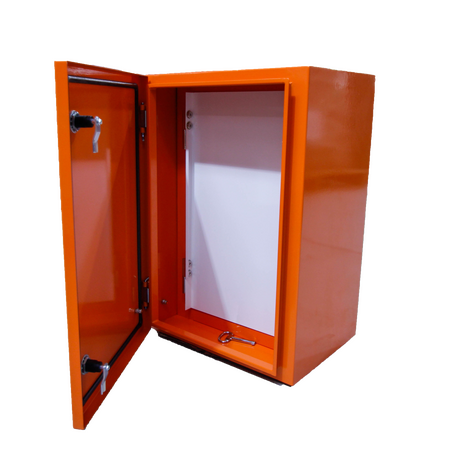

DB Shell Kit IP66 600x600x200mm Blank Escutcheon Orange Bovara

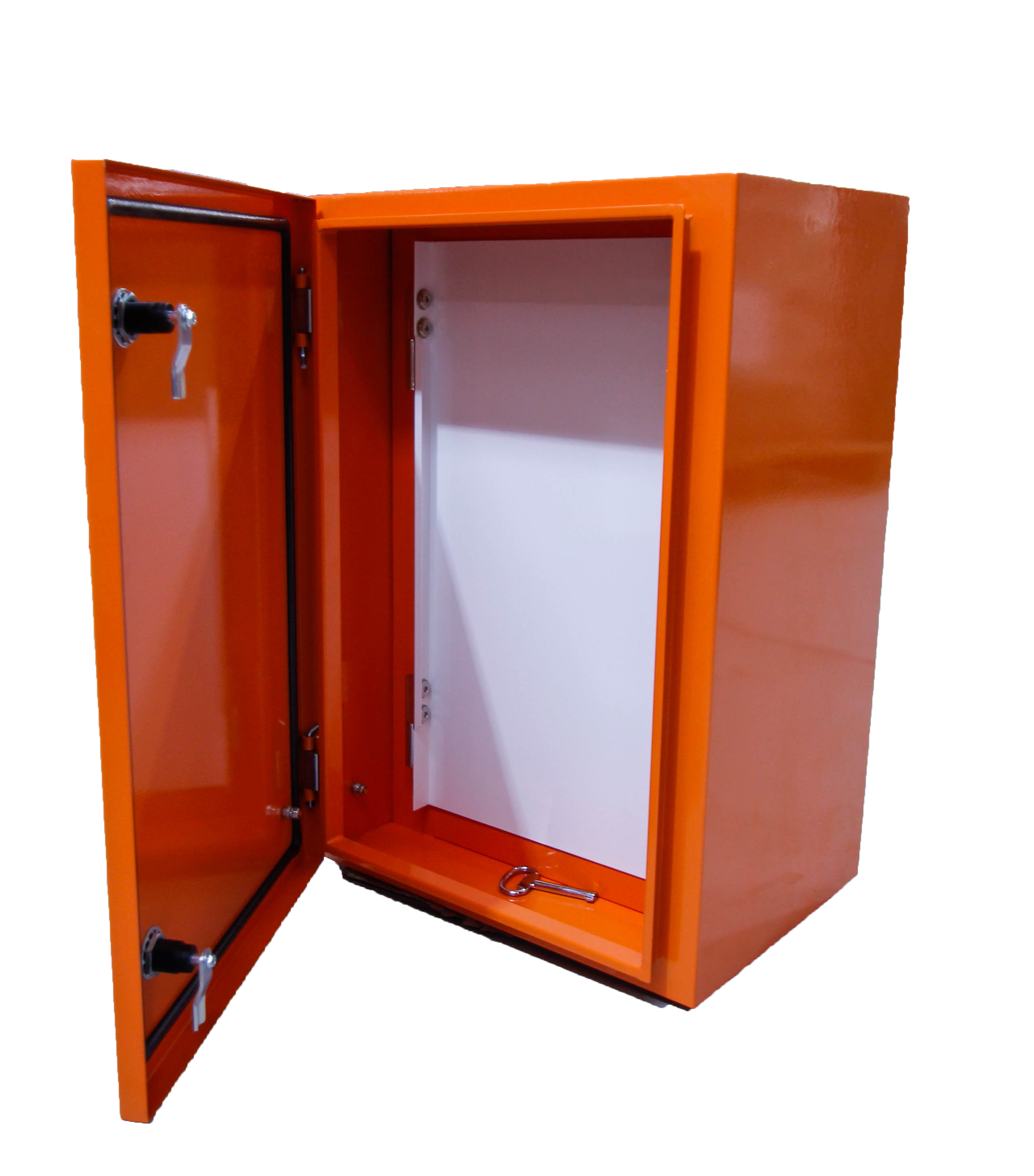

Bovara distribution board shell kit features IP66 enclosure only, 600H x 600W x 200D, X15 orange gloss powder coat and blank escutcheon. Fit your own chassis.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: IP66 distribution board enclosure shell, blank distribution board cabinet, electrical switchboard shell kit
Technical Specifications
- Product Code: DBSK0600102
- Enclosure Type: Distribution board shell kit
- Ingress Protection: IP66
- Material: Zincanneal steel
- Finish: X15 orange gloss powder coating
- Escutcheon: Blank escutcheon included
- Chassis: Not included; fit your own chassis
- Mounting: Wall-mounted electrical enclosure
- Cable Entry: Top and bottom entry provisions
- Application: Custom low-voltage distribution board assembly
- Dimensions (H x L x W): 600mm x 200mm x 600mm
- Weight: 18 kg
Key Features
- IP66-rated enclosure for protection against dust and powerful water jets
- Blank escutcheon allows custom equipment configuration
- Supplied as an enclosure shell without chassis or internal switchgear
- Durable X15 orange gloss powder-coated finish
- Zincanneal steel construction
- Suitable for custom distribution board, switchboard and control-panel applications
- Reusable shell format allows separately selected chassis and electrical equipment
Professional Installation Requirements
- Installation, chassis fitting, wiring and commissioning must be performed by a licensed electrician. The completed distribution board assembly must be designed, verified and installed in accordance with AS/NZS 3000 and applicable AS/NZS 61439 requirements.
Applications
- Custom residential distribution boards
- Commercial electrical distribution boards
- Industrial switchboard and control-panel enclosures
- Electrical infrastructure and plant installations
- Replacement or project-specific distribution board shells
Standards & Compliance
- AS/NZS 60529 for verification and classification of the IP66 enclosure rating
- AS/NZS 61439.2:2016 applies to the completed low-voltage switchgear and controlgear assembly
- AS/NZS 3000:2018 for electrical installation and wiring requirements
Environmental Benefits
- Zincanneal steel can be recycled at the end of the product's service life
- Durable powder-coated construction can extend service life and reduce replacement waste
- Reusable shell format allows internal chassis and equipment to be configured or replaced separately
Warranty Information
Bovara-specific warranty period is not publicly stated. Confirm warranty terms, exclusions and claim requirements with Bovara or the authorised distributor; Australian Consumer Law rights still apply.
Available Now
Available through authorised Bovara distributors in Australia.
