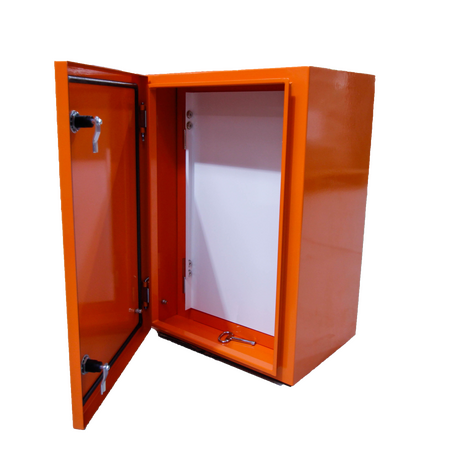

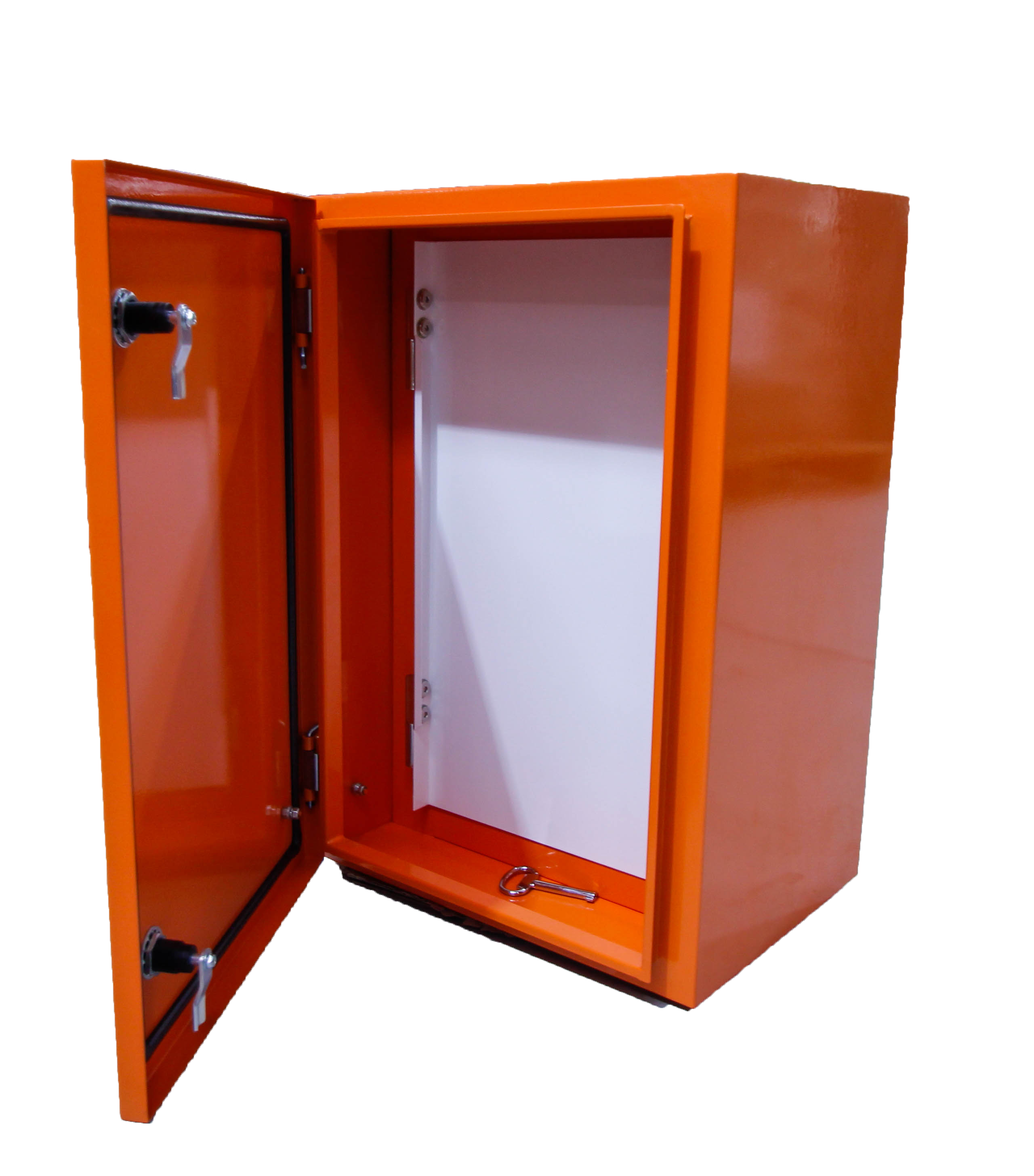

DB Shell Kit IP66 800x600x200mm Blank Escutcheon Orange Bovara
Bovara distribution board shell kit features IP66 enclosure only, 800H x 600W x 200D, X15 orange gloss powder coat and blank escutcheon. Fit your own chassis.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Bovara Distribution Board Shell, IP66 Electrical Enclosure, Blank Escutcheon Switchboard Enclosure
Technical Specifications
- Enclosure Type: Distribution board shell kit
- Ingress Protection: IP66
- Material: Zincanneal steel
- Finish: X15 orange gloss powder coat
- Escutcheon: Blank, suitable for custom cut-outs
- Chassis: Not included; fit your own chassis
- Mounting: Wall mounted
- Cable Entry: Top and bottom entry provision
- Escutcheon Clearance: Accommodates devices up to 51 mm
- Configuration: Enclosure shell only
- Dimensions (H x L x W): 800mm x 600mm x 200mm
- Weight: 24.5 kg
Key Features
- IP66 protection against dust ingress and powerful water jets
- Blank escutcheon for project-specific device cut-outs
- Zincanneal steel construction for strength and durability
- Orange X15 gloss powder-coated finish for visibility and corrosion resistance
- Designed for customer-supplied chassis and custom distribution board layouts
- Suitable for custom electrical distribution and switchboard fabrication
Professional Installation Requirements
- Installation, chassis fitting, wiring and final assembly must be completed by a suitably licensed electrical contractor. The completed distribution board should be designed, assembled, verified and installed in accordance with AS/NZS 3000 and the applicable AS/NZS 61439 requirements.
Applications
- Custom distribution boards
- Commercial and industrial switchboards
- Electrical control and protection enclosures
- Custom low-voltage power distribution assemblies
- Indoor or outdoor electrical installations requiring IP66 enclosure protection
Standards & Compliance
- AS 60529:2025 for classification of the IP66 enclosure rating
- AS/NZS 61439.2:2016 applicable to the completed low-voltage switchgear and controlgear assembly
Environmental Benefits
- Zincanneal steel can be recycled at end of service life
- Powder-coated finish helps extend service life and reduce replacement waste
- Reusable shell format can reduce material waste in custom board fabrication
- Durable construction may reduce maintenance and replacement frequency
Warranty Information
No specific Bovara warranty period for this shell kit was located publicly. Confirm applicable manufacturer or distributor warranty terms at purchase; Australian Consumer Law rights continue to apply.
Available Now
Available through authorised Bovara distributors in Australia.
