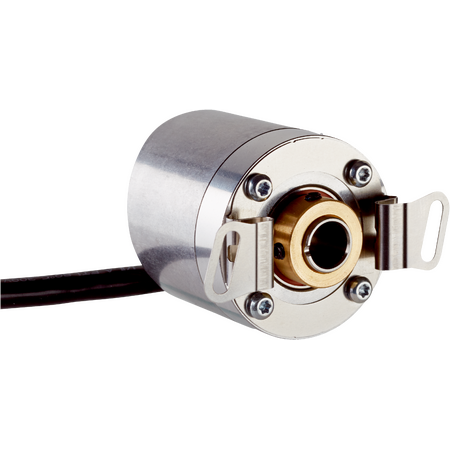

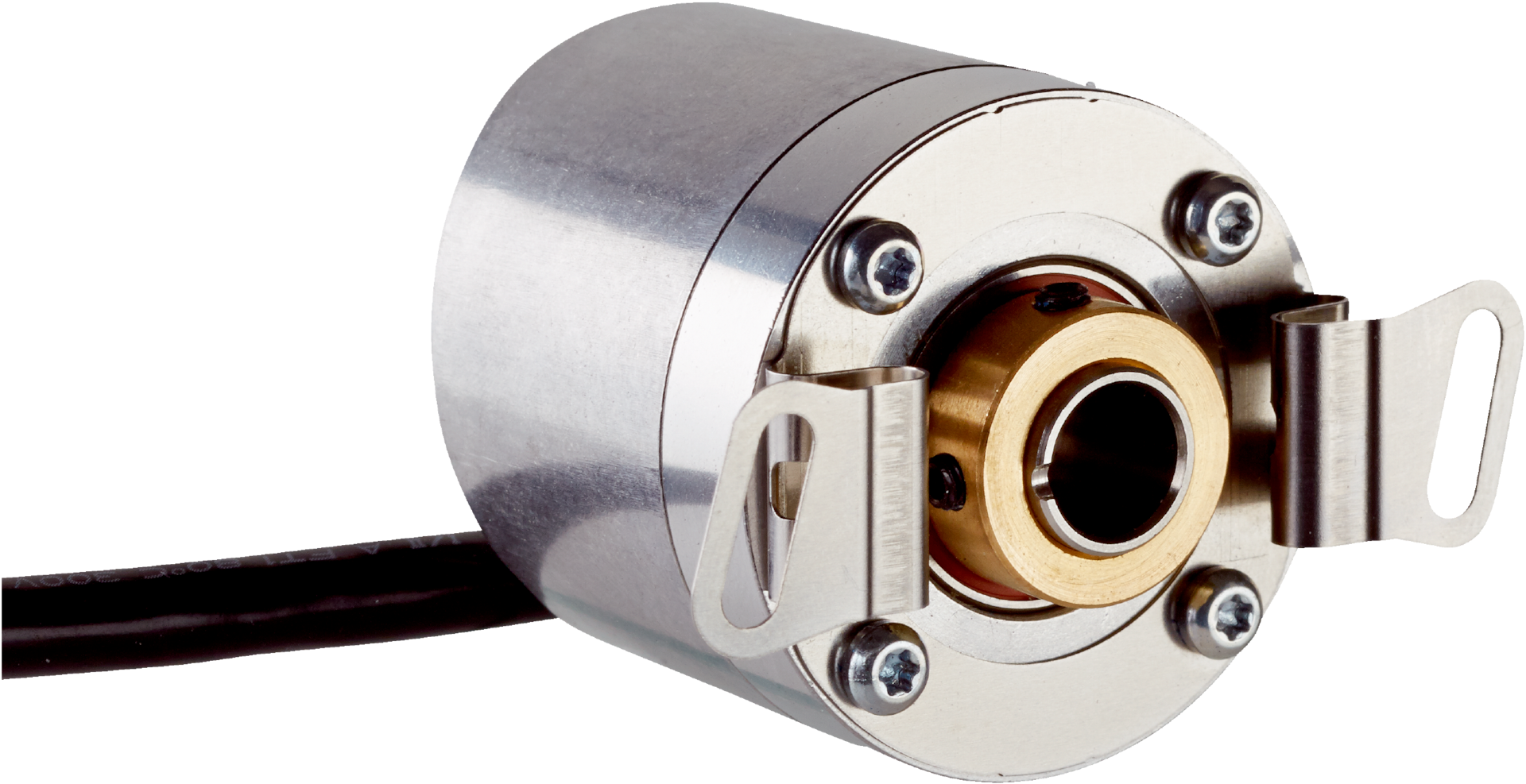

DBS36E-BBEN00300 | Incremental encoders
The SICK DBS36E-BBEN00300 is a high-performance incremental encoder featuring 300 pulses per revolution, robust aluminum construction, and IP65 protection, ideal for industrial automation and precise motion control applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: DBS36E-BBEN00300 | Incremental encoders
Brand: SICK
SKU: 1068271
Alternatively Known As: Incremental rotary encoder, rotary encoder 300 PPR, SICK incremental encoder, DBS36 encoder
Technical Specifications
- Pulses per revolution: 300
- Measuring step: 90°, electric/pulses per revolution
- Measuring step deviation: ±18°
- Error limits: ±54°
- Duty cycle: ≤ 0.5 ± 5%
- Communication interface: Incremental HTL / Push pull
- Number of signal channels: 6
- Initialization time: <3 ms
- Output frequency: ≤300 kHz
- Load current: ≤30 mA
- Power consumption: ≤0.5 W (without load)
- Connection type: Cable, 8-wire, universal, 10 m
- Supply voltage: 7 to 30 V
- Reference signal: 1, 90° electric, logically gated with A and B
- Reverse polarity protection: Yes
- Short-circuit protection: Yes
- Mechanical design: Blind hollow shaft
- Shaft diameter: 8 mm
- Shaft material: Stainless steel
- Flange material: Aluminum
- Housing material: Aluminum
- Cable material: PVC
- Start up torque: +0.5 Ncm at 20 °C
- Operating torque: 0.4 Ncm at 20 °C
- Permissible static movement: ±0.3 mm radial, ±0.5 mm axial
- Permissible dynamic movement: ±0.1 mm radial, ±0.2 mm axial
- Operating speed: 6,000 min⁻¹
- Maximum operating speed: ≤8,000 min⁻¹
- Moment of inertia of rotor: 0.8 gcm²
- Bearing lifetime: 2 x 10^9 revolutions
- Angular acceleration: ≤500,000 rad/s²
- EMC: According to EN 61000-6-2 and EN 61000-6-3 (class A)
- Enclosure rating: IP65
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: –20 °C to +85 °C (–35 °C to +95 °C on request)
- Storage temperature range: –40 °C to +100 °C
- Resistance to shocks: 100 g, 6 ms
- Resistance to vibration: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 36mm x 60mm x 36mm
- Weight: 0.15 kg
Key Features
- 300 pulses per revolution with ±18° measuring step deviation
- 6-channel incremental HTL / Push pull communication interface
- Robust aluminum housing with IP65 enclosure rating
- Operating temperature range from –20 °C to +85 °C
- Cable connection with 8-wire universal 10 m cable
- Reverse polarity and short-circuit protection
- High mechanical durability with bearing lifetime of 2 x 10^9 revolutions
- Low power consumption ≤ 0.5 W without load
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper connection and compliance with electrical safety standards.
Applications
- Industrial automation for precise position and speed measurement
- Robotics and conveyor systems requiring accurate feedback
- Machine tools and packaging machinery
- General use in control systems requiring incremental encoders
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption reduces energy usage in industrial applications
- Durable design minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK DBS36E-BBEN00300 incremental encoder is available for immediate purchase, ideal for industrial automation and precise motion control applications.
