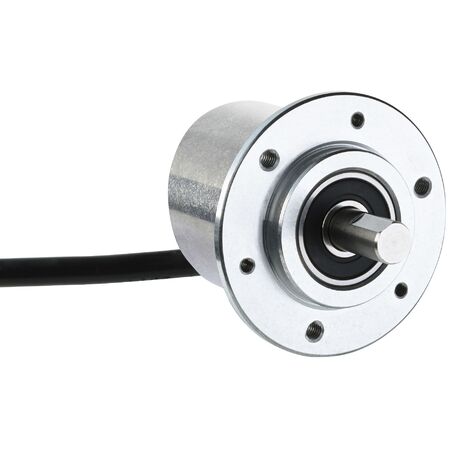

DBS50E-S5EK00600 Incremental encoders

BRAND: SICK
SKU: 1067106
$357.00 List price: $448.70
+ −
30 Days Return Electricians Unlock Trade Access
The SICK DBS50E-S5EK00600 is a robust incremental encoder offering 600 pulses per revolution, designed for precise position and speed feedback in industrial

Product Name/Title: DBS50E-S5EK00600 | Incremental encoders

Brand: SICK

SKU: 1067106

Alternatively Known As: Incremental rotary encoder, rotary encoder 600 PPR, industrial encoder, position sensor

Technical Specifications
  • Pulses per revolution: 600
  • Measuring step: 90° electric / pulses per revolution
  • Measuring step deviation: ±18° / pulses per revolution
  • Error limits: ±54° / pulses per revolution
  • Duty cycle: ≤ 0.5 ± 5%
  • Communication interface: Incremental HTL / Push pull
  • Number of signal channels: 6
  • Initialization time: < 3 ms
  • Output frequency: ≤ 300 kHz
  • Load current: ≤ 30 mA
  • Power consumption: < 0.5 W (without load)
  • Connection type: Cable, 8-wire, universal, 1.5 m
  • Supply voltage: 7 to 30 V
  • Reference signal: 1, 90° electric, logically gated with A and B
  • Reverse polarity protection: Yes
  • Short-circuit protection of outputs: Yes
  • Mechanical design: Solid shaft, face mount flange
  • Shaft diameter: 8 mm with flat
  • Shaft length: 15.5 mm
  • Shaft material: Stainless steel
  • Flange and housing material: Aluminum
  • Cable material: PVC
  • Start up torque: +0.9 Ncm at 20 °C
  • Operating torque: 0.6 Ncm at 20 °C
  • Permissible shaft loading: 30 N axial, 50 N radial
  • Operating speed: 6,000 min⁻¹
  • Maximum operating speed: 8,000 min⁻¹
  • Moment of inertia of rotor: 0.65 gcm²
  • Bearing lifetime: 2 x 10^9 revolutions
  • Angular acceleration: ≤ 500,000 rad/s²
  • EMC: According to EN 61000-6-2 and EN 61000-6-3 (class A)
  • Enclosure rating: IP65
  • Permissible relative humidity: 90% (no condensation)
  • Operating temperature range: -20 °C to +85 °C (up to +95 °C on request)
  • Storage temperature range: -40 °C to +100 °C
  • Shock resistance: 100 g, 6 ms
  • Vibration resistance: 20 g, 10 Hz to 2,000 Hz
  • Dimensions (H x L x W): 50mm x 60mm x 50mm
  • Weight: 0.18 kg
Key Features
  • Incremental encoder with 600 pulses per revolution
  • Solid shaft with 8 mm diameter and flat
  • High operating speed up to 8,000 min⁻¹
  • IP65 rated enclosure for dust and water protection
  • Reverse polarity and short-circuit protection
  • Low power consumption under 0.5 W
  • 6-channel HTL / Push pull communication interface
  • Robust aluminum housing and flange
  • Operating temperature range from -20 °C to +85 °C
Professional Installation Requirements
  • Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
  • Industrial automation for position and speed measurement
  • Robotics and conveyor systems
  • Machine tool feedback systems
  • Motion control in manufacturing processes
Standards & Compliance
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
  • Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
  • Low power consumption reduces energy usage
  • Durable design minimizes waste and replacement frequency
Warranty Information

Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.

Available Now

The SICK DBS50E-S5EK00600 Incremental Encoder is available for immediate purchase, ideal for industrial automation and motion control applications.
