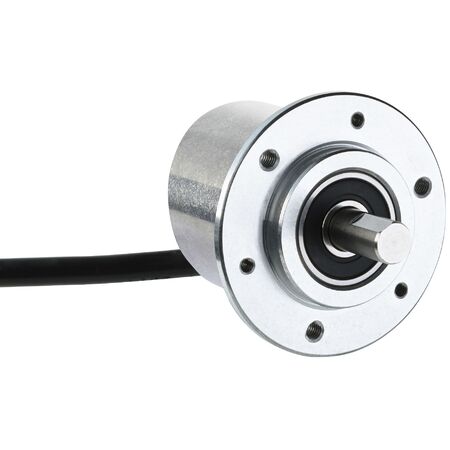

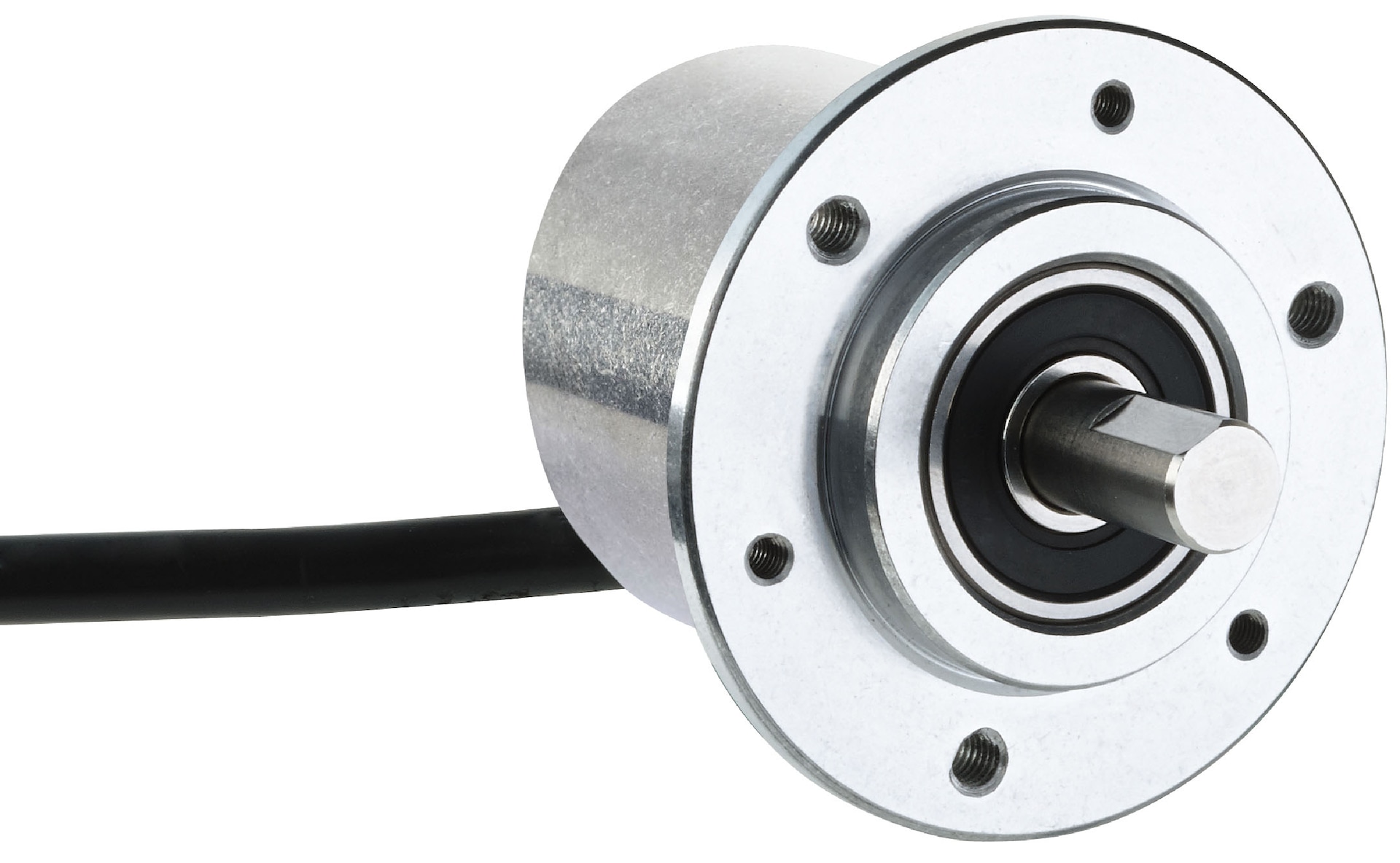

DBS50E-S5EM02000 | Incremental encoders
The SICK DBS50E-S5EM02000 is a high-performance incremental encoder offering 2,000 pulses per revolution, designed for industrial automation and motion control applications with robust construction and reliable signal output.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: DBS50E-S5EM02000 | Incremental encoders
Brand: SICK
SKU: 1110614
Alternatively Known As: Incremental rotary encoder, rotary encoder 2000 PPR, SICK incremental encoder, industrial position sensor
Technical Specifications
- Pulses per revolution: 2,000
- Measuring step: 90° electric / pulses per revolution
- Measuring step deviation: ±18° / pulses per revolution
- Error limits: ±54° / pulses per revolution
- Duty cycle: ≤ 0.5 ± 5%
- Communication interface: Incremental HTL / Push pull
- Number of signal channels: 6
- Initialization time: < 3 ms
- Output frequency: ≤ 300 kHz
- Load current: ≤ 30 mA
- Power consumption: < 0.5 W (without load)
- Connection type: Cable, 8-wire, universal, 5 m
- Supply voltage: 7 to 30 V
- Reference signal: 1, 90° electric, logically gated with A and B
- Reverse polarity protection: Yes
- Short-circuit protection: Yes
- Mechanical design: Solid shaft, face mount flange
- Shaft diameter: 8 mm with flat
- Shaft length: 15.5 mm
- Shaft material: Stainless steel
- Flange material: Aluminum
- Housing material: Aluminum
- Cable material: PVC
- Start up torque: 0.9 Ncm at 20°C
- Operating torque: 0.6 Ncm at 20°C
- Permissible shaft loading: 30 N axial, 50 N radial
- Operating speed: 6,000 min⁻¹
- Maximum operating speed: 8,000 min⁻¹
- Moment of inertia of rotor: 0.65 gcm²
- Bearing lifetime: 2 x 10^9 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC: According to EN 61000-6-2 and EN 61000-6-3 (class A)
- Enclosure rating: IP65
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: -20°C to +85°C (extended range on request)
- Storage temperature range: -40°C to +100°C
- Shock resistance: 100 g, 6 ms
- Vibration resistance: 20 g, 10 Hz to 2000 Hz
- Dimensions (H x L x W): 58mm x 40mm x 58mm
- Weight: 0.18 kg
Key Features
- High resolution with 2,000 pulses per revolution
- Robust solid shaft design with stainless steel shaft and aluminum housing
- IP65 rated enclosure for protection against dust and water
- Fast initialization time under 3 ms
- Reverse polarity and short-circuit protection
- Operating temperature range from -20°C to +85°C
- High mechanical durability with bearing lifetime of 2 billion revolutions
- Supports HTL / Push pull incremental communication interface
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring, mounting, and compliance with safety standards.
Applications
- Industrial automation for precise position and speed measurement
- Robotics and conveyor systems requiring accurate feedback
- Machine tools and packaging machinery
- General motion control applications
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption under 0.5 W reduces energy usage
- Durable materials and long bearing life minimize waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK DBS50E-S5EM02000 incremental encoder is available for immediate purchase, ideal for industrial automation and motion control applications requiring high precision.
