DBS50E-S5PM02000 | Incremental encoders

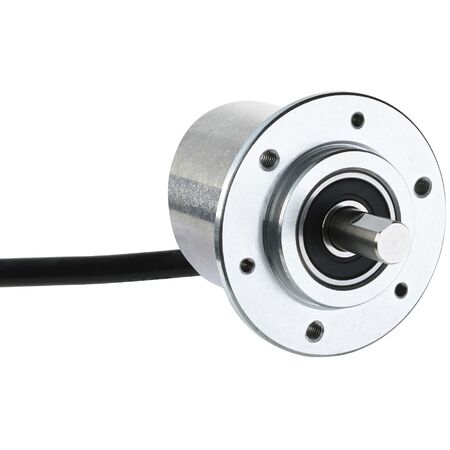

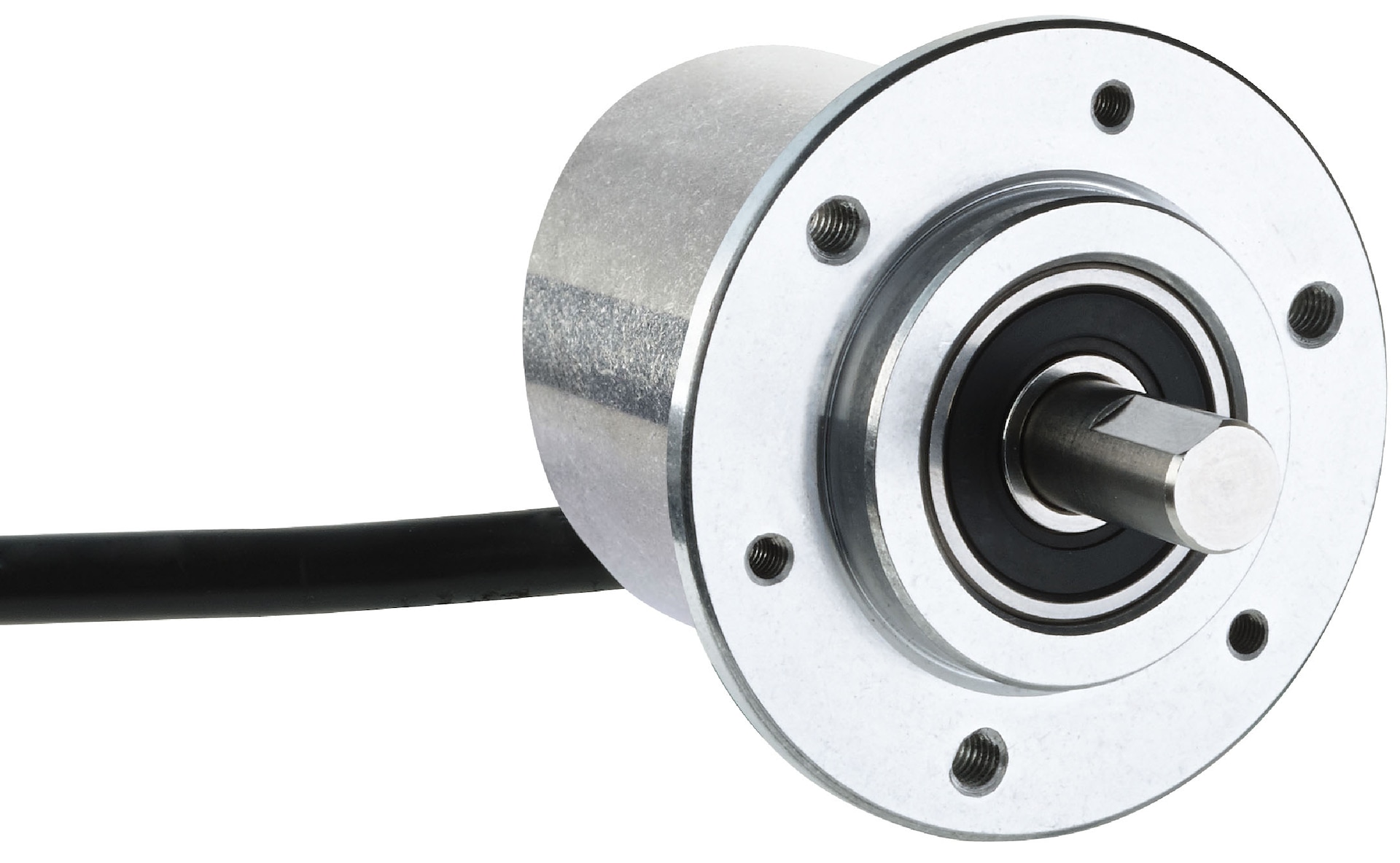

The SICK DBS50E-S5PM02000 is a robust incremental encoder featuring 2000 pulses per revolution, designed for precise position and speed feedback in industrial automation applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: DBS50E-S5PM02000 | Incremental encoders
Brand: SICK
SKU: 1100703
Alternatively Known As: Incremental rotary encoder, 2000 PPR encoder, SICK DBS50E encoder, incremental shaft encoder
Technical Specifications
- Pulses per revolution: 2000
- Measuring step: 90° electric/pulses per revolution
- Measuring step deviation: ±18° per pulse
- Error limits: ±54° per pulse
- Duty cycle: ≤ 0.5 ± 5%
- Communication interface: Incremental, Open Collector
- Number of signal channels: 3
- Initialization time: < 3 ms
- Output frequency: ≤ 300 kHz
- Load current: ≤ 30 mA
- Operating current: ≤ 50 mA (no load)
- Connection type: 5-wire cable, 5 m length
- Supply voltage: 4.5 to 5.5 V
- Reference signal: 1, 90° electric, gated with A and B
- Reverse polarity protection: Yes
- Short-circuit protection: Yes
- Mechanical design: Solid shaft, face mount flange
- Shaft diameter: 8 mm with flat
- Shaft length: 15.5 mm
- Shaft material: Stainless steel
- Flange and housing material: Aluminum
- Cable material: PVC
- Start-up torque: 0.9 Ncm at 20°C
- Operating torque: 0.6 Ncm at 20°C
- Permissible shaft loading: 30 N axial, 50 N radial
- Operating speed: 6000 min⁻¹ typical, max 8000 min⁻¹
- Moment of inertia: 0.65 gcm²
- Bearing lifetime: 2 x 10^9 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC: Compliant with EN 61000-6-2 and EN 61000-6-3 (class A)
- Enclosure rating: IP65
- Operating temperature: -20°C to +85°C (optionally -35°C to +95°C)
- Storage temperature: -40°C to +100°C
- Shock resistance: 100 g, 6 ms
- Vibration resistance: 20 g, 10 Hz to 2000 Hz
- Dimensions (H x L x W): 50mm x 50mm x 50mm
- Weight: 0.18 kg
Key Features
- Incremental encoder with 2000 pulses per revolution
- Solid shaft with 8 mm diameter and flat
- High operating speed up to 8000 min⁻¹
- IP65 rated enclosure for dust and water protection
- Reverse polarity and short-circuit protection
- Low start-up torque of 0.9 Ncm
- Cable connection with 5-wire universal 5 m cable
- High reliability with MTTFD of 600 years (EN ISO 13849-1)
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with incremental encoders and electrical safety standards.
Applications
- Industrial automation for position and speed measurement
- Robotics and conveyor systems
- Machine tool feedback
- Motion control systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable aluminum housing extends product life reducing waste
- Low power consumption electronics minimize energy use
- High reliability reduces need for frequent replacements
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK DBS50E-S5PM02000 incremental encoder is available for immediate purchase, ideal for industrial automation and motion control applications.
