DBS50E-SKAM00360 | Incremental encoders

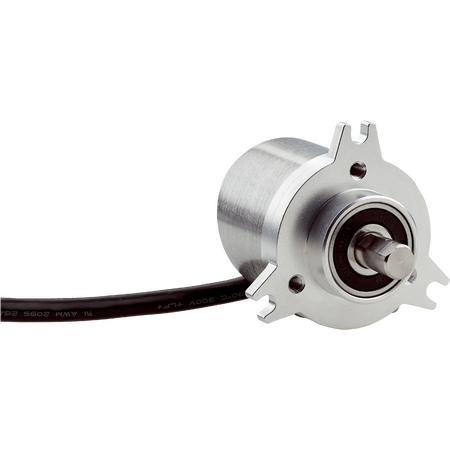

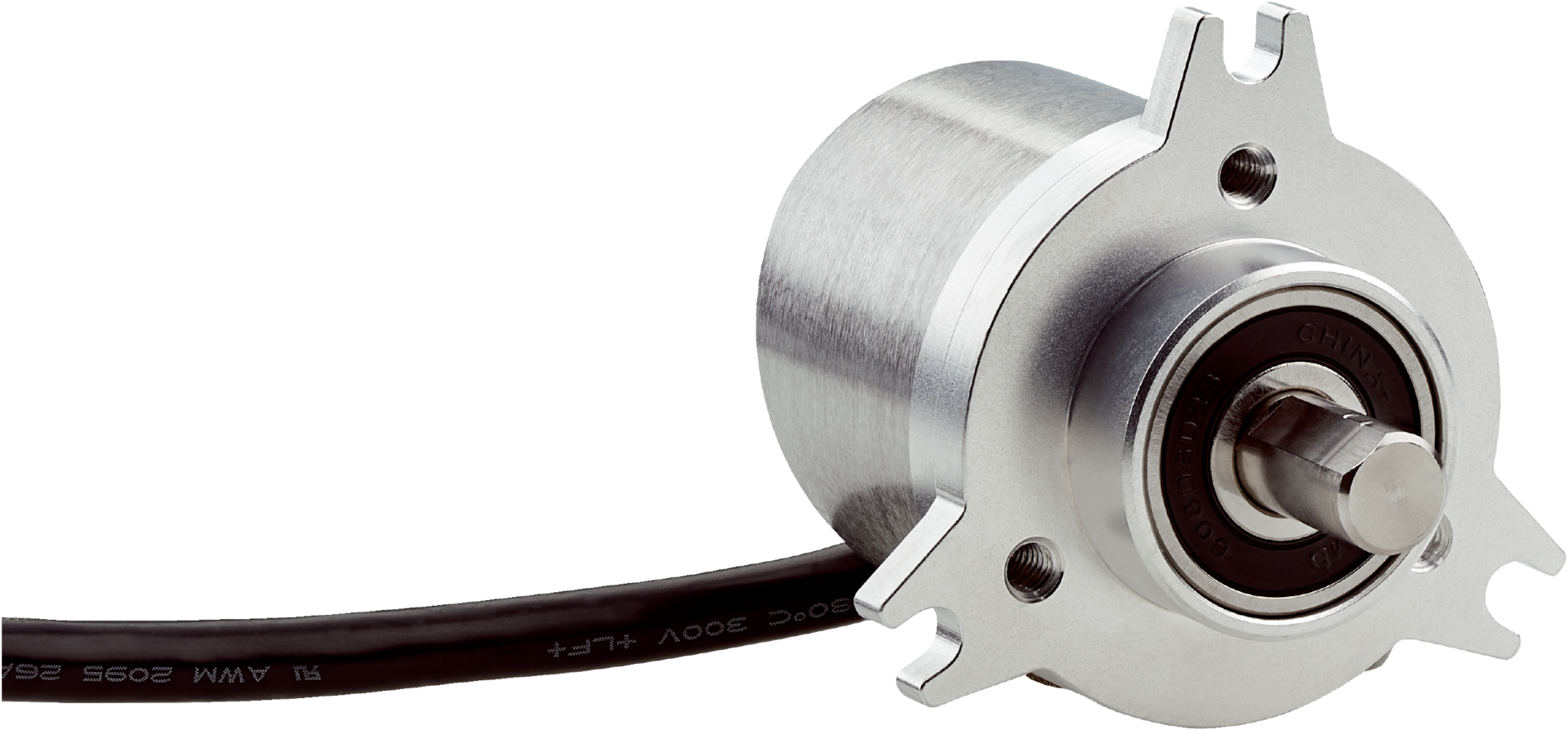

The SICK DBS50E-SKAM00360 is a robust incremental encoder featuring 360 pulses per revolution, designed for precise position and speed measurement in industrial automation with IP65 protection and stainless steel shaft.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: DBS50E-SKAM00360 | Incremental encoders
Brand: SICK
SKU: 1109514
Alternatively Known As: Incremental rotary encoder, rotary pulse encoder, shaft encoder, position encoder, speed encoder
Technical Specifications
- Pulses per revolution: 360
- Measuring step: 90° electric / pulses per revolution
- Measuring step deviation: ±18°
- Error limits: ±54°
- Duty cycle: ≤ 0.5 ± 5%
- Communication interface: Incremental TTL / RS-422
- Number of signal channels: 6
- Initialization time: < 3 ms
- Output frequency: ≤ 300 kHz
- Load current: ≤ 30 mA
- Operating current: ≤ 50 mA (without load)
- Connection type: Cable, 8-wire, universal, 5 m
- Supply voltage: 4.5 to 5.5 V
- Reference signal: 1, positioned at 90° electric, logically gated with A and B
- Short-circuit protection: Yes
- Mechanical design: Solid shaft, face mount flange with 3xM4 screws
- Shaft diameter: 8 mm with flat
- Shaft length: 13 mm
- Shaft material: Stainless steel
- Flange material: Aluminum
- Housing material: Aluminum
- Cable material: PVC
- Start-up torque: 0.9 Ncm at 20 °C
- Operating torque: 0.6 Ncm at 20 °C
- Permissible shaft loading: 30 N axial, 50 N radial
- Operating speed: 6,000 min⁻¹
- Maximum operating speed: 8,000 min⁻¹
- Moment of inertia of rotor: 0.65 gcm²
- Bearing lifetime: 2 x 10^9 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC: Compliant with EN 61000-6-2 and EN 61000-6-3 (class A)
- Enclosure rating: IP65
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: -20 °C to +85 °C (extended range on request)
- Storage temperature range: -40 °C to +100 °C
- Shock resistance: 100 g, 6 ms
- Vibration resistance: 20 g, 10 Hz to 2000 Hz
- Dimensions (H x L x W): 50mm x 70mm x 50mm
- Weight: 0.18 kg
Key Features
- 360 pulses per revolution with ±18° measuring step deviation
- 6-channel incremental communication interface (TTL / RS-422)
- Solid shaft with 8 mm diameter and 13 mm length made of stainless steel
- High operating speed up to 6,000 min⁻¹ (max 8,000 min⁻¹)
- IP65 rated enclosure for dust and water protection
- Short-circuit protected outputs
- Low start-up torque of 0.9 Ncm and operating torque of 0.6 Ncm
- Cable connection with 8-wire universal 5 m cable
- Wide operating temperature range from -20 °C to +85 °C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and calibration.
Applications
- Industrial automation and control systems
- Position and speed measurement in machinery
- Robotics and conveyor systems
- Safety-related monitoring applications
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low power consumption with efficient electronics
- Robust IP65 housing protects against environmental contaminants
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK DBS50E-SKAM00360 incremental encoder is available for immediate purchase, ideal for industrial automation and precise motion control applications.
