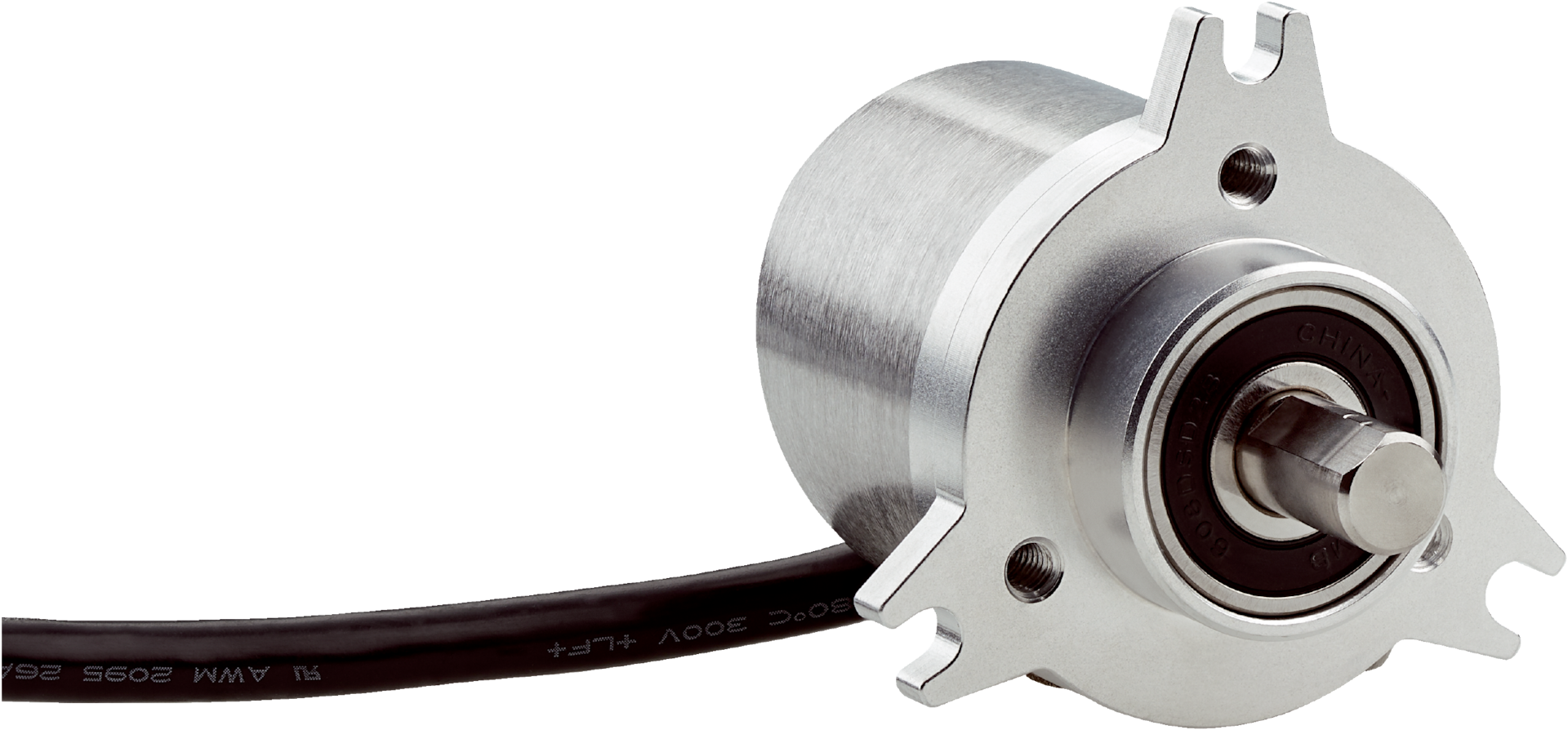

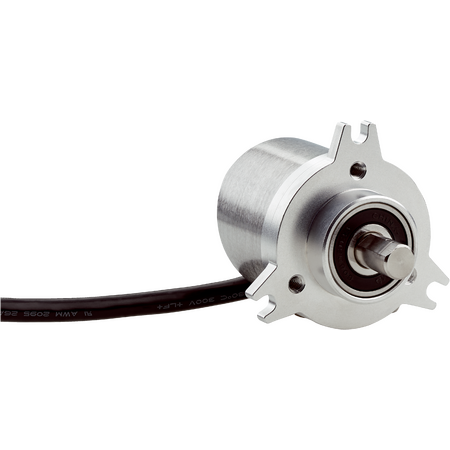

DBS50E-SKEJ00360 | Incremental encoders
The SICK DBS50E-SKEJ00360 is a high-performance incremental encoder with 360 pulses per revolution, designed for precise motion feedback in industrial automation and safety applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: DBS50E-SKEJ00360 | Incremental encoders
Brand: SICK
SKU: 1109490
Alternatively Known As: Incremental rotary encoder, rotary encoder 360 PPR, HTL encoder, solid shaft encoder, SICK encoder DBS50E
Technical Specifications
- Pulses per revolution: 360
- Measuring step: 90° electric/pulses per revolution
- Measuring step deviation: ±18°
- Error limits: ±54°
- Duty cycle: ≤ 0.5 ± 5%
- Communication interface: Incremental HTL / Push pull
- Number of signal channels: 6
- Initialization time: < 3 ms
- Output frequency: ≤ 300 kHz
- Load current: ≤ 30 mA
- Power consumption: < 0.5 W (without load)
- Connection type: Cable, 8-wire, 0.5 m
- Supply voltage: 7 to 30 V
- Reference signal: 1, 90° electric, logically gated with A and B
- Reverse polarity protection: Yes
- Short-circuit protection: Yes
- Mechanical design: Solid shaft, face mount flange 3xM4
- Shaft diameter: 8 mm with flat
- Shaft length: 13 mm
- Shaft material: Stainless steel
- Flange material: Aluminum
- Housing material: Aluminum
- Cable material: PVC
- Start up torque: 0.9 Ncm at 20°C
- Operating torque: 0.6 Ncm at 20°C
- Permissible shaft loading: 30 N axial, 50 N radial
- Operating speed: 6,000 min⁻¹
- Maximum operating speed: 8,000 min⁻¹
- Moment of inertia of rotor: 0.65 gcm²
- Bearing lifetime: 2 x 10^9 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC: EN 61000-6-2 and EN 61000-6-3 (class A)
- Enclosure rating: IP65
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: -20°C to +85°C (up to +95°C on request)
- Storage temperature range: -40°C to +100°C
- Shock resistance: 100 g, 6 ms
- Vibration resistance: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 50mm x 80mm x 50mm
- Weight: 0.18 kg
Key Features
- 360 pulses per revolution with 90° electric measuring step
- High accuracy with ±18° measuring step deviation and ±54° error limits
- 6-channel incremental HTL / Push pull communication interface
- Fast initialization time under 3 ms and output frequency up to 300 kHz
- Robust mechanical design with solid stainless steel shaft and aluminum housing
- IP65 rated enclosure for dust and water resistance
- Wide operating temperature range from -20°C to +85°C
- Reverse polarity and short-circuit protection
- Long bearing lifetime of 2 billion revolutions
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and mechanical integration of incremental encoders to ensure proper connection and alignment.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Conveyor and material handling systems
- Machine tool positioning and feedback
- Safety-related monitoring in machinery
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption under 0.5 W reduces energy usage
- Durable materials and long bearing life minimize waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK DBS50E-SKEJ00360 incremental encoder is available for immediate purchase, ideal for industrial automation and safety-related applications requiring precise rotary position feedback.
