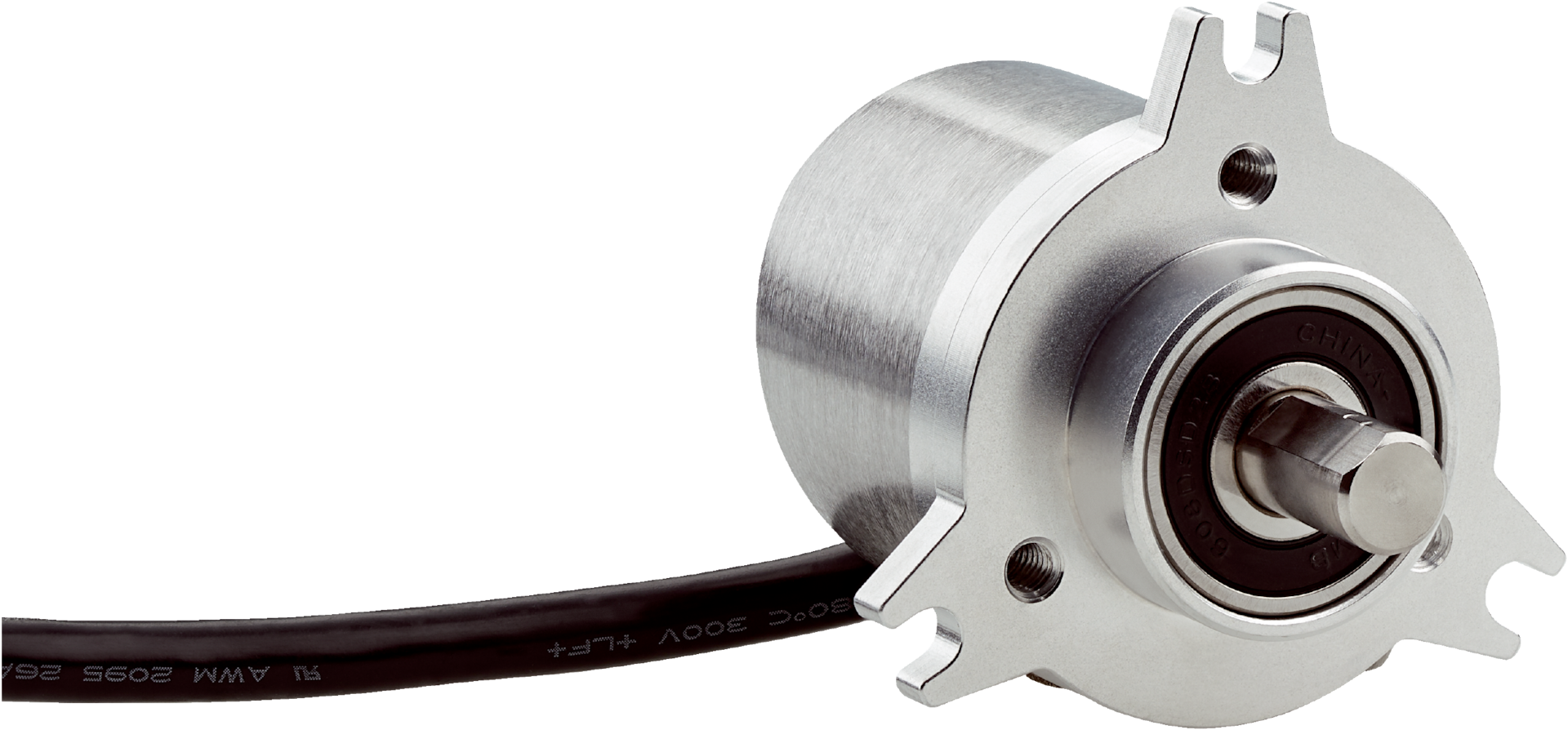

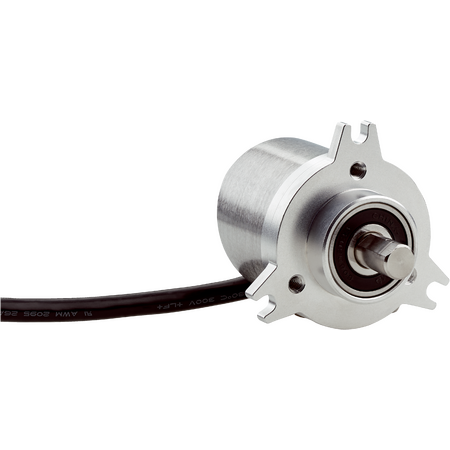

Product Name/Title: DBS50E-SKEK00500 | Incremental encoders
Brand: SICK
SKU: 1114308
Alternatively Known As: Incremental rotary encoder, rotary position sensor, industrial encoder, shaft encoder
Technical Specifications
- Pulses per revolution: 500
- Measuring step: 90° electric / pulses per revolution
- Measuring step deviation: ±18° / pulses per revolution
- Error limits: ±54° / pulses per revolution
- Duty cycle: ≤ 0.5 ± 5%
- Communication interface: Incremental HTL / Push pull
- Number of signal channels: 6
- Initialization time: < 3 ms
- Output frequency: ≤ 300 kHz
- Load current: ≤ 30 mA
- Power consumption: < 0.5 W (without load)
- Connection type: Cable, 8-wire, universal, 1.5 m
- Supply voltage: 7 to 30 V
- Reference signal: 1, positioned at 90° electric, logically gated with A and B
- Reverse polarity protection: Yes
- Short-circuit protection of outputs: Yes
- Mechanical design: Solid shaft, face mount flange with 3xM4
- Shaft diameter: 8 mm with flat
- Shaft length: 13 mm
- Shaft material: Stainless steel
- Flange material: Aluminum
- Housing material: Aluminum
- Cable material: PVC
- Start up torque: 0.9 Ncm at 20°C
- Operating torque: 0.6 Ncm at 20°C
- Permissible shaft loading: 30 N axial, 50 N radial
- Operating speed: 6,000 min⁻¹
- Maximum operating speed: 8,000 min⁻¹
- Moment of inertia of rotor: 0.65 gcm²
- Bearing lifetime: 2 x 10^9 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC: According to EN 61000-6-2 and EN 61000-6-3 (class A)
- Enclosure rating: IP65
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: -20°C to +85°C (up to +95°C on request)
- Storage temperature range: -40°C to +100°C
- Resistance to shocks: 100 g, 6 ms
- Resistance to vibration: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 50mm x 80mm x 50mm
- Weight: 0.18 kg
