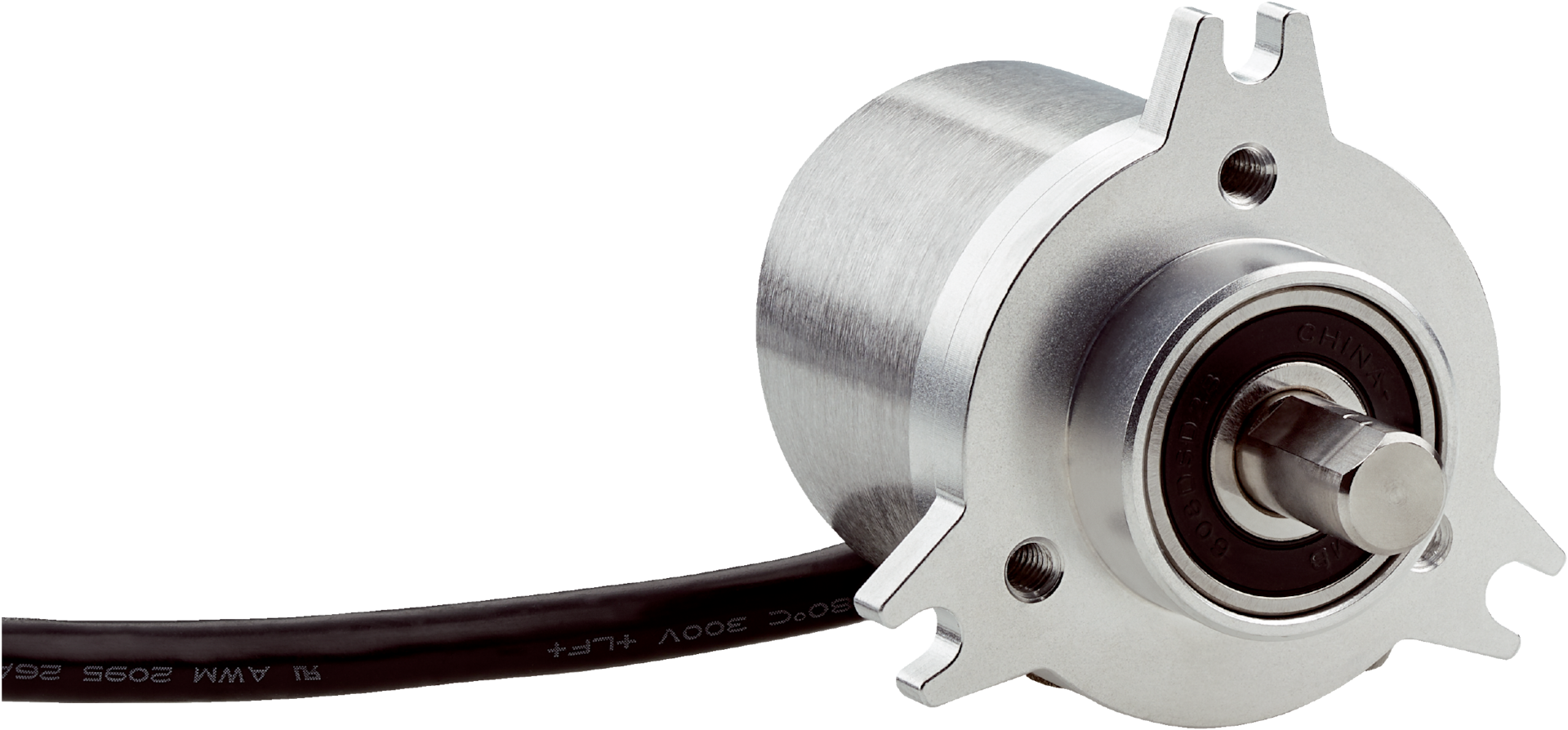

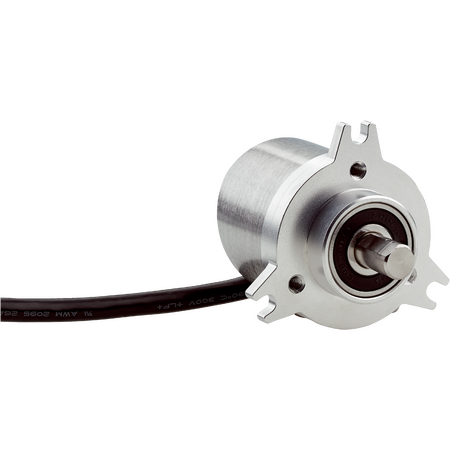

Product Name/Title: DBS50E-SKEK01024 | Incremental encoders
Brand: SICK
SKU: 1123627
Alternatively Known As: Incremental rotary encoder, rotary position sensor, shaft encoder, industrial encoder
Technical Specifications
- Pulses per revolution: 1024
- Measuring step: 90° electric/pulses per revolution
- Measuring step deviation: ±18° per pulse
- Error limits: ±54° per pulse
- Duty cycle: ≤ 0.5 ± 5%
- Communication interface: Incremental HTL / Push pull
- Number of signal channels: 6
- Initialization time: < 3 ms
- Output frequency: ≤ 300 kHz
- Load current: ≤ 30 mA
- Power consumption: < 0.5 W (without load)
- Connection type: Cable, 8-wire, universal, 1.5 m
- Supply voltage: 7 to 30 V
- Reference signal: 1, positioned at 90°, logically gated with A and B
- Reverse polarity protection: Yes
- Short-circuit protection: Yes
- Mechanical design: Solid shaft, face mount flange with 3xM4 screws
- Shaft diameter: 8 mm with flat
- Shaft length: 13 mm
- Shaft material: Stainless steel
- Flange and housing material: Aluminum
- Cable material: PVC
- Start up torque: 0.9 Ncm at 20°C
- Operating torque: 0.6 Ncm at 20°C
- Permissible shaft loading: 30 N axial, 50 N radial
- Operating speed: 6,000 min⁻¹
- Maximum operating speed: 8,000 min⁻¹
- Moment of inertia of rotor: 0.65 gcm²
- Bearing lifetime: 2 x 10^9 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC: Compliant with EN 61000-6-2 and EN 61000-6-3 (class A)
- Enclosure rating: IP65
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: -20°C to +85°C (extended range on request)
- Storage temperature range: -40°C to +100°C
- Shock resistance: 100 g, 6 ms
- Vibration resistance: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 50mm x 70mm x 50mm
- Weight: 0.18 kg
Key Features
- Incremental encoder with 1024 pulses per revolution
- 6-channel HTL / Push pull communication interface
- Solid shaft with 8 mm diameter and flat
- High mechanical durability with bearing lifetime of 2 x 10^9 revolutions
- IP65 rated enclosure for dust and water resistance
- Operating temperature range from -20°C to +85°C
- Reverse polarity and short-circuit protection
- Low power consumption below 0.5 W
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and calibration.
Applications
- Industrial automation for precise position and speed measurement
- Robotics and conveyor systems requiring accurate feedback
- Machine tools and packaging machinery
- General motion control applications
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption reduces energy usage
- Durable design minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK DBS50E-SKEK01024 incremental encoder is available for immediate purchase, ideal for industrial automation and precise motion control applications.
