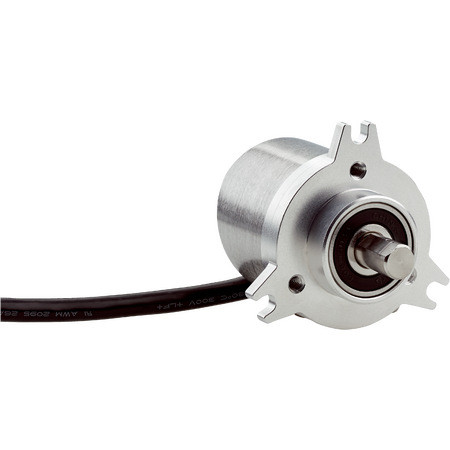

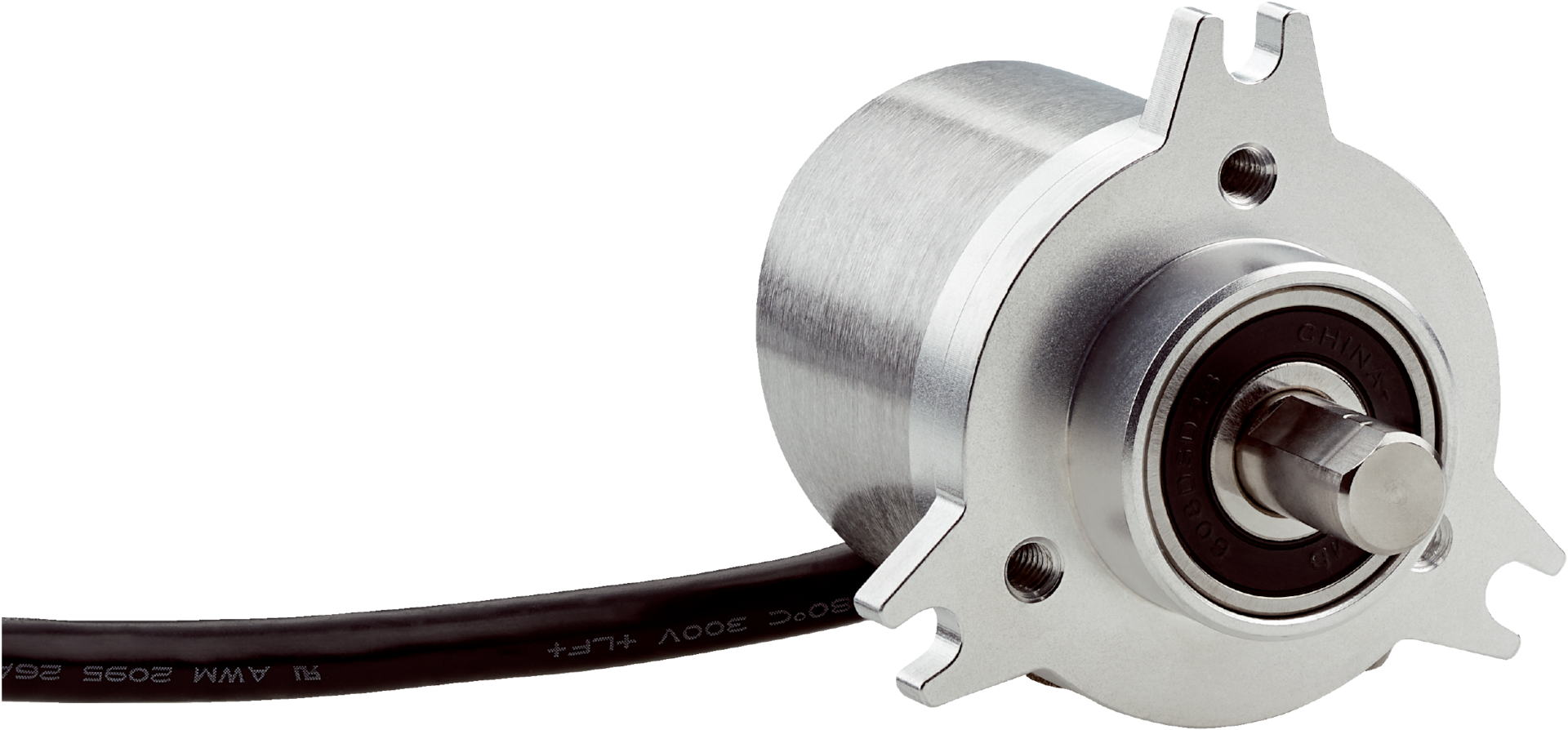

DBS50E-SKRJ00010 Incremental encoders

BRAND: SICK
SKU: 1112026
$674.10 List price: $847.20
+ −
30 Days Return Electricians Unlock Trade Access
The SICK DBS50E-SKRJ00010 is a robust incremental encoder featuring 10 pulses per revolution, solid shaft design, and IP65 protection

Product Name/Title: DBS50E-SKRJ00010 | Incremental encoders

Brand: SICK

SKU: 1112026

Alternatively Known As: Incremental rotary encoder, rotary position sensor, shaft encoder, industrial encoder

Technical Specifications
  • Pulses per revolution: 10
  • Measuring step: 90° electric/pulses per revolution
  • Measuring step deviation: ±18° per pulse
  • Error limits: ±54° per pulse
  • Duty cycle: ≤ 0.5 ± 5%
  • Communication interface: Incremental, open collector
  • Number of signal channels: 3
  • Initialization time: < 3 ms
  • Output frequency: ≤ 300 kHz
  • Load current: ≤ 30 mA
  • Power consumption: < 0.5 W (without load)
  • Connection type: Cable, 5-wire, 0.5 m
  • Supply voltage: 4.5 to 30 V
  • Reference signal: 1, positioned at 90° electric, logically gated with A and B
  • Reverse polarity protection: Yes
  • Short-circuit protection: Yes
  • Mechanical design: Solid shaft, face mount flange with 3xM4 screws
  • Shaft diameter: 8 mm with flat
  • Shaft length: 13 mm
  • Shaft material: Stainless steel
  • Flange material: Aluminum
  • Housing material: Aluminum
  • Cable material: PVC
  • Start up torque: 0.9 Ncm at 20°C
  • Operating torque: 0.6 Ncm at 20°C
  • Permissible shaft loading: 30 N axial, 50 N radial
  • Operating speed: 6,000 min⁻¹
  • Maximum operating speed: 8,000 min⁻¹
  • Moment of inertia of rotor: 0.65 gcm²
  • Bearing lifetime: 2 x 10^9 revolutions
  • Angular acceleration: ≤ 500,000 rad/s²
  • EMC: Compliant with EN 61000-6-2 and EN 61000-6-3 (class A)
  • Enclosure rating: IP65
  • Permissible relative humidity: 90% (no condensation)
  • Operating temperature range: -20°C to +85°C (extended range on request)
  • Storage temperature range: -40°C to +100°C
  • Shock resistance: 100 g, 6 ms
  • Vibration resistance: 20 g, 10 Hz to 2000 Hz
  • Dimensions (H x L x W): 50mm x 70mm x 50mm
  • Weight: 0.18 kg
Key Features
  • Incremental communication interface with open collector output
  • 3 signal channels with 10 pulses per revolution
  • High operating speed up to 8,000 min⁻¹
  • Robust mechanical design with solid shaft and face mount flange
  • IP65 rated enclosure for protection against dust and water
  • Reverse polarity and short-circuit protection
  • Low power consumption below 0.5 W
Professional Installation Requirements
  • Installation should be performed by a qualified technician or electrician to ensure proper wiring, mounting, and compliance with safety standards.
Applications
  • Industrial automation for position and speed sensing
  • Robotics and conveyor systems
  • Machine tool feedback
  • Motion control systems
Standards & Compliance
  • AS/NZS 3000 – Wiring Rules (Electrical Installation)
  • AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
  • Low power consumption reduces energy usage
  • Durable materials and design extend product lifespan, reducing waste
Warranty Information

Standard manufacturer warranty applies; please refer to SICK for specific terms and conditions.

Available Now

The SICK DBS50E-SKRJ00010 Incremental Encoder is available for immediate purchase, ideal for industrial automation and motion control applications.
