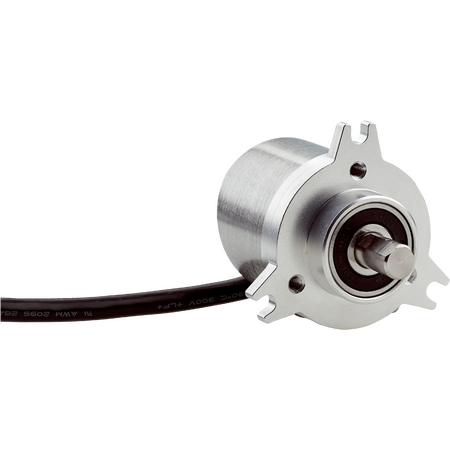

DBS50E-SKRJ00500 | Incremental encoders
The SICK DBS50E-SKRJ00500 is a robust incremental encoder featuring 500 pulses per revolution, designed for precise position and speed measurement in industrial applications with high durability and protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: DBS50E-SKRJ00500 | Incremental encoders
Brand: SICK
SKU: 1111138
Alternatively Known As: Incremental rotary encoder, shaft encoder, position encoder, pulse encoder
Technical Specifications
- Pulses per revolution: 500
- Measuring step: 90° electric/pulses per revolution
- Measuring step deviation: ±18° per pulse
- Error limits: ±54° per pulse
- Duty cycle: ≤ 0.5 ± 5%
- Communication interface: Incremental, Open Collector
- Number of signal channels: 3
- Initialization time: < 3 ms
- Output frequency: ≤ 300 kHz
- Load current: ≤ 30 mA
- Power consumption: < 0.5 W (without load)
- Connection type: Cable, 5-wire, 0.5 m
- Supply voltage: 4.5 to 30 V
- Shaft diameter: 8 mm with flat
- Shaft length: 13 mm
- Start up torque: 0.9 Ncm at 20°C
- Operating torque: 0.6 Ncm at 20°C
- Permissible shaft loading: 30 N axial, 50 N radial
- Operating speed: 6,000 min⁻¹ (max 8,000 min⁻¹)
- Moment of inertia of rotor: 0.65 gcm²
- Bearing lifetime: 2 x 10^9 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC: EN 61000-6-2 and EN 61000-6-3 (class A)
- Enclosure rating: IP65
- Operating temperature range: -20°C to +85°C (extended range on request)
- Storage temperature range: -40°C to +100°C
- Shock resistance: 100 g, 6 ms
- Vibration resistance: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 50mm x 70mm x 50mm
- Weight: 0.18 kg
Key Features
- Incremental encoder with 500 pulses per revolution
- Solid shaft with face mount flange design
- High operating speed up to 8,000 min⁻¹
- Robust aluminum housing with IP65 enclosure rating
- Reverse polarity and short-circuit protection
- Low power consumption below 0.5 W
- Cable connection with 5-wire universal 0.5 m length
- High resistance to shock (100 g) and vibration (20 g)
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and operation.
Applications
- Industrial automation and control systems
- Position and speed measurement in machinery
- Robotics and conveyor systems
- Motor feedback and control
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption reduces energy usage
- Durable design minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms and conditions.
Available Now
The SICK DBS50E-SKRJ00500 Incremental Encoder is available for immediate purchase, ideal for industrial automation and control applications.
