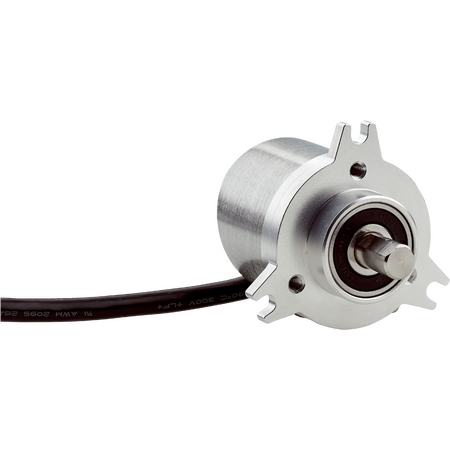

DBS50E-SKRJ01024 | Incremental encoders
The SICK DBS50E-SKRJ01024 is a robust incremental encoder offering 1024 pulses per revolution, designed for precise position and speed measurement in industrial applications with high durability and IP65 protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: DBS50E-SKRJ01024 | Incremental encoders
Brand: SICK
SKU: 1109482
Alternatively Known As: Incremental rotary encoder, shaft encoder, rotary position sensor, pulse encoder
Technical Specifications
- Pulses per revolution: 1024
- Measuring step: 90° electric/pulses per revolution
- Measuring step deviation: ±18° per pulse
- Error limits: ±54° per pulse
- Duty cycle: ≤ 0.5 ± 5%
- Communication interface: Incremental, Open Collector
- Number of signal channels: 3
- Initialization time: < 3 ms
- Output frequency: ≤ 300 kHz
- Load current: ≤ 30 mA
- Power consumption: < 0.5 W (without load)
- Connection type: Cable, 5-wire, 0.5 m
- Supply voltage: 4.5 to 30 V
- Reference signal: 1, positioned at 90° electric
- Reverse polarity protection: Yes
- Short-circuit protection: Yes
- Mechanical design: Solid shaft, face mount flange with 3xM4 screws
- Shaft diameter: 8 mm with flat
- Shaft length: 13 mm
- Shaft material: Stainless steel
- Flange and housing material: Aluminum
- Cable material: PVC
- Start up torque: 0.9 Ncm at 20°C
- Operating torque: 0.6 Ncm at 20°C
- Permissible shaft loading: 30 N axial, 50 N radial
- Operating speed: 6000 min⁻¹
- Maximum operating speed: 8000 min⁻¹
- Moment of inertia of rotor: 0.65 gcm²
- Bearing lifetime: 2 x 10^9 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC compliance: EN 61000-6-2 and EN 61000-6-3 (class A)
- Enclosure rating: IP65
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: -20°C to +85°C (extended range on request)
- Storage temperature range: -40°C to +100°C
- Shock resistance: 100 g, 6 ms
- Vibration resistance: 20 g, 10 Hz to 2000 Hz
- Dimensions (H x L x W): 50mm x 50mm x 50mm
- Weight: 0.18 kg
Key Features
- Incremental encoder with 1024 pulses per revolution
- Solid shaft with face mount flange design
- High mechanical durability with stainless steel shaft and aluminum housing
- IP65 rated enclosure for protection against dust and water
- Reverse polarity and short-circuit protection
- Operating temperature range from -20°C to +85°C
- High maximum operating speed up to 8000 min⁻¹
- Low power consumption below 0.5 W
