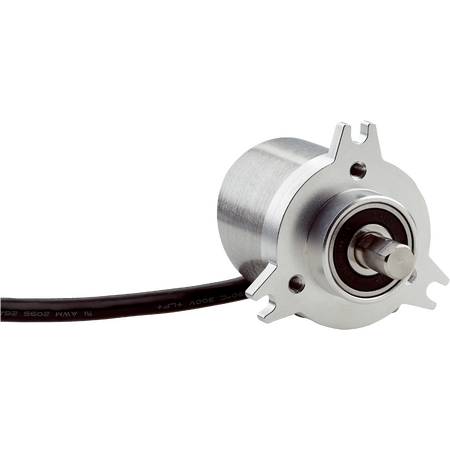

DBS50E-SKRJ02000 | Incremental encoders
The SICK DBS50E-SKRJ02000 is a high-performance incremental encoder offering 2,000 pulses per revolution, designed for industrial automation and precise motion control applications with robust construction and reliable signal output.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: DBS50E-SKRJ02000 | Incremental encoders
Brand: SICK
SKU: 1109498
Alternatively Known As: Incremental rotary encoder, incremental shaft encoder, position encoder, rotary pulse encoder
Technical Specifications
- Pulses per revolution: 2,000
- Measuring step: 90° electric per pulse
- Measuring step deviation: ±18° per pulse
- Error limits: ±54° per pulse
- Duty cycle: ≤ 0.5 ± 5%
- Communication interface: Incremental, Open Collector
- Number of signal channels: 3
- Initialization time: < 3 ms
- Output frequency: ≤ 300 kHz
- Load current: ≤ 30 mA
- Power consumption: < 0.5 W (without load)
- Connection type: 5-wire cable, 0.5 m length
- Supply voltage: 4.5 to 30 V
- Reference signal: 1, positioned at 90° electric, logically gated with A and B
- Reverse polarity protection: Yes
- Short-circuit protection: Yes

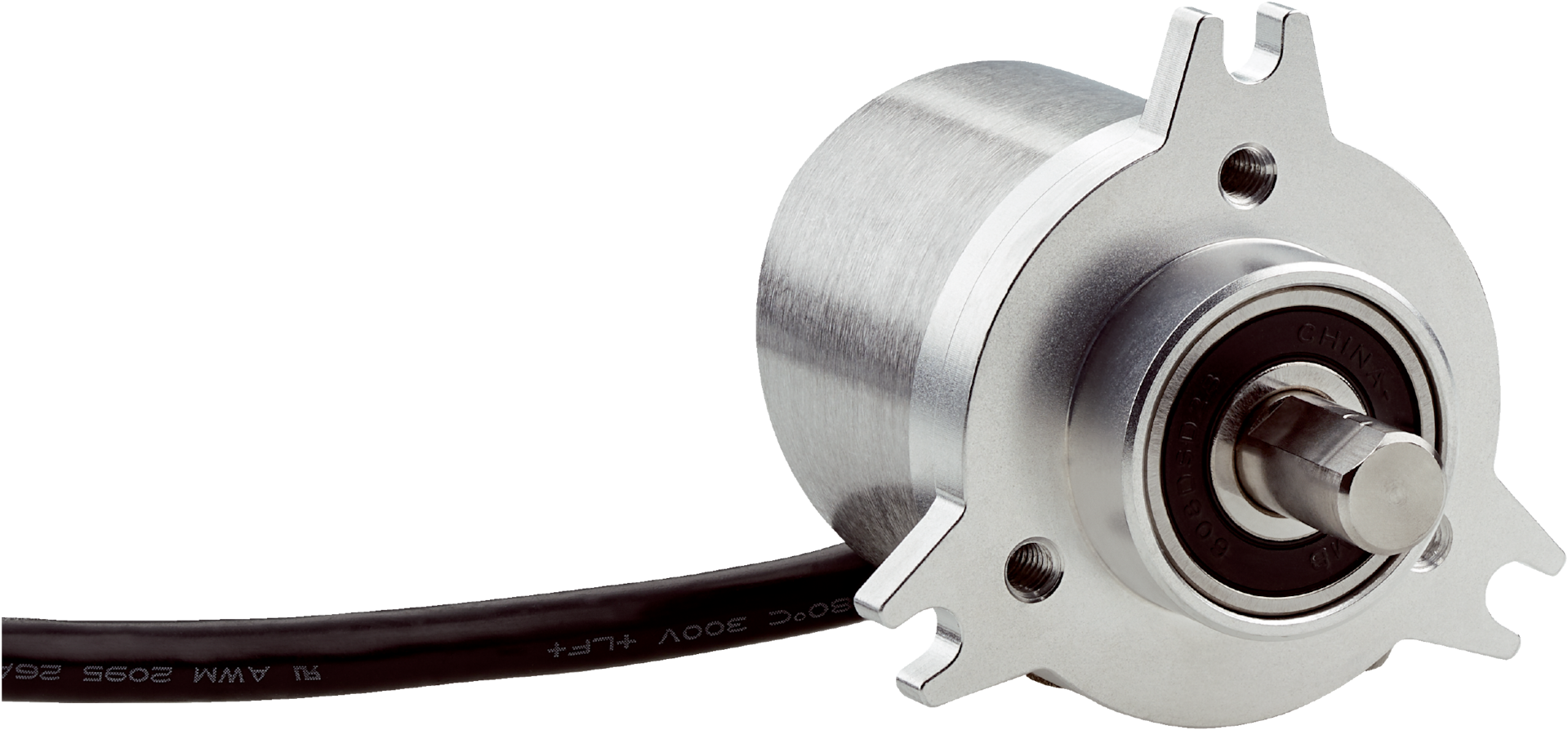

- Mechanical design: Solid shaft, face mount flange with 3xM4 screws
- Shaft diameter: 8 mm with flat
- Shaft length: 13 mm
- Shaft material: Stainless steel
- Flange and housing material: Aluminum
- Cable material: PVC
- Start up torque: 0.9 Ncm at 20°C
- Operating torque: 0.6 Ncm at 20°C
- Permissible shaft loading: 30 N axial, 50 N radial
- Operating speed: 6,000 min⁻¹
- Maximum operating speed: 8,000 min⁻¹
- Moment of inertia of rotor: 0.65 gcm²
- Bearing lifetime: 2 x 10^9 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC compliance: EN 61000-6-2 and EN 61000-6-3 (class A)
- Enclosure rating: IP65
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: -20°C to +85°C (extended range on request)
- Storage temperature range: -40°C to +100°C
- Shock resistance: 100 g, 6 ms
- Vibration resistance: 20 g, 10 Hz to 2000 Hz
- Dimensions (H x L x W): 50mm x 70mm x 50mm
- Weight: 0.18 kg
Key Features
- High resolution with 2,000 pulses per revolution
- Solid shaft with face mount flange for secure installation
- Robust aluminum housing with IP65 enclosure rating
- Wide operating temperature range from -20°C to +85°C
- Reverse polarity and short-circuit protection
- Low power consumption under 0.5 W
- High mechanical durability with bearing lifetime of 2 billion revolutions
- Fast initialization time under 3 ms
- Output frequency up to 300 kHz
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and mechanical integration of incremental encoders to ensure proper alignment and secure mounting.
Applications
- Industrial automation for precise position and speed measurement
- Robotics and motion control systems
- Conveyor and material handling systems
- Machine tool feedback and control
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption reduces energy usage in automation systems
- Durable design minimizes replacement frequency and electronic waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK DBS50E-SKRJ02000 incremental encoder is available for immediate purchase, ideal for industrial automation and precise motion control applications.
