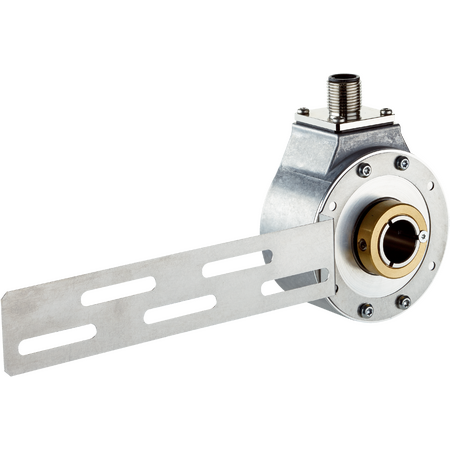

DBS60E-BDECE0050 | Incremental encoders
The SICK DBS60E-BDECE0050 is a robust incremental encoder featuring 50 pulses per revolution, designed for high precision industrial applications with durable aluminum housing and IP67 protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: DBS60E-BDECE0050 | Incremental encoders
Brand: SICK
SKU: 1132620
Alternatively Known As: Incremental rotary encoder, rotary position sensor, shaft encoder, industrial encoder, SICK DBS60 encoder
Technical Specifications
- Pulses per revolution: 50
- Measuring step: ≤ 90° electric/pulses per revolution
- Measuring step deviation: ± 18° per pulse
- Duty cycle: ≤ 0.5 ± 5%
- Communication interface: Incremental HTL / Push pull
- Number of signal channels: 6
- Initialization time: < 5 ms
- Output frequency: > 300 kHz
- Load current: ≤ 30 mA per channel
- Power consumption: ≤ 1 W (without load)
- Connection type: Male connector, M12, 8-pin, radial
- Supply voltage: 10 to 27 V
- Reference signal: 1 at 90°, logically gated with A and B
- Reverse polarity protection: Yes
- Short-circuit protection: Yes
- Mechanical design: Blind hollow shaft
- Shaft diameter: 10 mm front clamp
- Flange type: One-sided stator coupling with slots
- Shaft material: Stainless steel
- Flange and housing material: Aluminum
- Start up torque: 0.5 Ncm at 20 °C
- Operating torque: 0.4 Ncm at 20 °C
- Permissible static movement: ± 0.3 mm radial, ± 0.5 mm axial
- Permissible dynamic movement: ± 0.1 mm radial, ± 0.2 mm axial
- Operating speed: 6,000 min⁻¹
- Maximum operating speed: 9,000 min⁻¹
- Moment of inertia of rotor: 50 gcm²
- Bearing lifetime: 3.6 x 10⁹ revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC: Compliant with EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP67 housing side, IP65 shaft side
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: -20 °C to +85 °C
- Storage temperature range: -40 °C to +100 °C
- Shock resistance: 250 g, 3 ms
- Vibration resistance: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.25 kg
Key Features
- Incremental encoder with 50 pulses per revolution
- 6-channel HTL / Push pull communication interface
- Blind hollow shaft mechanical design with 10 mm shaft diameter
- High operating speed up to 9,000 min⁻¹
- Robust aluminum housing and flange with stainless steel shaft
- IP67 rated housing side and IP65 shaft side for dust and water protection
- Reverse polarity and short-circuit protection
- Low power consumption ≤ 1 W without load
- High bearing lifetime of 3.6 x 10⁹ revolutions
- Operating temperature range from -20 °C to +85 °C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for precise position and speed measurement
- Robotics and conveyor systems requiring incremental feedback
- Machine tool control and monitoring
- Safety-related applications with high reliability requirements
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption reduces energy usage
- Durable design extends product life and reduces waste
- Compliance with RoHS ensures reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK DBS60E-BDECE0050 Incremental Encoder is available for immediate purchase, ideal for industrial automation and precision measurement applications.
