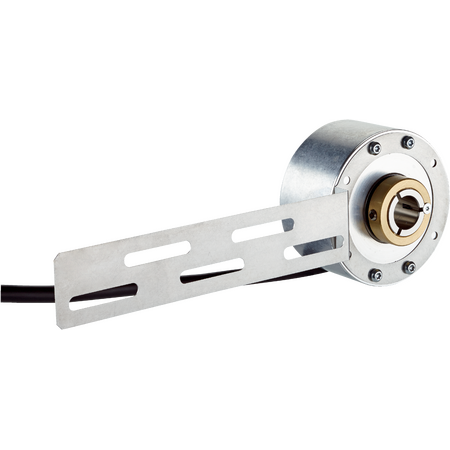

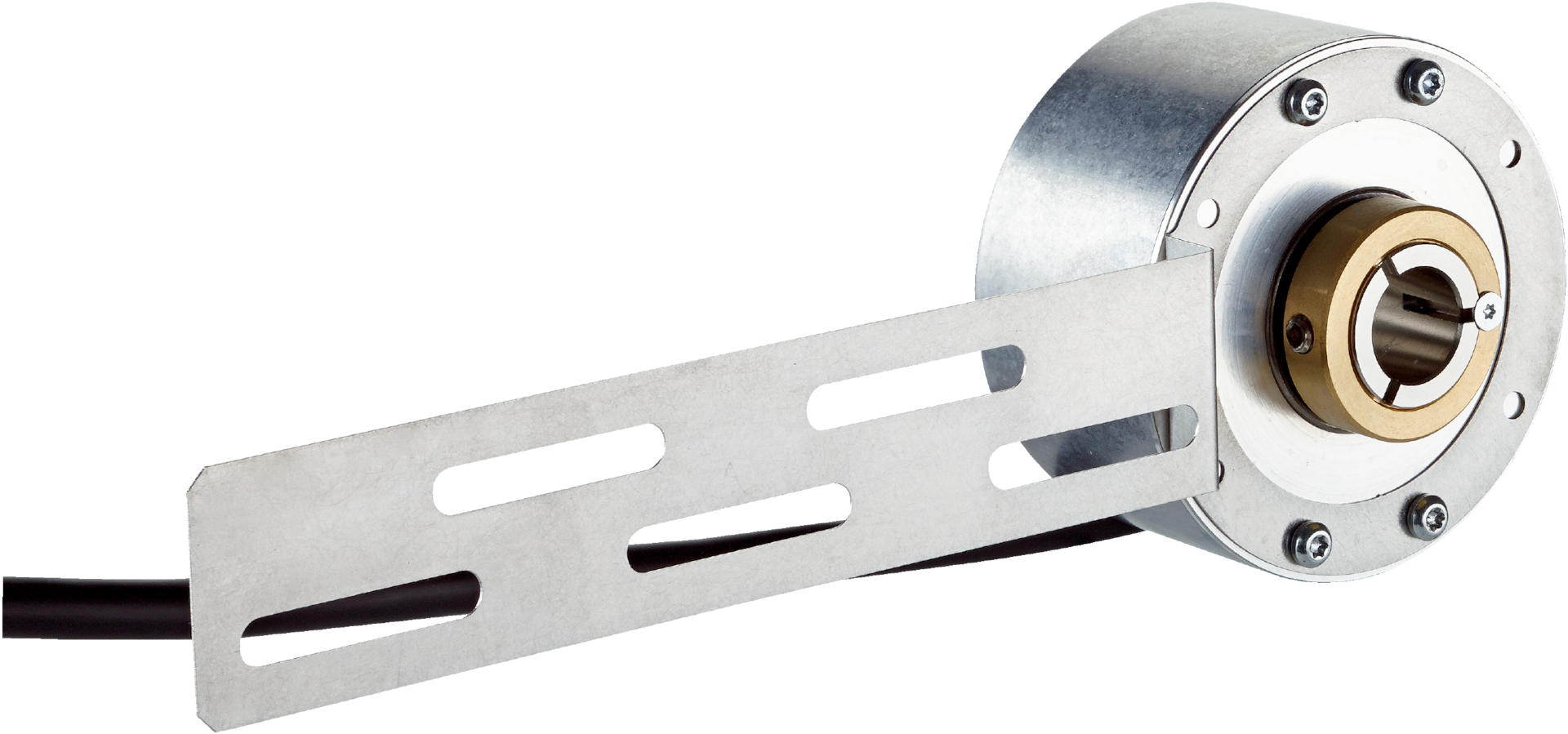

DBS60E-TEEPE0100 | Incremental encoders
The SICK DBS60E-TEEPE0100 is a high-performance incremental encoder featuring a through hollow shaft, 100 pulses per revolution, and robust IP65-rated aluminum housing, ideal for industrial automation and safety applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: DBS60E-TEEPE0100 | Incremental encoders
Brand: SICK
SKU: 1085002
Alternatively Known As: Incremental rotary encoder, Through hollow shaft encoder, HTL encoder, Industrial position sensor
Technical Specifications
- Pulses per revolution: 100
- Measuring step: ≤ 90°, electric/pulses per revolution
- Measuring step deviation: ± 18° / pulses per revolution
- Duty cycle: ≤ 0.5 ± 5 %
- Communication interface: Incremental HTL / Push pull
- Number of signal channels: 6
- Initialization time: < 5 ms
- Output frequency: > 300 kHz
- Load current: ≤ 30 mA per channel
- Power consumption: ≤ 1 W (without load)
- Connection type: Cable, 8-wire, with male M12 8-pin connector, 0.5 m
- Supply voltage: 10 to 27 V
- Reference signal: 1, positioned at 90°, logically gated with A and B
- Reverse polarity protection: Yes
- Short-circuit protection: Yes
- Mechanical design: Through hollow shaft
- Shaft diameter: 12 mm front clamp
- Flange type: One-sided stator coupling with slots
- Shaft material: Stainless steel
- Flange and housing material: Aluminum
- Cable material: PVC
- Start up torque: 0.5 Ncm at 20 °C
- Operating torque: 0.4 Ncm at 20 °C
- Permissible static movement: ± 0.3 mm radial, ± 0.5 mm axial
- Permissible dynamic movement: ± 0.1 mm radial, ± 0.2 mm axial
- Operating speed: 6,000 min⁻¹
- Maximum operating speed: 9,000 min⁻¹
- Moment of inertia of rotor: 50 gcm²
- Bearing lifetime: 3.6 x 10⁹ revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 (housing and shaft side)
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: –20 °C to +85 °C
- Storage temperature range: –40 °C to +100 °C
- Shock resistance: 250 g, 3 ms
- Vibration resistance: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 100mm x 60mm
- Weight: 0.25 kg
Key Features
- Incremental encoder with 100 pulses per revolution
- Through hollow shaft design with 12 mm shaft diameter
- 6-channel HTL / Push pull communication interface
- High operating speed up to 9,000 min⁻¹
- Robust aluminum housing and flange with stainless steel shaft
- IP65 rated enclosure for protection against dust and water
- Reverse polarity and short-circuit protection
- Low power consumption ≤ 1 W without load
- High mechanical durability with bearing lifetime of 3.6 x 10⁹ revolutions
- Operating temperature range from –20 °C to +85 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and mechanical integration of incremental encoders to ensure proper connection and alignment.
Applications
- Industrial automation for precise position and speed measurement
- Robotics and conveyor systems requiring incremental feedback
- Machine tools and packaging machinery
- Safety-related applications requiring reliable encoder signals
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption reduces energy usage in industrial systems
- Durable materials and long bearing life minimize waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK DBS60E-TEEPE0100 incremental encoder is available for immediate purchase, ideal for industrial automation and safety-related applications requiring precise position feedback.
