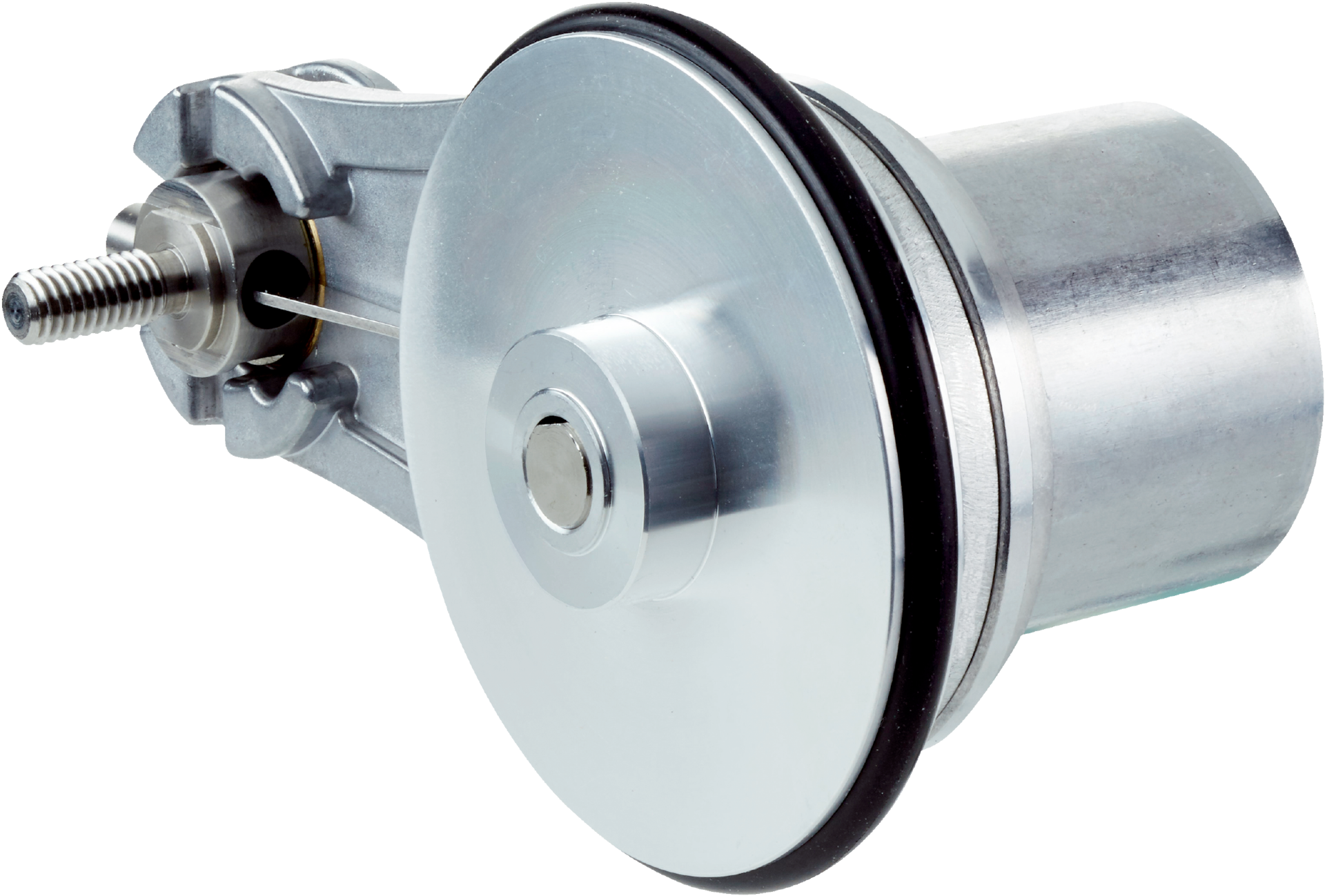

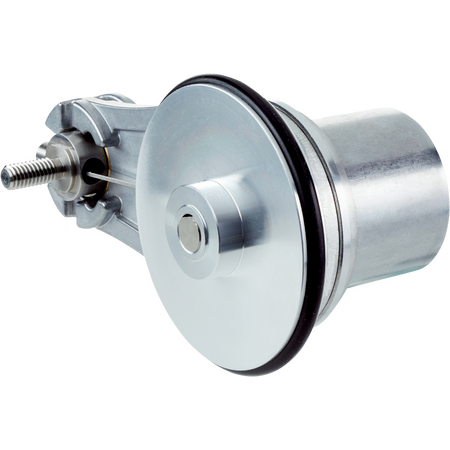

DBV50E-22GLB2000 Measuring wheel encoders

BRAND: SICK
SKU: 1085371
$595.00 List price: $747.90
+ −
30 Days Return Electricians Unlock Trade Access
The SICK DBV50E-22GLB2000 measuring wheel encoder offers high precision incremental measurement with robust construction and reliable performance for industrial and

Product Name/Title: DBV50E-22GLB2000 | Measuring wheel encoders

Brand: SICK

SKU: 1085371

Alternatively Known As: Measuring wheel encoder, incremental encoder, distance encoder, rotary encoder, SICK encoder

Technical Specifications
  • Pulses per revolution: 2,000
  • Resolution: 10 pulses/mm
  • Measuring increment: 0.1 mm per pulse
  • Measuring step deviation: ±18° per pulses per revolution
  • Error limits: ±4 mm/m depending on wheel and surface
  • Duty cycle: ≤ 0.5 ± 5%
  • Initialization time: < 3 ms
  • Communication interface: Incremental HTL / Push pull
  • Number of signal channels: 3
  • Operating power consumption: 50 mA
  • Power consumption max without load: ≤ 0.5 W
  • Supply voltage: 7 V to 27 V
  • Load current max: 30 mA
  • Maximum output frequency: ≤ 300 kHz
  • Reference signal: 1, positioned 90° electric, logically gated with A and B
  • Reverse polarity protection: Yes
  • Short-circuit protection of outputs: Yes
  • Measuring wheel circumference: 200 mm
  • Measuring wheel surface: O-ring NBR70
  • Spring arm length: 63.5 mm, single wheel on right side
  • Materials: Shaft stainless steel, flange aluminum, housing aluminum, cable PVC
  • Start up torque: 0.9 Ncm at 20°C
  • Operating torque: 0.6 Ncm at 20°C
  • Operating speed: 1,500 min⁻¹
  • Maximum operating speed: 3,000 min⁻¹
  • Bearing lifetime: 2.0 x 10^9 revolutions
  • Maximum spring arm deflection: 14 mm at 14 N
  • Recommended pretension: 15 N at 10 mm deflection
  • Max permissible spring working area: ±3 mm
  • Recommended spring deflection: 2 mm to 13 mm
  • Spring element service life: > 1.4 million cycles
  • Mounting position: Preferably from above, from below possible
  • EMC: EN 61000-6-2 and EN 61000-6-3 (class A)
  • Enclosure rating: IP65
  • Permissible relative humidity: 90% (no condensation)
  • Operating temperature range: -20°C to +70°C
  • Storage temperature range: -40°C to +100°C
  • Shock resistance: 100 g, 6 ms
  • Vibration resistance: 20 g, 10 Hz to 2000 Hz
  • Dimensions (H x L x W): 100mm x 150mm x 70mm
  • Weight: 0.3 kg
Key Features
  • High resolution with 2,000 pulses per revolution
  • Measuring increment of 0.1 mm per pulse
  • Robust aluminum housing with IP65 enclosure rating
  • Operating temperature range from -20°C to +70°C
  • Reverse polarity and short-circuit protection
  • Spring arm design with 63.5 mm arm and single measuring wheel
  • Low power consumption of ≤ 0.5 W
  • High maximum output frequency up to 300 kHz
  • Durable bearing lifetime of 2.0 x 10^9 revolutions
Professional Installation Requirements
  • Installation should be performed by qualified personnel familiar with incremental encoders and electrical wiring standards to ensure proper setup and safety.
Applications
  • Industrial automation for precise distance measurement
  • Conveyor belt speed and position monitoring
  • Mobile machinery and vehicle distance tracking
  • Robotics and material handling systems
Standards & Compliance
  • AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Low power consumption reduces energy usage
  • Durable materials and long service life minimize waste
  • Compliance with China RoHS supports environmental safety
Warranty Information

Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.

Available Now

The SICK DBV50E-22GLB2000 measuring wheel encoder is available for immediate purchase, ideal for industrial automation and precise distance measurement applications.
