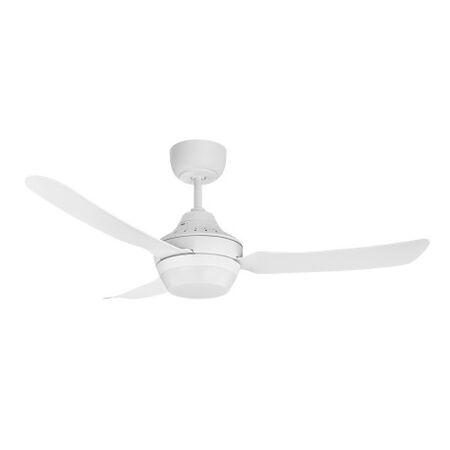

DC Ceiling Fan 1200mm 3 Blade 2x B22 Light White Ventair
Ventair Stanza DC 1200mm 3-blade ceiling fan with 2x B22 lamp holders (globes not included), DC motor and 3-speed wall control. For indoor and covered outdoor areas.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Ventair Stanza DC 48-inch Ceiling Fan, White DC Ceiling Fan with B22 Lamp Holders, STADC1203WH-L
Technical Specifications
- Model Number: STADC1203WH-L
- Motor Type: DC
- Motor Power: 4.5W low to 20W high
- Air Delivery: Up to 12,300m³/h
- Speed Range: 100–200 RPM
- Blade Count: 3
- Blade Material: Glass fibre composite
- Sweep Size: 1200mm
- Overall Size: 1220mm (48 inch)
- Lamp Holders: 2 x B22
- Maximum Lamp Load: 2 x 7W, 14W total
- Control: 3-speed wall control included
- Optional Control: Six-speed Vario remote with timer function
- Reverse Mode: Available via optional remote control
- Power Input: 240V, 50Hz
- Maximum Mount Angle: 18°
- Suitable Location: Indoor and covered outdoor areas
- Dimensions (H x L x W): 375mm x 1220mm x 1220mm
- Weight: 5 kg
Key Features
- Energy-efficient DC motor technology
- Three precision-moulded glass fibre composite blades
- Two B22 lamp holders with globes not included
- Three-speed wall control included
- Optional six-speed remote control with timer function
- Low-noise operation suitable for bedrooms and living areas
- Suitable for indoor, covered outdoor and commercial applications
- Individually balance-tested blade set
- Reverse function available via optional remote control
Professional Installation Requirements
- Installation must be performed by a qualified and licensed electrician in accordance with the manufacturer's instructions and AS/NZS 3000 Wiring Rules. Install only in adequately covered outdoor locations protected from moisture, dust and corrosive exposure.
Applications
- Bedrooms and living areas
- Indoor residential rooms
- Covered patios and verandahs
- Commercial indoor areas
- Supplementary air circulation in HVAC applications
Standards & Compliance
- AS/NZS 60335.2.80 for the safety of electric fans
- AS/NZS 3000 Wiring Rules for electrical installation
Environmental Benefits
- Low-power DC motor can reduce electricity consumption compared with conventional AC ceiling fans
- Efficient air circulation can support reduced reliance on air conditioning
- Durable glass fibre composite blades are designed for extended service life, reducing replacement waste
Warranty Information
Four-year warranty comprising two years of in-home warranty service followed by two years of motor replacement warranty, subject to Ventair terms and installation requirements. Commercial use is covered for a maximum of one year.
Available Now
Available through authorised Ventair distributors in Australia.
