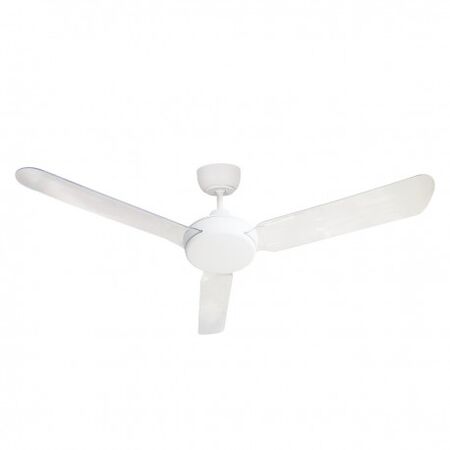

DC Ceiling Fan 1200mm 3 Blade 3 Speed Clear Ventair
Ventair Stanza DC 1200mm 3-blade ceiling fan with clear blades, energy-efficient DC motor and 3-speed wall control. For indoor and covered outdoor areas.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Ventair Stanza DC Clear Blade Ceiling Fan, Ventair 48-Inch DC Ceiling Fan, STADC1203CL
Technical Specifications
- Model: STADC1203CL
- Motor Type: DC
- Motor Power: 4.5W low to 20W high
- Maximum Air Delivery: 12,300m³/h
- Speed Range: 100 to 200rpm
- Blade Count: 3
- Blade Material: Clear polycarbonate composite
- Sweep Size: 1200mm
- Overall Fan Size: 1220mm or 48 inches
- Control: 3-speed wall control included
- Optional Remote: Vario SDCRC six-speed remote with timer function
- Reverse Mode: Available via optional remote
- Mount Angle: 0 to 18 degrees
- Power Input: 240V
- Noise Level: Low-noise operation
- Dimensions (H x L x W): 343mm x 1220mm x 1220mm
- Weight: 4.83 kg
Key Features
- Energy-efficient DC motor technology
- Three precision-moulded clear blades
- Low-noise operation for bedrooms and living areas
- Three-speed wall control included
- Optional six-speed remote control with timer function
- Reverse mode available with optional remote
- Suitable for indoor areas
- Designed for qualified electrical installation
Professional Installation Requirements
- Installation must be performed by a qualified and licensed electrician in accordance with applicable Australian electrical installation requirements, including AS/NZS 3000. Ensure suitable support, isolation and clearance above the finished floor are provided as specified in the installation instructions.
Applications
- Bedrooms
- Living rooms and family rooms
- Indoor residential areas
- Covered commercial and light-commercial areas where permitted by the product instructions
Standards & Compliance
- AS/NZS 60335.2.80:2025 household and similar electrical appliances safety requirements for fans
- AS/NZS 3000 Australian and New Zealand Wiring Rules for electrical installation
Environmental Benefits
- Low-power DC motor operation from 4.5W to 20W can reduce electricity consumption compared with conventional AC fan motors
- Efficient air circulation can support passive cooling and reduce reliance on air conditioning
- Durable composite blades can extend product service life and reduce replacement waste
Warranty Information
Four-year warranty comprising two years of in-home warranty service and an additional two-year motor replacement warranty. Commercial use is covered for one year. Installation by a qualified electrician and compliance with Ventair warranty conditions are required.
Available Now
Available through authorised Ventair distributors in Australia.
