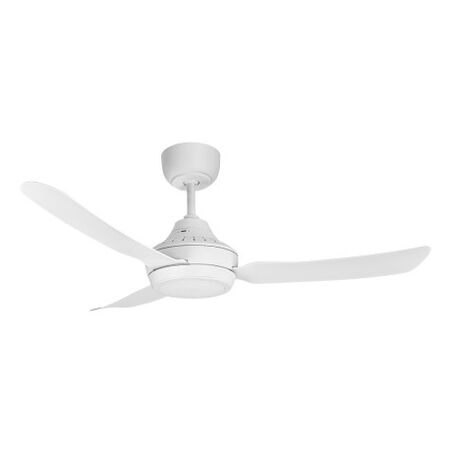

DC Ceiling Fan 1200mm 3 Blade LED 4000K White Ventair
Ventair Stanza DC 1200mm 3-blade ceiling fan with 4000K natural white LED light, DC motor and 3-speed wall control. Ideal for indoor and covered outdoor areas.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Ventair Stanza DC 48-inch LED Ceiling Fan, White DC Ceiling Fan, STADC1203WH-LED
Technical Specifications
- Model Number: STADC1203WH-LED
- Motor Type: DC
- Motor Wattage: 4.5W low to 20W high
- Power Input: 240V, 50Hz
- Air Delivery: Up to 12,300m³/h
- Speed Settings: 100, 120, 140, 160, 180 and 200 RPM
- Blade Count: 3
- Blade Material: Glass fibre composite
- Sweep Size: 1200mm
- Overall Size: 1220mm, 48 inches
- LED Type: Integrated slimline LED
- LED Wattage: 20W
- LED Output: 1842 lumens
- Light Colour: 4000K natural white
- Light Control: Step dimmable
- Fan Control: 3-speed wall control included
- Remote Compatibility: Vario SDCRC optional remote
- Reverse Function: Available via optional remote
- Maximum Mount Angle: 0–18°
- Ingress Protection: Not rated for direct weather exposure
- Dimensions (H x L x W): 375mm x 1220mm x 1220mm
- Weight: 5 kg
Key Features
- Energy-efficient DC motor technology
- Integrated 20W slimline LED light in 4000K natural white
- Three precision-moulded glass fibre composite blades
- Maximum air delivery of 12,300m³/h
- Low-noise operation suitable for bedrooms and living areas
- 3-speed wall controller included
- Optional 6-speed Vario remote with timer function
- Reverse operation available through the optional remote
- Suitable for indoor and covered outdoor areas
- White finish for residential and light commercial interiors
Professional Installation Requirements
- Installation must be performed by a qualified and licensed electrician in accordance with the manufacturer's instructions and applicable Australian wiring requirements. Install only in indoor or covered outdoor locations protected from direct water, excessive wind, dust and corrosive conditions.
Applications
- Bedrooms and sleeping areas
- Living rooms and family rooms
- Dining and kitchen areas
- Offices and commercial interiors
- Covered patios, alfresco areas and verandahs
Standards & Compliance
- AS/NZS 60335.2.80:2025 – applicable safety requirements for household and similar electric fans
- AS/NZS 3000:2018 – requirements for fixed electrical installation and wiring
Environmental Benefits
- DC motor technology can reduce operating energy consumption compared with conventional AC fan motors
- Efficient 20W integrated LED lighting reduces lighting energy use compared with higher-wattage lamp alternatives
- Durable glass fibre composite blades support extended service life and reduce replacement waste
- Air movement can improve comfort and reduce reliance on air conditioning in suitable conditions
Warranty Information
4-year limited warranty comprising 2 years of in-home coverage plus an additional 2-year motor replacement warranty. Commercial applications are covered for 1 year. Warranty conditions require installation by a qualified electrician; LED component coverage may be subject to separate terms.
Available Now
Available through authorised Ventair distributors in Australia.
Ceiling Fan Sizing Calculator
This calculator uses typical airflow recommendations. Users must verify results according to AS/NZS 3000:2018 and specific manufacturer specs.
