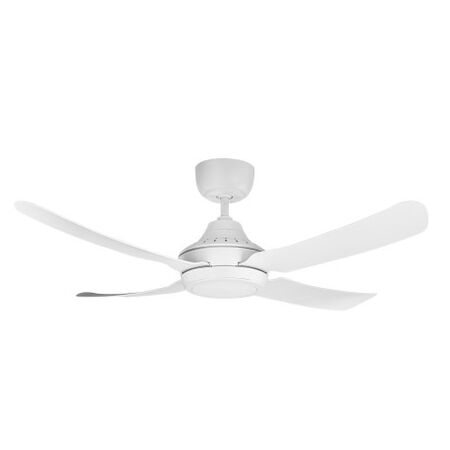

DC Ceiling Fan 1200mm 4 Blade 20W Tri Colour LED White Ventair

BRAND: Ventair
SKU: SON1204WH-L
$263.60 List price: $351.50
Free pick up (over 25 kg or over 1 meter)
Contact us for delivery cost
30 Days Return Electricians Unlock Trade Access
Ventair Sonnet DC 1200mm 4-blade ceiling fan with 20W tri-colour LED light, DC motor and 3-speed wall control. Suited to indoor and covered outdoor areas.

Alternatively Known As: Ventair Sonnet DC 48-inch Ceiling Fan, 1200mm DC Ceiling Fan with LED Light, SON1204WH-L

Technical Specifications
  • Model Number: SON1204WH-L
  • Colour: White
  • Motor Type: DC
  • Motor Power: 5W low, 8W medium, 25W high
  • Speed: 100, 140 and 200 RPM
  • Air Delivery: 6,360, 8,700 and 12,600 m³/h
  • Blade Count: 4
  • Blade Material: Glass fibre composite
  • Sweep Size: 1,200mm
  • Light Type: Built-in slimline LED
  • Light Power: 20W
  • Light Output: 1,763lm warm, 1,789lm natural, 1,831lm cool
  • Colour Temperatures: 3,000K warm, 4,000K natural and 6,000K cool
  • Dimming: Step dimming
  • Control: Three-speed wall control included
  • Remote Compatibility: Vario SDCRC six-speed remote control, sold separately
  • Reverse Function: Summer and winter airflow direction
  • Maximum Mount Angle: 18°
  • Power Input: 240V, 50Hz
  • Ingress Protection: No IP rating; suitable for indoor and covered outdoor areas
  • Dimensions (H x L x W): 329mm x 1200mm x 1200mm
  • Weight: 5.27 kg
Key Features
  • Energy-efficient DC motor technology
  • Four precision-moulded glass fibre composite blades
  • Dimmable 20W LED light with warm, natural and cool colour settings
  • Reversible airflow for summer and winter operation
  • Low-profile downrod suited to lower ceilings
  • Three-speed wall control included
  • Optional Vario six-speed remote control with timer function
  • Low-noise operation suitable for bedrooms and living areas
  • Quick-connect installation wiring
Professional Installation Requirements
  • Installation must be completed by a licensed electrician in accordance with the manufacturer's instructions and AS/NZS 3000. An all-pole disconnection device must be incorporated into the fixed wiring. Ensure the blades are installed at least 2.1m above the floor and the mounting structure is suitable for the fan.
Applications
  • Bedrooms
  • Living rooms and family rooms
  • Dining areas
  • Indoor residential spaces
  • Covered outdoor areas protected from direct weather exposure
  • Suitable commercial areas including offices, retail spaces and accommodation
Standards & Compliance
  • AS/NZS 60335.2.80 – applicable safety requirements for household and similar electric fans
  • AS/NZS 3000 – Australian Wiring Rules applicable to electrical installation
Environmental Benefits
  • Energy-efficient DC motor technology can reduce operating power consumption compared with conventional AC fan motors
  • Integrated 20W LED lighting provides efficient illumination with long service life
  • Durable glass fibre composite blades can extend product service life and reduce replacement waste
  • Reversible airflow supports efficient air circulation in both summer and winter
Warranty Information

Four-year limited warranty against manufacturing defects, comprising two years parts and labour with in-home service followed by two additional years replacement warranty for the motor. The LED light carries a two-year replacement warranty. Commercial use is limited to a maximum one-year warranty.

Available Now

Available through authorised Ventair distributors in Australia.

Ceiling Fan Sizing Calculator

This calculator uses typical airflow recommendations. Users must verify results according to AS/NZS 3000:2018 and specific manufacturer specs.
