Trade Discount 25%

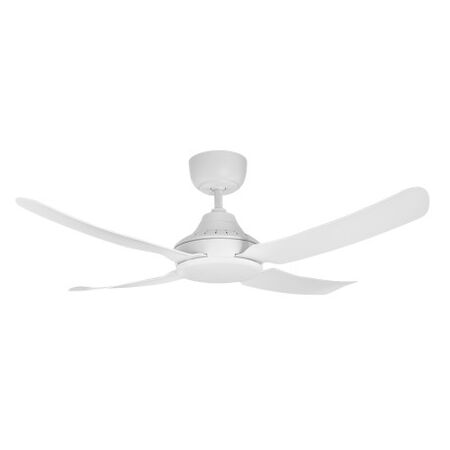

DC Ceiling Fan 1200mm 4 Blade Low Profile 3 Speed White Ventair
Ventair Sonnet DC 1200mm 4-blade low profile ceiling fan with energy-efficient DC motor and 3-speed wall control. Ideal for indoor and covered outdoor areas.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Ventair Sonnet DC 48-inch Ceiling Fan, SON1204WH, 1200mm DC Ceiling Fan, Four-Blade Low-Profile Ceiling Fan
Technical Specifications
- Model Number: SON1204WH
- Colour: White
- Motor Type: DC
- Motor Power: 5W low, 8W medium, 25W high
- Air Delivery: 6,360 / 8,700 / 12,600 m³/h
- Speed: 100 / 140 / 200 RPM via three-speed wall control
- Blade Count: 4
- Blade Material: Glass fibre composite
- Control: Three-speed wall control included
- Remote Compatibility: Vario SDCRC six-speed remote control, sold separately
- Reverse Mode: Yes, for summer and winter operation
- Maximum Mount Angle: 18°
- Power Input: 240V, 50Hz
- Ingress Protection: No IP rating; suitable for indoor and covered outdoor areas
- Included Components: Ceiling fan, hanging bracket, wall control, instruction manual and warranty card
- Dimensions (H x L x W): 295mm x 1200mm x 1200mm
- Weight: 5.1 kg
Key Features
- Energy-efficient DC motor technology
- Low-profile downrod suited to lower ceilings
- Four precision-moulded glass fibre composite blades
- Reversible airflow for summer and winter operation
- Three-speed wall control included
- Optional six-speed remote control with timer function
- Low-noise operation suited to bedrooms and living areas
- Suitable for indoor, covered outdoor and commercial applications
Professional Installation Requirements
- Installation must be completed by a qualified and licensed electrician in accordance with the manufacturer's instructions and AS/NZS 3000. The mounting structure must be suitable for the fan, and required all-pole disconnection must be incorporated into the fixed wiring.
Applications
- Bedrooms
- Living rooms and dining areas
- Small to medium-sized residential rooms
- Indoor commercial areas
- Covered outdoor areas protected from direct weather exposure
Standards & Compliance
- AS/NZS 60335.2.80:2025 – applicable safety requirements for household and similar electric fans
- AS/NZS 3000 – applicable Australian Wiring Rules for electrical installation
Environmental Benefits
- Energy-efficient DC motor uses low operating power for effective air circulation
- Efficient air movement can reduce reliance on air conditioning in suitable conditions
- Durable glass fibre composite blades can support extended service life and reduce replacement waste
- Reversible airflow supports year-round circulation and more efficient use of indoor heating
Warranty Information
Four-year limited warranty against manufacturing defects, comprising two years parts and labour with in-home service followed by two additional years replacement warranty on the motor. Commercial use is limited to a maximum one-year warranty, with no in-home service. Installation must be completed by a licensed electrical contractor and warranty conditions apply.
Available Now
Available through authorised Ventair distributors in Australia.
Ceiling Fan Sizing Calculator
This calculator uses typical airflow recommendations. Users must verify results according to AS/NZS 3000:2018 and specific manufacturer specs.
