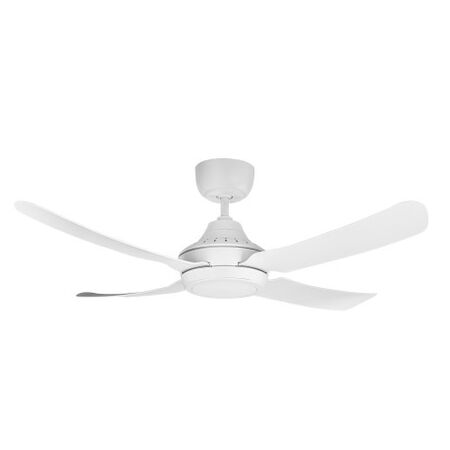

DC Ceiling Fan 1300mm 4 Blade 20W Tri Colour LED White Ventair
Ventair Sonnet DC 1300mm 4-blade ceiling fan with 20W tri-colour LED light, DC motor and 3-speed wall control. Suited to indoor and covered outdoor areas.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Ventair Sonnet DC 52-inch ceiling fan, SON1304WH-L, white DC ceiling fan with LED light
Technical Specifications
- Model Number: SON1304WH-L
- Motor Type: DC
- Motor Power: 6W low to 40W high
- Air Delivery: Up to 14,060 m³/h
- Speed: 100, 120, 140, 160, 180 and 200 RPM
- Blade Count: 4
- Blade Material: Glass fibre composite
- Light Type: Slimline LED panel
- Light Output: 1,794 lm average
- Light Power: 20W
- Colour Temperature: 3000K warm, 4000K natural and 6000K cool
- Dimming: Step dimmable
- Control: 3-speed wall control included
- Remote Control: Compatible with optional Vario SDCRC remote
- Reverse Mode: Summer and winter airflow
- Mount Angle: 0–18 degrees
- Power Input: 240V, 50Hz
- Ingress Protection: No IP rating
- Dimensions (H x L x W): 329mm x 1300mm x 1300mm
- Weight: 5.51 kg
Key Features
- Energy-efficient DC motor technology
- Four precision-moulded glass fibre composite blades
- Slimline 20W LED light with three selectable colour temperatures
- Step-dimmable lighting for adjustable brightness
- Reversible airflow for summer and winter operation
- Low-profile downrod suitable for lower ceilings
- Quiet operation suited to bedrooms and living areas
- Three-speed wall control included
- Suitable for indoor and covered outdoor areas
- Optional six-speed Vario remote with timer function available
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with the instruction manual, approved Ventair hardware and applicable wiring requirements. The fan must be adequately protected from wind, dust, water and other outdoor elements.
Applications
- Bedrooms and living areas
- Indoor residential spaces
- Covered outdoor entertaining areas
- Commercial indoor and covered outdoor applications
- Ceiling-mounted air circulation and lighting
Standards & Compliance
- AS/NZS 60335.2.80 for the safety of electric fans
- AS/NZS 3000 for electrical installation and wiring requirements
Environmental Benefits
- Energy-efficient DC motor can reduce operating power compared with conventional AC fan motors
- Integrated LED lighting provides efficient illumination with a 20W light source
- Durable glass fibre composite blades support long service life and reduce replacement waste
- Reversible airflow can support passive cooling in summer and heat distribution in winter
Warranty Information
Four-year limited warranty comprising two years of parts and labour with in-home service, followed by two years of motor replacement coverage. The LED light carries a two-year replacement warranty. Commercial use is limited to a maximum one-year warranty, subject to Ventair terms and conditions.
Available Now
Available through authorised Ventair distributors in Australia.
Ceiling Fan Sizing Calculator
This calculator uses typical airflow recommendations. Users must verify results according to AS/NZS 3000:2018 and specific manufacturer specs.
