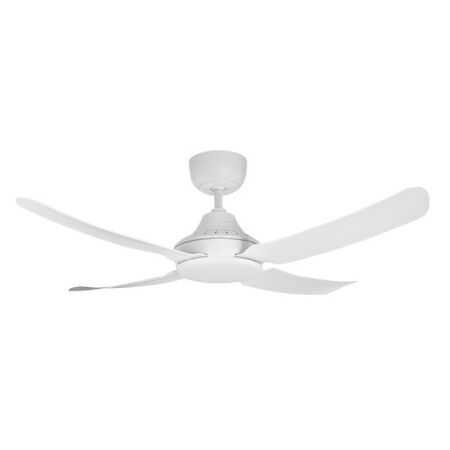

DC Ceiling Fan 1300mm 4 Blade Low Profile 3 Speed White Ventair
Ventair Sonnet DC 1300mm 4-blade low profile ceiling fan with energy-efficient DC motor and 3-speed wall control. Ideal for indoor and covered outdoor areas.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Ventair Sonnet DC 52-inch Ceiling Fan, Ventair SON1304WH, 1300mm DC Ceiling Fan
Technical Specifications
- Model: SON1304WH
- Motor Type: Energy-efficient DC motor
- Motor Power: 6W low to 40W high
- Air Delivery: Up to 14,060 m³/h
- Speed Settings: 3-speed wall control
- Operating Speed: 100–200 RPM
- Blade Count: 4
- Blade Material: Glass fibre composite
- Control: 3-speed wall control included; compatible with Vario SDCRC remote
- Rotation: Summer/winter reverse function
- Power Supply: 240V
- Mounting: Low-profile downrod
- Maximum Ceiling Angle: 18°
- Installation Clearance: Minimum 2.1m from floor to blade tips
- Suitable Location: Indoor and covered outdoor areas
- Dimensions (H x L x W): 307mm x 1320mm x 1320mm
- Weight: 6.9 kg
Key Features
- Energy-efficient DC motor with low operating power consumption
- Four balanced glass fibre composite blades
- Low-profile downrod for lower ceiling installations
- Three-speed wall control included
- Summer/winter reversible airflow
- Air delivery of up to 14,060 m³/h
- Compatible with optional Vario SDCRC remote control
- Suitable for angled ceilings up to 18°
- Designed for indoor and covered outdoor applications
Professional Installation Requirements
- Installation must be performed by a qualified and licensed electrician in accordance with AS/NZS 3000, the manufacturer's instructions and applicable electrical safety requirements. The ceiling structure must provide adequate support, the blades must remain at least 2.1m above the floor, and all-pole disconnection must be incorporated into the fixed wiring.
Applications
- Bedrooms and living areas
- Medium-sized residential rooms
- Covered outdoor entertaining areas
- Low-ceiling residential spaces
- Residential air circulation and ventilation
Standards & Compliance
- AS/NZS 60335.2.80:2025 for safety requirements applicable to household and similar electric fans
- AS/NZS 3000 for electrical installation and connection to fixed wiring
Environmental Benefits
- DC motor technology can reduce electricity consumption compared with conventional AC ceiling fans
- Efficient air circulation may reduce reliance on refrigerated air conditioning in suitable conditions
- Durable glass fibre composite blades can extend service life and reduce replacement waste
Warranty Information
Ventair ceiling fan product warranty: 3 years from the original date of purchase, subject to installation by a qualified and licensed electrician and the manufacturer's warranty terms. Commercial use is subject to a limited 3-month warranty. Wall controllers and other accessories may have separate warranty periods.
Available Now
Available through authorised Ventair distributors in Australia.
Ceiling Fan Sizing Calculator
This calculator uses typical airflow recommendations. Users must verify results according to AS/NZS 3000:2018 and specific manufacturer specs.
