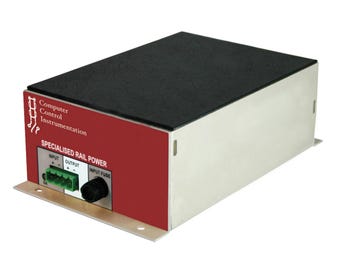

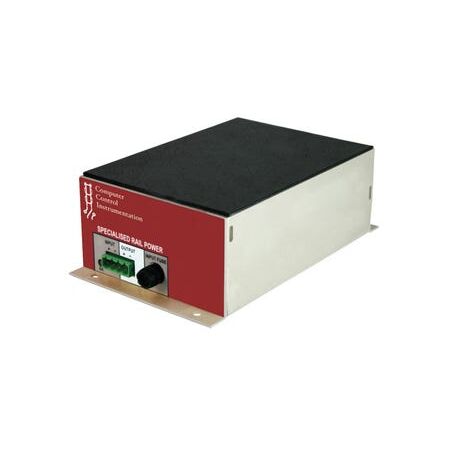

DC-DC Converter 150W 55-90V Input 13.6V 10A Output CCI

BRAND: CABAC
SKU: MR150E-13V6-10A
$731.30 List price: $975.10
+ −
30 Days Return Electricians Unlock Trade Access
CCI DC-DC converter features 150W output, 55-90V DC input, and regulated 13.6V 10A output. Ideal for vehicle, rail and battery-fed equipment.

Alternatively Known As: CCI MR150E-13V6-10A DC-DC Converter, 72V Rail Power Supply, Regulated DC-DC Power Supply

Technical Specifications
  • Model: MR150E-13V6-10A
  • Rated Power: 150W
  • Input Voltage: 55–90V DC; 72V nominal
  • Input Start Voltage: Above 60V DC
  • Output Voltage: 13.6V DC ±50mV
  • Output Current: 10A
  • Output Regulation: Less than 1% for 60–90V DC input at 10A
  • Efficiency: Typically greater than 95% at full load
  • Isolation: Input-to-output 1kV minimum tested
  • Isolation: Input-to-ground 1kV minimum tested
  • Isolation: Output-to-ground 500V minimum tested
  • Ripple and Noise: Less than 50mV RMS
  • Input Protection: 4A fuse
  • Output Protection: Internal electronic protection; automatic restart after overload
  • Operating Temperature: 0°C to 60°C
  • Cooling: Fanless, with no ventilation ports required
  • Dimensions (H x L x W): 63mm x 184mm x 111mm
  • Weight: 0.95 kg
Key Features
  • Regulated and electrically isolated 13.6V DC output
  • Designed for 72V DC vehicle and locomotive electrical systems
  • Operates with restricted airflow and does not require external cooling fins
  • Fanless and fuse-less output design for improved reliability
  • Electronic overload sensing with automatic restart
  • Suitable for equipment with high surge-current demands, including lamps and motors
  • Compact enclosure for flexible mounting
Professional Installation Requirements
  • Installation should be performed by a suitably qualified vehicle, rail or electrical technician. Isolate the DC supply before connection and install in accordance with the equipment manufacturer's instructions, including suitable input protection, wiring and enclosure requirements.
Applications
  • Locomotive and rail electrical systems
  • Vehicle auxiliary power systems
  • Battery-fed communications and control equipment
  • Radio, telemetry and vigilance equipment
  • PLC, instrumentation and other industrial DC loads
  • Converting nominal 72V DC supplies to regulated 13.6V DC equipment power
Standards & Compliance
  • AS/NZS 3820: Essential safety requirements for electrical equipment, where applicable to the completed installation and EESS classification
Environmental Benefits
  • Typically greater than 95% efficiency at full load, reducing input energy losses and heat generation
  • Fanless, sealed-style construction reduces dust ingress and maintenance requirements
  • Efficient DC conversion can reduce battery energy consumption in vehicle and rail systems
  • Robust construction and overload protection can extend service life and reduce replacement waste
Warranty Information

CCI provides a two-year limited warranty to the original user against defects in materials and workmanship, subject to its terms and conditions.

Available Now

Available through CCI and authorised Australian distributors; confirm current stock and lead time before ordering.
