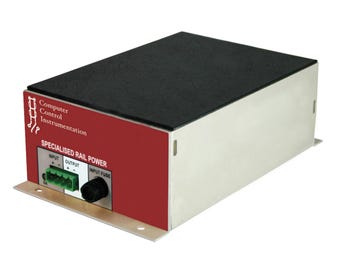

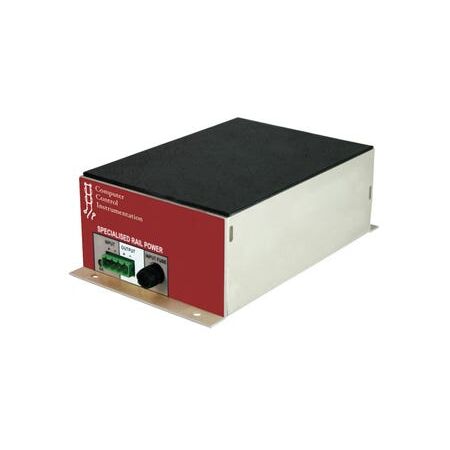

DC-DC Converter 200W 55-90V Input 13.6V 15A Output CCI

BRAND: CABAC
SKU: MR200E-13V6-15A
$1,236.30 List price: $1,648.40
+ −
30 Days Return Electricians Unlock Trade Access
CCI DC-DC converter features 200W output, 55-90V DC input, and regulated 13.6V 15A output. Ideal for vehicle, rail and battery-fed equipment.

Alternatively Known As: CCI MR200E-13V6-15A, 72V DC-DC Converter, Isolated Rail Power Supply, Locomotive DC Converter

Technical Specifications
  • Model: MR200E-13V6-15A
  • Nominal Input Voltage: 72V DC
  • Input Voltage Range: 55-90V DC
  • Minimum Start Voltage: Above 60V DC
  • Output Voltage: 13.6V DC ±50mV
  • Output Current: 15A
  • Output Power: 200W
  • Output Regulation: Less than 1% from 60-90V DC at 15A
  • Input Protection: 4A fuse
  • Output Protection: Electronic overload protection with automatic restart
  • Input-to-Output Isolation: 1kV minimum tested
  • Input-to-Ground Isolation: 1kV minimum tested
  • Output-to-Ground Isolation: 500V minimum tested
  • Ripple and Noise: Less than 50mV RMS; typically 25mV at 15A and 60-90V input
  • Efficiency: Typically greater than 95% at full load
  • Cooling: Fanless convection cooling
  • Operating Temperature: 0°C to 60°C
  • Railway Compliance: Tested and certified to relevant aspects of EN 50155
  • Dimensions (H x L x W): 63mm x 184mm x 111mm
  • Weight: 0.95 kg
Key Features
  • Regulated 13.6V output for vehicle, rail and battery-fed equipment
  • Wide 55-90V DC input range for nominal 72V rail systems
  • Galvanically isolated input and output
  • Fanless and fuse-less output design for improved reliability
  • Electronic current sensing with automatic restart after overload
  • Operates in restricted-airflow mounting positions
  • High-intensity input and output status LEDs
  • Designed for locomotive and high-vibration transport applications
Professional Installation Requirements
  • Installation should be performed by a suitably qualified electrical technician. Follow the manufacturer's wiring, earthing, protection and mounting instructions, and ensure the installation is appropriate for the vehicle or rail system.
Applications
  • Locomotive and railway electrical systems
  • Vehicle auxiliary power systems
  • Battery-fed communications equipment
  • Industrial DC control and instrumentation systems
  • Rail radios, computers, PLCs and driver-cabin equipment
  • 72V nominal battery systems requiring a regulated 13.6V supply
Environmental Benefits
  • Greater than 95% full-load efficiency reduces conversion losses and heat generation
  • Fanless convection cooling reduces auxiliary power consumption, noise and maintenance requirements
  • Electronic overload protection and robust isolation can extend service life and reduce premature replacement waste
  • Long-life rail and vehicle construction supports reduced equipment replacement frequency
Warranty Information

CCI's published warranty policy provides a two-year limited warranty to the original user against defects in materials and workmanship, subject to the manufacturer's terms and conditions.

Available Now

Available through CCI and authorised Australian distributors; confirm current stock and lead time before ordering.
