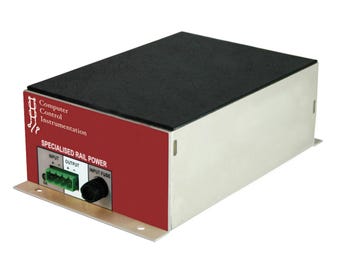

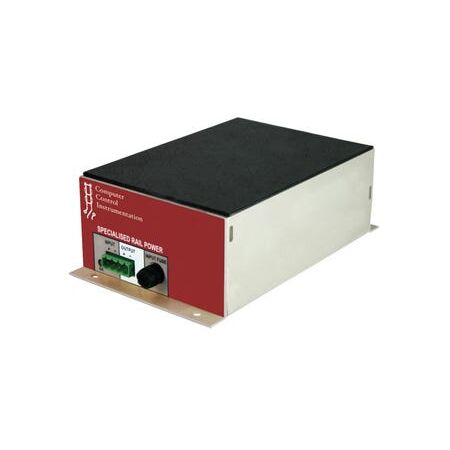

DC-DC Converter 400W 55-90V Input 13.6V 30A Output CCI

BRAND: CABAC
SKU: MR400E-13V6-30A
$4,569.10 List price: $6,092.10
+ −
30 Days Return Electricians Unlock Trade Access
CCI DC-DC converter features 400W output, 55-90V DC input, and regulated 13.6V 30A output. Ideal for vehicle, rail and battery-fed equipment.

Alternatively Known As: CCI 72V to 13.6V DC-DC Converter, CCI Rail DC-DC Power Supply, Isolated 400W DC Converter

Technical Specifications
  • Model: MR400E-13V6-30A
  • Rated Power: 400 W
  • Nominal Input Voltage: 72 V DC
  • Input Voltage Range: 55–90 V DC
  • Minimum Start Voltage: Over 60 V DC
  • Output Voltage: 13.6 V DC
  • Maximum Output Current: 30 A
  • Output Regulation: Less than 1% error at 60–90 V input and 30 A load
  • Input Fuse: 10 A
  • Output Protection: Electronic internal protection; no output fuse
  • Efficiency: Typically greater than 95% at full load
  • Isolation: 1 kV minimum input-to-output; 1 kV minimum input-to-ground; 500 V minimum output-to-ground
  • Ripple and Noise: Less than 50 mV RMS; typically 25 mV at 30 A and 60–90 V input
  • Operating Temperature: 0–60 °C
  • Cooling: Fanless design with no external fins
  • Dimensions (H x L x W): 63mm x 184mm x 111mm
  • Weight: 0.95 kg
Key Features
  • Regulated 13.6 V DC output suitable for nominal 12 V equipment
  • Wide 55–90 V DC input range for 72 V vehicle and rail systems
  • Galvanically isolated input and output
  • Electronic current sensing and internal overload protection
  • Fanless and fuse-free output design for reduced maintenance
  • Typically greater than 95% efficient at full load
  • LED indication for input voltage range and output voltage status
  • Compact enclosure suitable for restricted-airflow installations
Professional Installation Requirements
  • Installation should be performed by a suitably qualified electrical or rail technician. Select input and output cabling, circuit protection, isolation and earthing arrangements for the application and install associated wiring in accordance with applicable Australian requirements, including AS/NZS 3000 where relevant.
Applications
  • 72 V DC rail and locomotive electrical systems
  • Vehicle auxiliary power systems
  • Battery-fed communications and control equipment
  • Industrial equipment requiring an isolated 13.6 V DC supply
  • Radio, PLC, instrumentation and electronic control loads
Standards & Compliance
  • AS/NZS 3000: applicable to associated fixed-wiring installation where relevant; specific product compliance was not verified
Environmental Benefits
  • Typically greater than 95% efficiency at full load, reducing conversion losses and operating energy consumption
  • Fanless construction reduces auxiliary power use and potential maintenance waste
  • Electronic protection and robust isolated design can extend service life and reduce replacement waste
Warranty Information

CCI provides a two-year limited warranty to the original user, subject to the manufacturer's terms and conditions.

Available Now

Available through CCI and authorised Australian distributors, subject to current distributor inventory.
